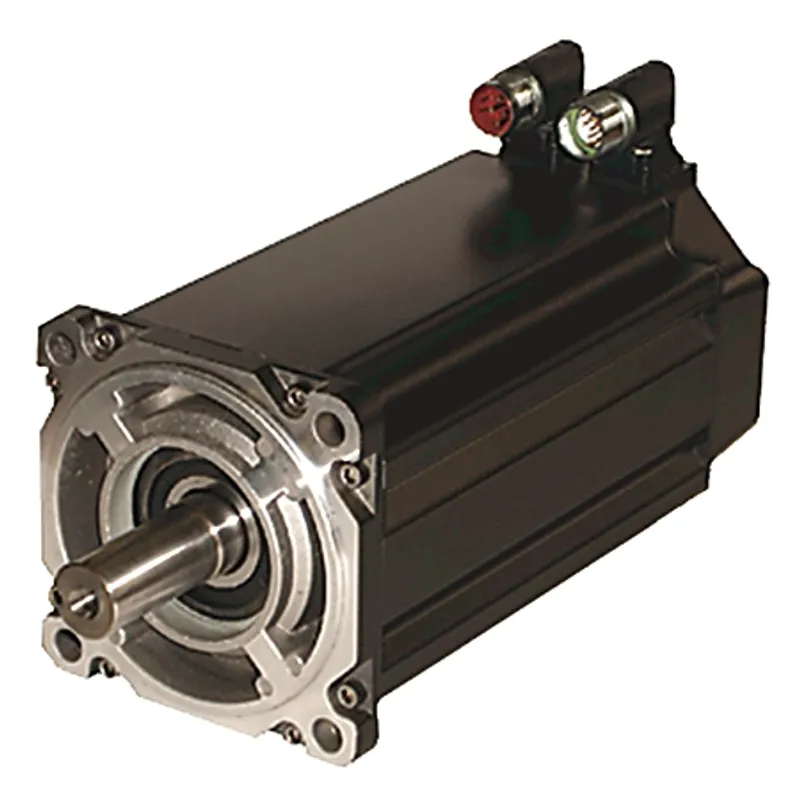

Rockwell Automation / Allen-Bradley MPL-B4530K-MK74AA – MP-Series MPL 480V AC Rotary Servo Motor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Kinetix MPL Low-inertia Servo Motors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | Multiple |
| UPC / EAN | 820919983719 |
Shipping & availability
When can MPL-B4530K-MK74AA be shipped?
MPL-B4530K-MK74AA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MPL-B4530K-MK74AA in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MPL-B4530K-MK74AA and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MPL-B4530K-MK74AA, subject to availability and destination.
Bulletin MPL - Low-Inertia Brushless Servo Motors Product, 460 V, Frame Size 45 = 130 mm (5.12 in.), Stack Length 30 = 76.2 mm (3.0 in.), 4000 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyless Shaft Extension, (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
Specifications
Specifications
| Product Type | Bulletin MPL - Low-Inertia Brushless Servo Motors Product |
| Voltage | (B) 460 V |
| Frame Size | (45) 130 mm (5.12 in.) |
| Magnet Stack Length | (30) 76.2 mm (3.0 in.) |
| RPM | (K) 4000 RPM |
| Feedback | (M) Multi-turn High-resolution Encoder (absolute feedback) |
| Enclosure | (K) Keyless Shaft Extension |
| Connectors | (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect) |
| Brake Option | (4) 24 V DC Brake |
Downloads & documentation
Official documents from Rockwell Automation / Allen-Bradley, downloaded directly from the manufacturer.
Data sheets & manuals
| Product cutsheet mp-in001_-en-p | |
| Product cutsheet mp-pp001_-en-p |
