Pepperl Fuchs NBB0,8-4M25-E2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can NBB0,8-4M25-E2 be shipped?
NBB0,8-4M25-E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NBB0,8-4M25-E2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NBB0,8-4M25-E2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NBB0,8-4M25-E2, subject to availability and destination.

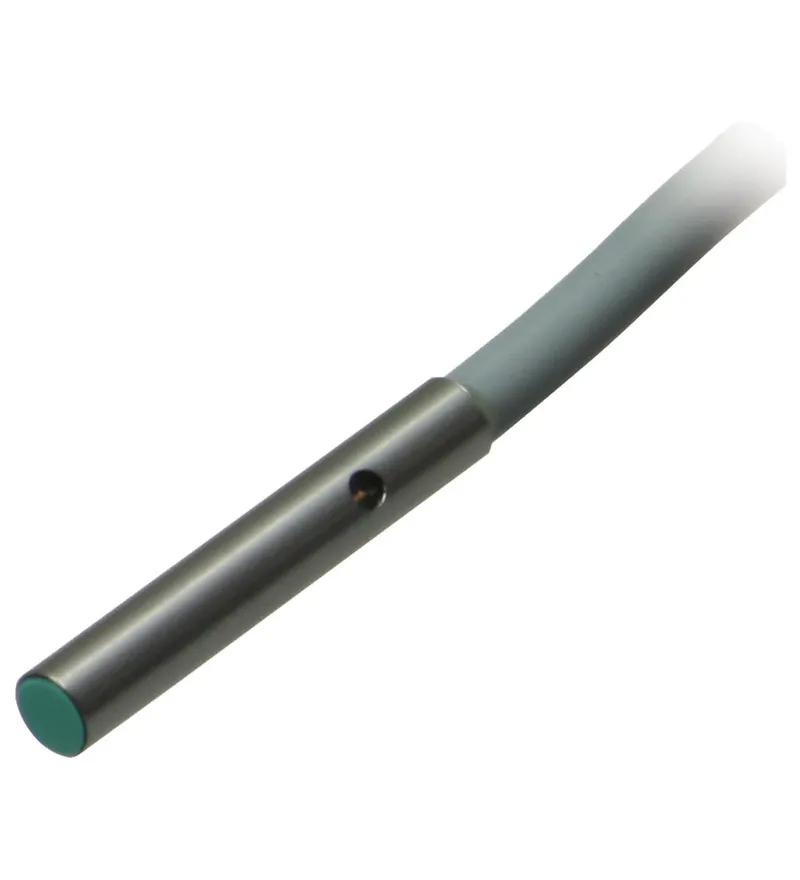

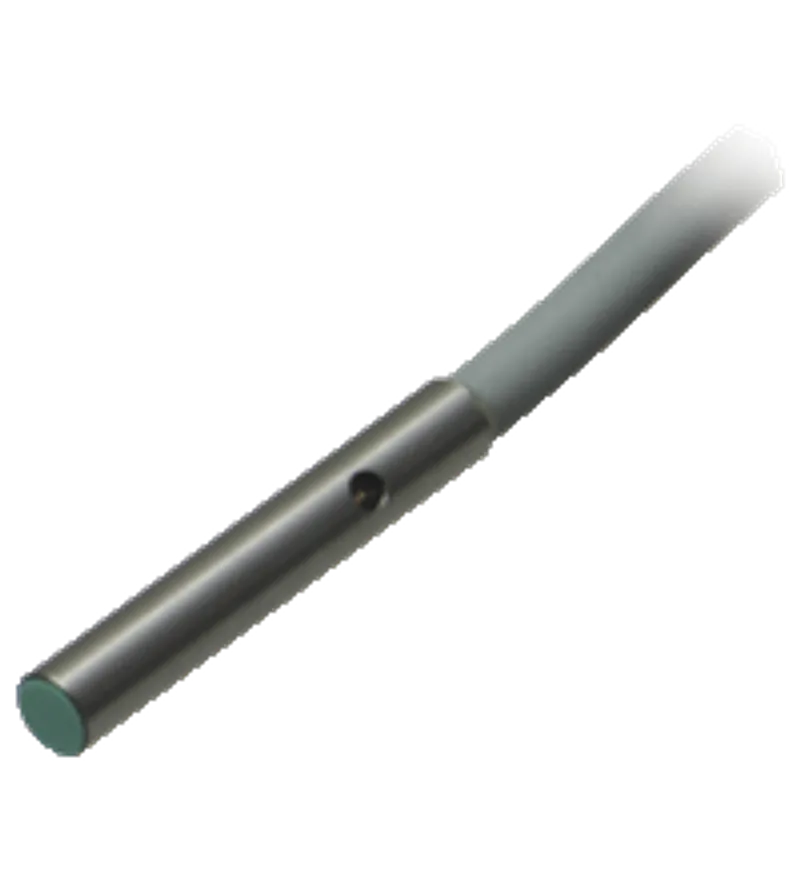

Inductive sensor. Switching function: Normally open (NO), Output type: PNP, Installation: flush, Output polarity: DC, Output type: 3-wire, Construction type: Cylindrical, flat, Series: Cylindrical type, Type of voltage: DC, Connection type: cable, Housing material: Stainless steel 1.4305 / AISI 303, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Rated operating distance: 0.8 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 0.648 mm. Reduction factor rAl: 0.45. Reduction factor rCu: 0.4. Reduction factor r304: 0.77. Output type: 3-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 3000 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. Off-state current: 0 ... 0.1 mA typ. 0.1 µA at 25 °C. No-load supply current: ≤ 10 mA. Switching state indicator: LED, yellow. MTTFd: 1400 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: Stainless steel 1.4305 / AISI 303. Sensing face: PC. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 3 mm - 0.2 mm. Bending radius: > 12 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.14 mm2. Length: 2 m. Dimensions: . Length25 mmDiameter4 mm: . Length: 25 mm. Diameter: 4 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 0.8 mm sn |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 0.648 mm sa |
| Reduction factor rAl | 0.45 |
| Reduction factor rCu | 0.4 |
| Reduction factor r304 | 0.77 |
| Output type | 3-wire |
Nominal ratings
| Operating voltage | 10 ... 30 V UB |
| Switching frequency | 0 ... 3000 Hz f |
| Hysteresis | typ. 5% H |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 3 V Ud |
| Operating current | 0 ... 200 mA IL |
| Off-state current | 0 ... 0.1 mA typ. 0.1 µA at 25 °C Ir |
| No-load supply current | ≤ 10 mA I0 |
| Switching state indicator | LED, yellow |
Functional safety related parameters
| MTTFd | 1400 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Compliance with standards and directives
| Standard conformity | |
| StandardsEN IEC 60947-5-2 | Standards |
| Standards | EN IEC 60947-5-2 |
Approvals and certificates
| UL approval | cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
Mechanical specifications
| Connection type | cable |
| Housing material | Stainless steel 1.4305 / AISI 303 |
| Sensing face | PC |
| Degree of protection | IP67 |
| Cable | |
| Wire end ferrulesyesCable diameter3 mm - 0.2 mmBending radius> 12 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.14 mm2LengthL2 m | Wire end ferrules |
| Wire end ferrules | yes |
| Cable diameter | 3 mm - 0.2 mm |
| Bending radius | > 12 x cable diameter |
| Material | PVC |
| Color | grey |
| Number of cores | 3 |
| Core cross section | 0.14 mm2 |
| Length | 2 m L |

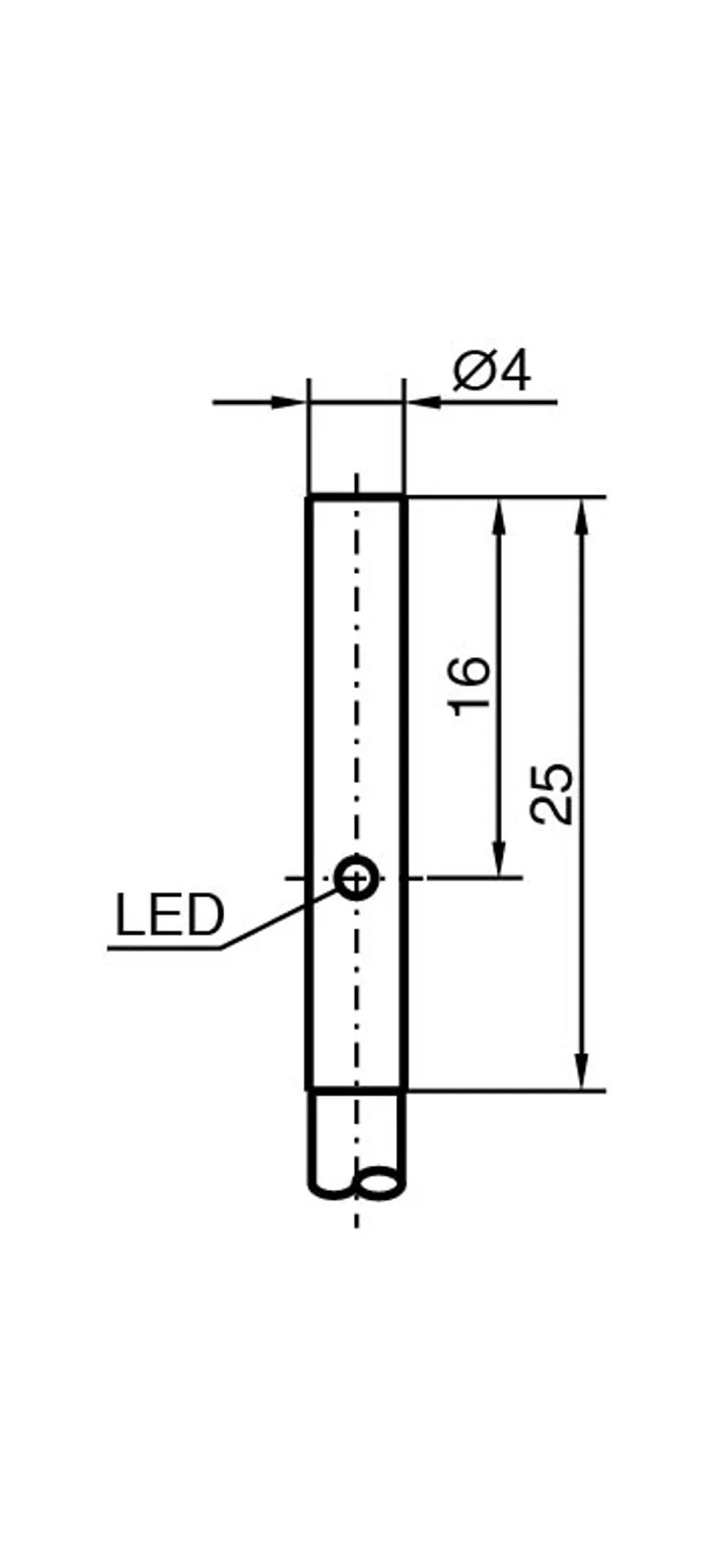

| Dimensions | |
| Length25 mmDiameter4 mm | Length |
| Length | 25 mm |
| Diameter | 4 mm |
