Pepperl Fuchs ES*58-EC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Absolute Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ES*58-EC be shipped?
ES*58-EC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ES*58-EC in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ES*58-EC and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ES*58-EC, subject to availability and destination.

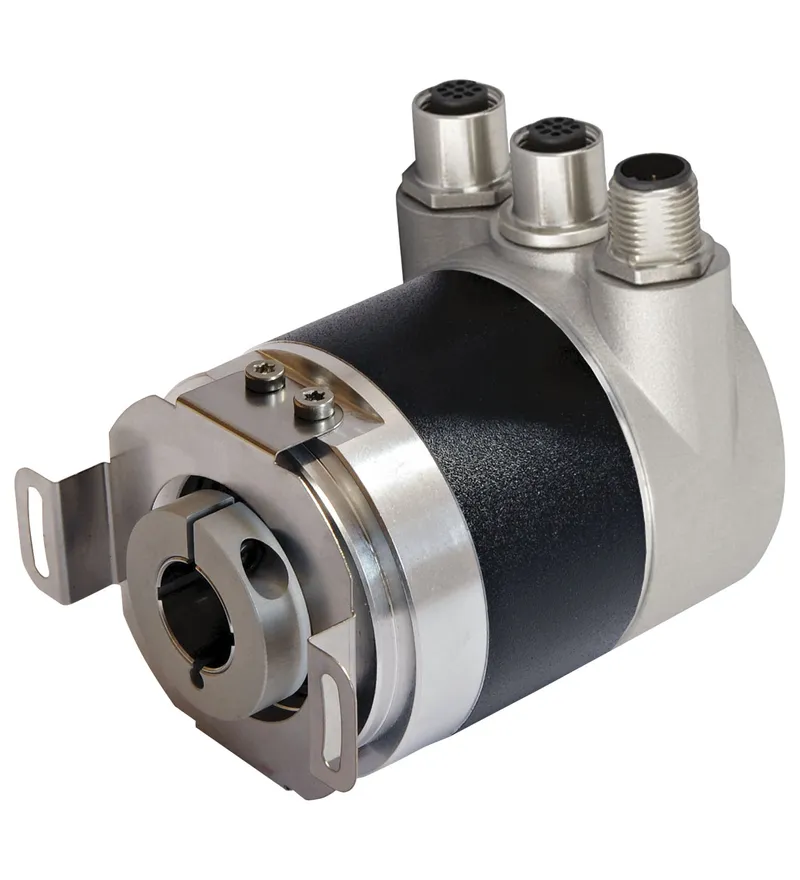

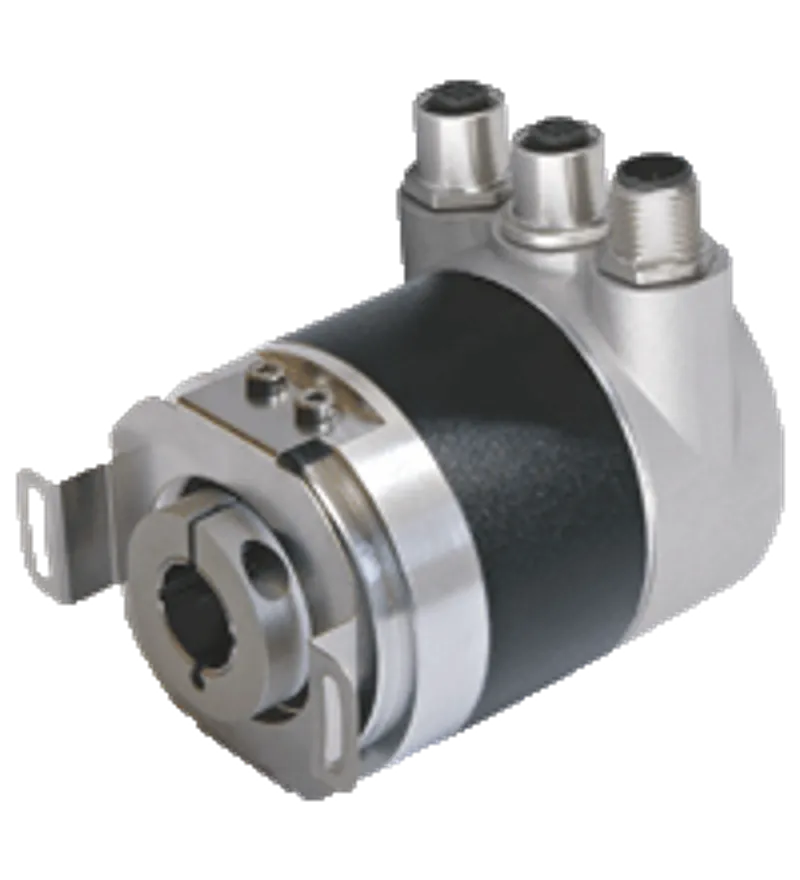

Multiturn absolute rotary encoder. EtherCAT interface, Industrial standard housing ∅58 mm, 30 Bit multiturn, Two Ethernet connectors with built in hub, Recessed hollow shaft, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: EtherCAT®, Detection type: photoelectric sampling, Interface type: EtherCAT® <BR>CoE (CANopen over EtherCAT, according to CiA DS-301 and DS-406 device profile CiA), Physical : Ethernet. Detection type: photoelectric sampling. Device type: Multiturn absolute rotary encoder. Operating voltage: 10 ... 30 V DC , safe galvanic isolation per EN 50178. Power consumption: max. 2.5 W. Linearity: ± 0.5 LSB ( up to 12 Bit ) ± 2 LSB ( up to 16 Bit ). Output code: binary code. Code course (counting direction): programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending). Interface type: EtherCAT® CoE (CANopen over EtherCAT, according to CiA DS-301 and DS-406 device profile CiA). Resolution: . Single turnup to 16 BitMultiturnup to 14 BitOverall resolutionup to 30 Bit: . Single turn: up to 16 Bit. Multiturn: up to 14 Bit. Overall resolution: up to 30 Bit. Physical: Ethernet. Transfer rate: 10 MBit/s / 100 MBit/s. Cycle time: ≥ 65 µs. Connector: Ethernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded. Degree of protection: DIN EN 60529,shaft side: IP65 (without shaft seal)/ IP66/67 (with shaft seal)housing side: IP66/67 Stainless steel version (INOX): completely IP66/67. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz. Operating temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Material: . Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 2 (Inox)housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303: . Combination 1: housing: powder coated aluminumflange: aluminumshaft: stainless steel. Combination 2 (Inox): housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303. Mass: approx. 370 g (combination 1) approx. 840 g (combination 2). Rotational speed: max. 12000 min -1. Moment of inertia: 30 gcm2. Starting torque: ≤ 3 Ncm (version without shaft seal). Shaft load: . Angle offset± 0.9 °Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mmRadial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm: . Angle offset: ± 0.9 °. Axial offset: static: ± 0.3 mm, dynamic: ± 0.1 mm. Radial offset: static: ± 0.5 mm, dynamic: ± 0.2 mm. Dimensions: . Diameter59 mm: . Diameter: 59 mm
Specifications
General specifications
| Detection type | photoelectric sampling |
| Device type | Multiturn absolute rotary encoder |
Electrical specifications
| Operating voltage | 10 ... 30 V DC , safe galvanic isolation per EN 50178 UB |
| Power consumption | max. 2.5 W P0 |
| Linearity | ± 0.5 LSB ( up to 12 Bit ) ± 2 LSB ( up to 16 Bit ) |
| Output code | binary code |
| Code course (counting direction) | programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | EtherCAT® CoE (CANopen over EtherCAT, according to CiA DS-301 and DS-406 device profile CiA) |
| Resolution | |
| Single turnup to 16 BitMultiturnup to 14 BitOverall resolutionup to 30 Bit | Single turn |
| Single turn | up to 16 Bit |
| Multiturn | up to 14 Bit |
| Overall resolution | up to 30 Bit |
| Physical | Ethernet |
| Transfer rate | 10 MBit/s / 100 MBit/s |
| Cycle time | ≥ 65 µs |
Connection
| Connector | Ethernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded |
Standard conformity
| Degree of protection | DIN EN 60529,shaft side: IP65 (without shaft seal)/ IP66/67 (with shaft seal)housing side: IP66/67 Stainless steel version (INOX): completely IP66/67 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 6 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz |
Ambient conditions
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | 98 % , no moisture condensation |
Mechanical specifications
| Material | |
| Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 2 (Inox)housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303 | Combination 1 |
| Combination 1 | housing: powder coated aluminumflange: aluminumshaft: stainless steel |
| Combination 2 (Inox) | housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303 |
| Mass | approx. 370 g (combination 1) approx. 840 g (combination 2) |
| Rotational speed | max. 12000 min -1 |
| Moment of inertia | 30 gcm2 |
| Starting torque | ≤ 3 Ncm (version without shaft seal) |
| Shaft load | |
| Angle offset± 0.9 °Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mmRadial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm | Angle offset |
| Angle offset | ± 0.9 ° |
| Axial offset | static: ± 0.3 mm, dynamic: ± 0.1 mm |
| Radial offset | static: ± 0.5 mm, dynamic: ± 0.2 mm |

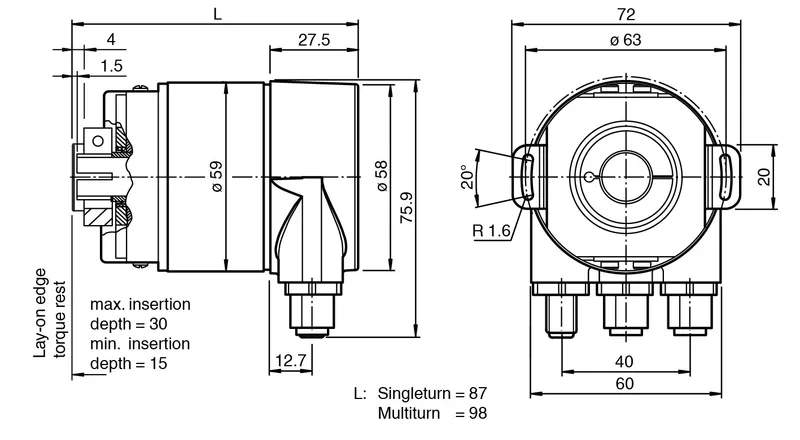

| Dimensions | |
| Diameter59 mm | Diameter |
| Diameter | 59 mm |
