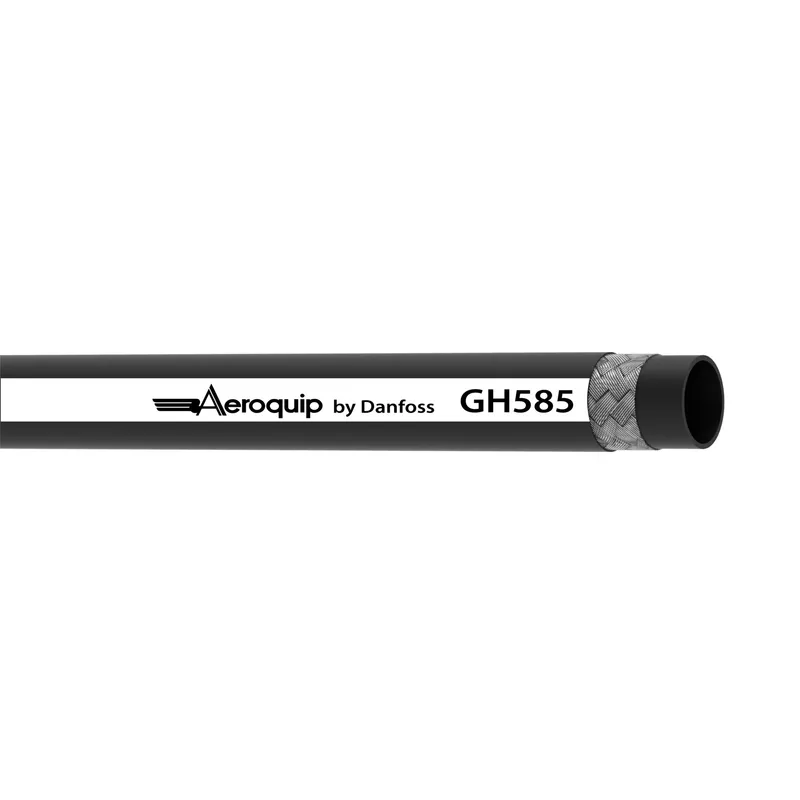

HOSE-AER, GH585, -4, 50M, RL, EN854-2T

Name: HOSE-AER, GH585, -4, 50M, RL, EN854-2T
Brand: Danfoss (Drives)
SKU: GH585-4MT50

MPN: GH585-4MT50 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GH585-4MT50 be shipped?

GH585-4MT50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GH585-4MT50 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GH585-4MT50 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GH585-4MT50, subject to availability and destination.

HOSE-AER, GH585, -4, 50M, RL, EN854-2T - GH585-4MT50

Specifications

Abrasion resistance	Standard
Application	Water
Bend radius min (inch)	1.570
Bend radius min (mm)	40.000
Brand	Aeroquip by Danfoss
Burst pressure (bar)	300
Burst pressure (psi)	4400
Certifications	DIN 20021 Type 2TE, EN854 Type 2TE
Color	Black
Compliances	EN854 Type 2TE
Conditional temp range	125C [257F] Intermittently
Conductivity	Conductive
Construction	2 Ply braid
Cover material	Chloroprene (CR)
Fixed Length	50.000
Impulse cycle (cycles)	100000
Inside diameter (inch)	0.25
Inside diameter (mm)	6.40
Lay line style	Embossed
Length (in)	1968.00000
Length (mm)	50000.00000
Outside diameter (inch)	0.53
Outside diameter (mm)	13.46
Package form	Reel
Product height in	0.250
Product height mm	6.400
Product width in	0.250
Product width mm	6.4
Qualified hose fittings	FJ
Reinforcement material	Fabric
Series	GH585 Series
Size	-4
Tube material	Nitrile (NBR)
Tube wall thickness (inch)	1.25
Tube wall thickness (mm)	31.75
Vacuum rating (inHg)	18
Vacuum rating (mmHg)	457.20
Working pressure max (bar)	75
Working pressure max (psi)	1100
Working temperature max (C)	100
Working temperature max (F)	212.0
Working temperature min (C)	-40
Working temperature min (F)	-40.0
