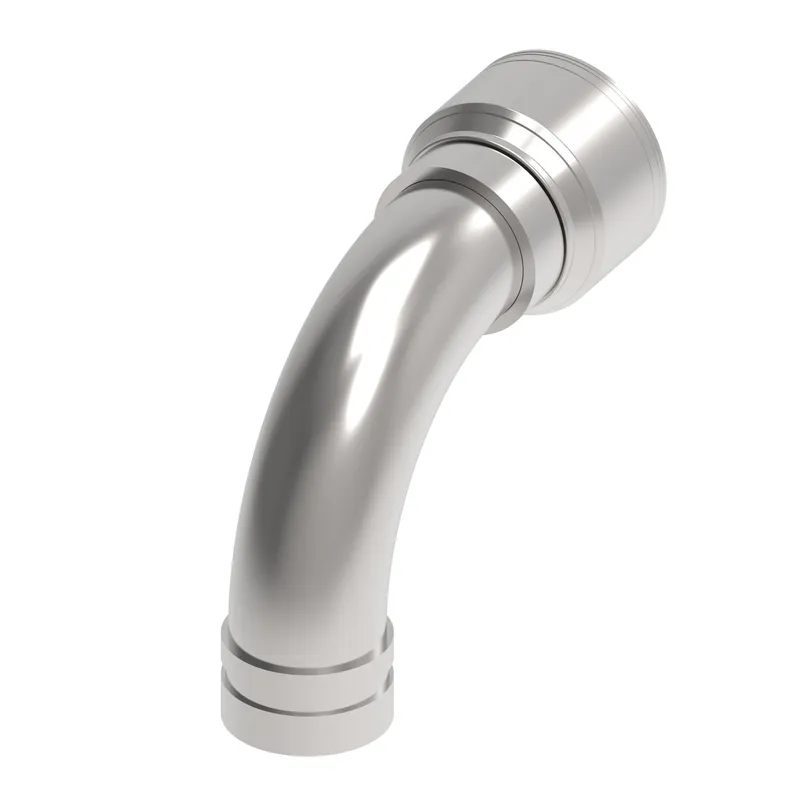

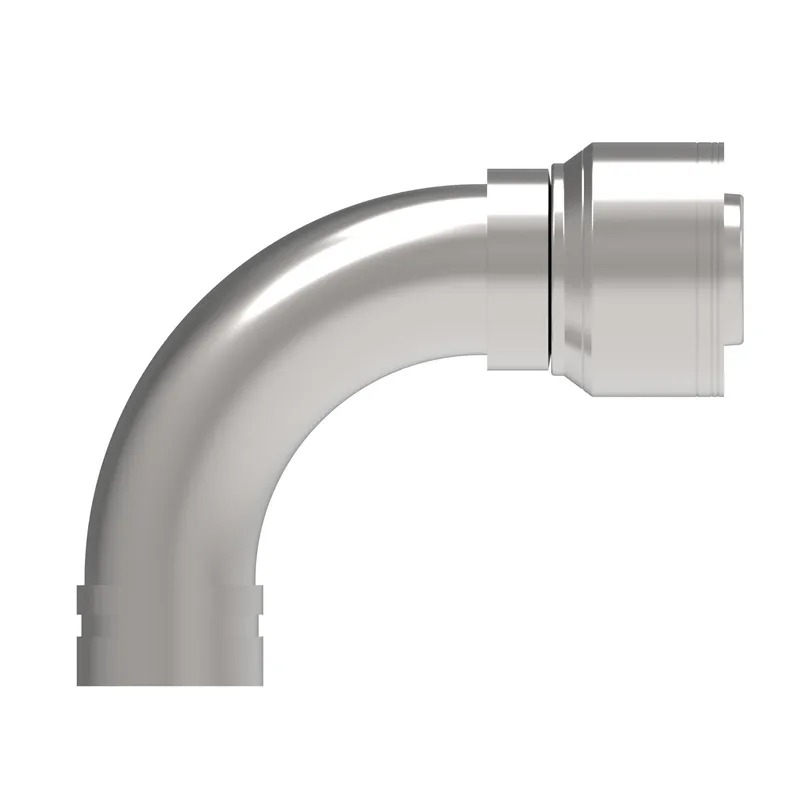

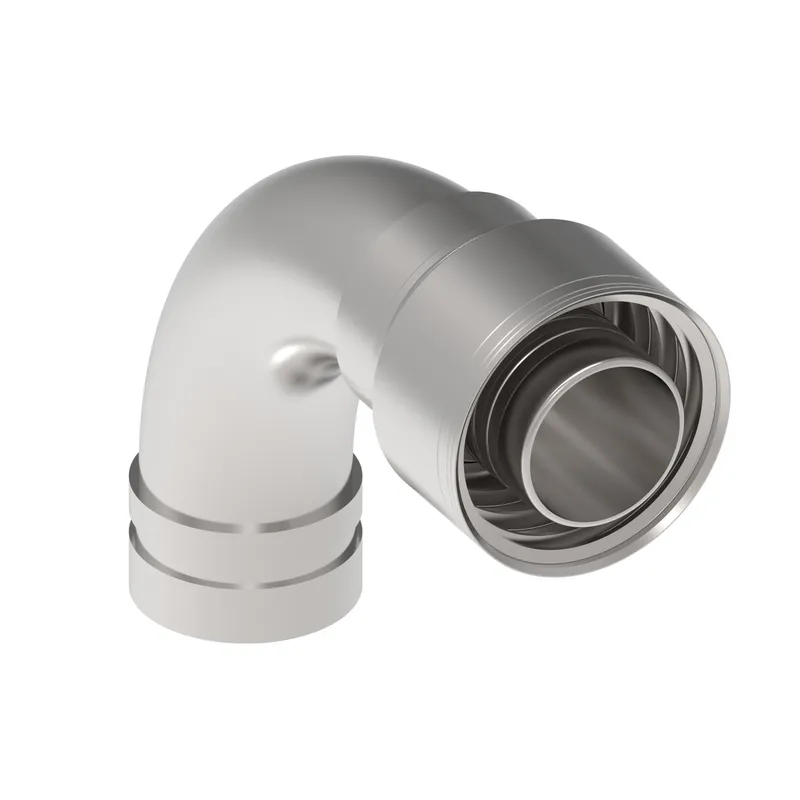

TUBE NIPPLE, 1S/32, 32, CS
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GH25864-32 be shipped?
GH25864-32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GH25864-32 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GH25864-32 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GH25864-32, subject to availability and destination.
Danfoss TUBE NIPPLE, 1S/32, 32, CS, manufacturer part number GH25864-32. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 7.260 |
| A dimension MM | 184.500 |
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 2.190 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | GH663, GH793 |
| Construction Style | Crimp |
| Drop dimension IN | 4.230 |
| Drop dimension MM | 107.50 |
| End size 1 | -32 |
| Finish plating | Dura-Kote |
| Hose cut off factor IN | 5.210 |
| Hose cut off factor MM | 132.300 |
| Hose size | -32 |
| Inside diameter IN | 1.750 |
| Inside diameter MM | 44.400 |
| Product height in | 6.890 |
| Product height mm | 175.006 |
| Product length in | 8.440 |
| Product length mm | 214.376 |
| Product material | Carbon steel |
| Product width in | 3.220 |
| Product width mm | 81.788 |
| Thread sealant | No |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -46 |
| Working temperature min F | -50 |
