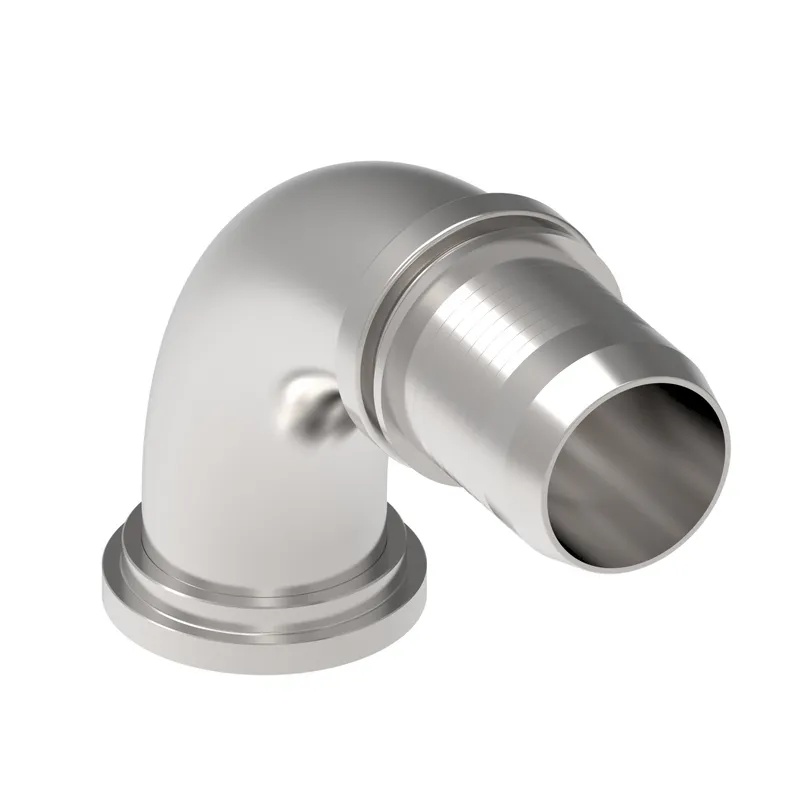

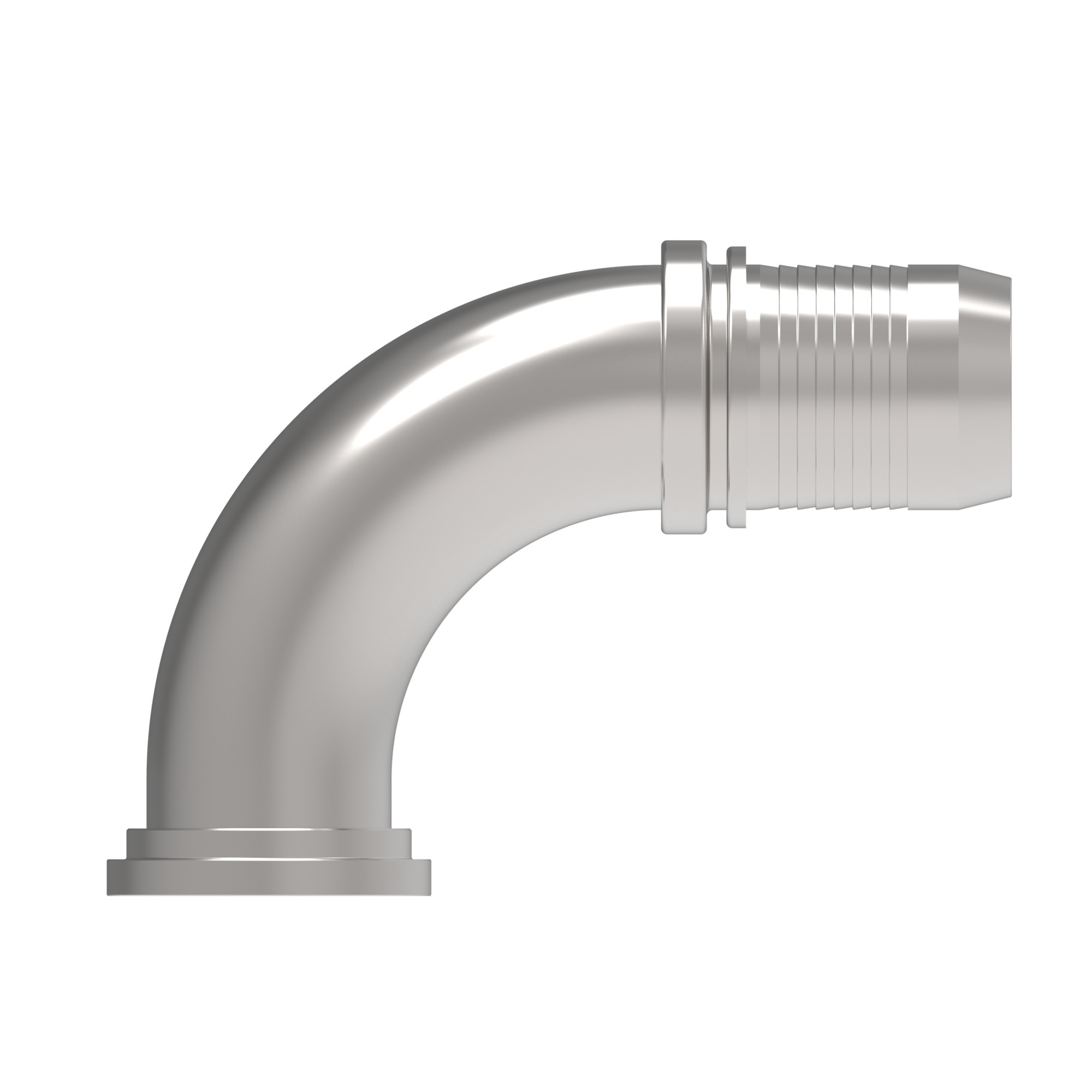

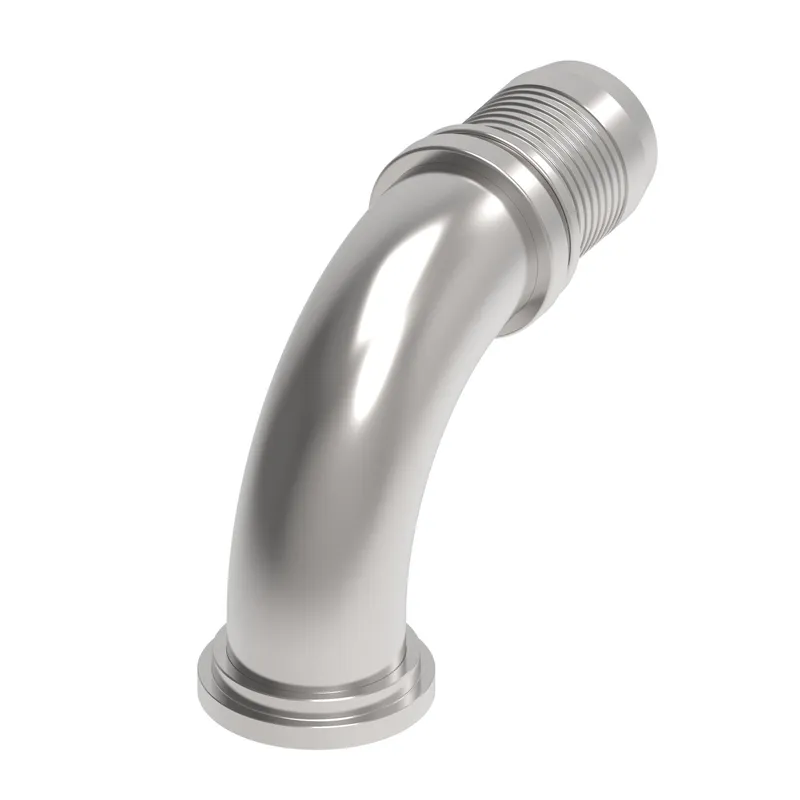

HOSE NIPPLE ASSY, FC/40, C61/40, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FC8152-4040S be shipped?
FC8152-4040S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FC8152-4040S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FC8152-4040S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC8152-4040S, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, FC/40, C61/40, CS, 90D, manufacturer part number FC8152-4040S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| EAN/UPC | 678146145932 |
| A dimension IN | 7.580 |
| A dimension MM | 192.532 |
| Angle shape | 90 Degree |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 2.500 |
| Construction Style | Crimp |
| Drop dimension IN | 5.187 |
| Drop dimension MM | 131.75 |
| End size 1 | -40 |
| End Type 1 | Split flange code 61 |
| Finish plating | Protective oil |
| Hose cut off factor IN | 4.866 |
| Hose cut off factor MM | 123.596 |
| Inside diameter IN | 2.100 |
| Inside diameter MM | 53.300 |
| Product height in | 6.680 |
| Product height mm | 169.672 |
| Product length in | 9.230 |
| Product length mm | 234.442 |
| Product material | Carbon steel |
| Product width in | 4.000 |
| Product width mm | 101.6 |
| Thread sealant | No |
| Working pressure max BAR | 206.00 |
| Working pressure max PSI | 2950.00 |
| Working temperature max C | 93 |
| Working temperature max F | 200 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
