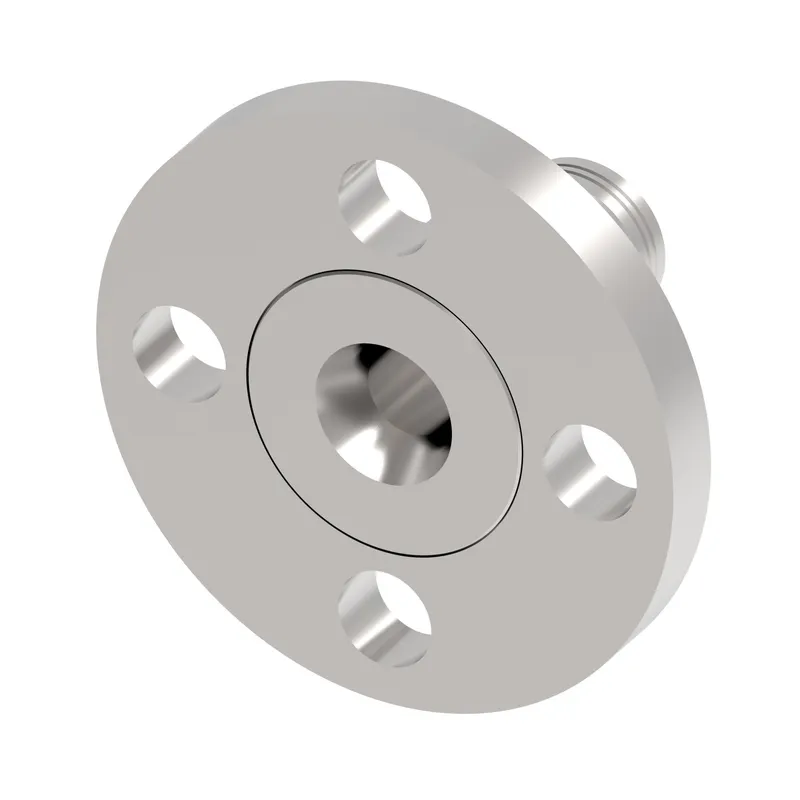

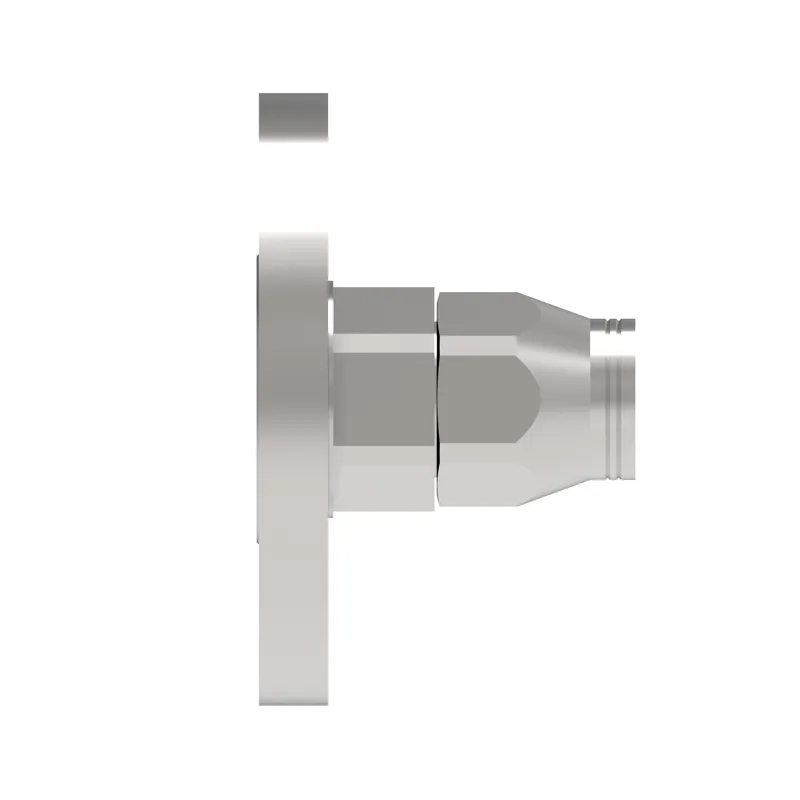

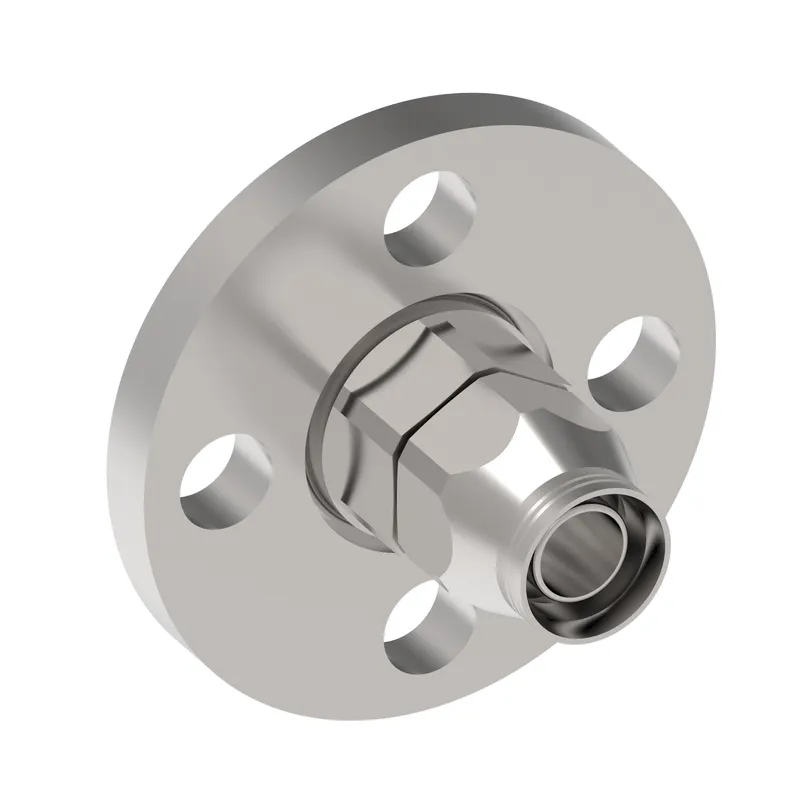

Danfoss FC7862-1212-228 – HOSE FTG, FC/12, FLG-CIR/12, AN, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Marine and military |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can FC7862-1212-228 be shipped?
FC7862-1212-228 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FC7862-1212-228 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FC7862-1212-228 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FC7862-1212-228, subject to availability and destination.
Danfoss HOSE FTG, FC/12, FLG-CIR/12, AN, STR, manufacturer part number FC7862-1212-228. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.400 |
| A dimension MM | 60.960 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.050 |
| Compatible hoses | 2808 |
| Construction Style | Reusable |
| End size 1 | -12 |
| Finish plating | Passivate |
| Hex size 1 IN | 1.380 |
| Hex size 1 MM | 35.052 |
| Hex size 2 IN | 1.380 |
| Hex size 2 MM | 35.000 |
| Hose cut off factor IN | 1.630 |
| Hose cut off factor MM | 41.402 |
| Hose size | -12 |
| Inside diameter IN | 0.560 |
| Inside diameter MM | 14.224 |
| Product height in | 3.880 |
| Product height mm | 98.552 |
| Product length in | 2.400 |
| Product length mm | 60.960 |
| Product material | 304 Stainless steel |
| Product width in | 3.880 |
| Product width mm | 98.552 mm |
| Reusable socket hex MM | 32.000 |
| Thread sealant | No |
