fitting-nipple
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 87391-32-32H145RZ be shipped?
87391-32-32H145RZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 87391-32-32H145RZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 87391-32-32H145RZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-32-32H145RZ, subject to availability and destination.

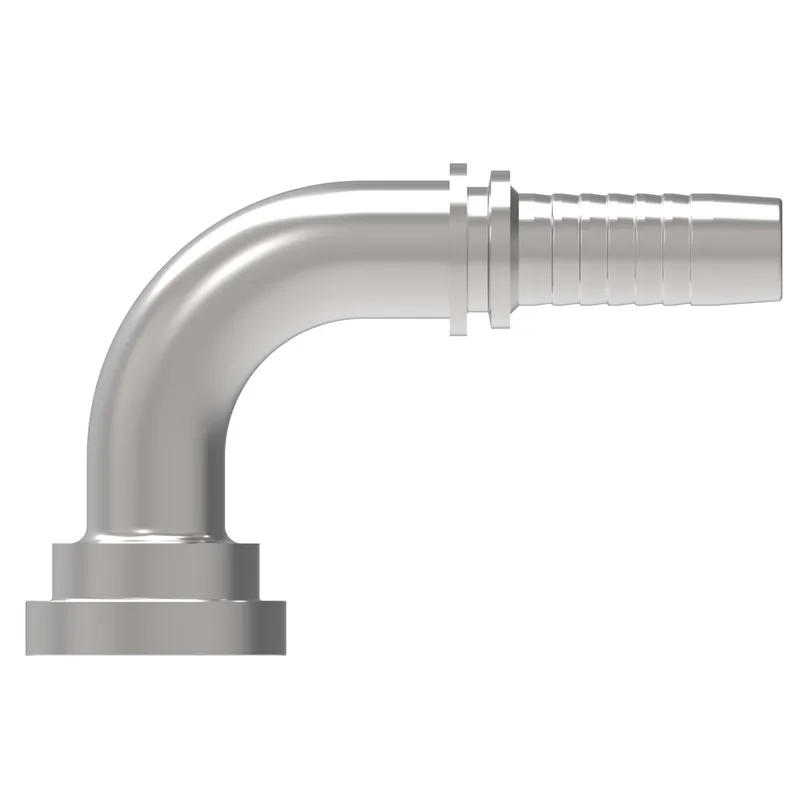

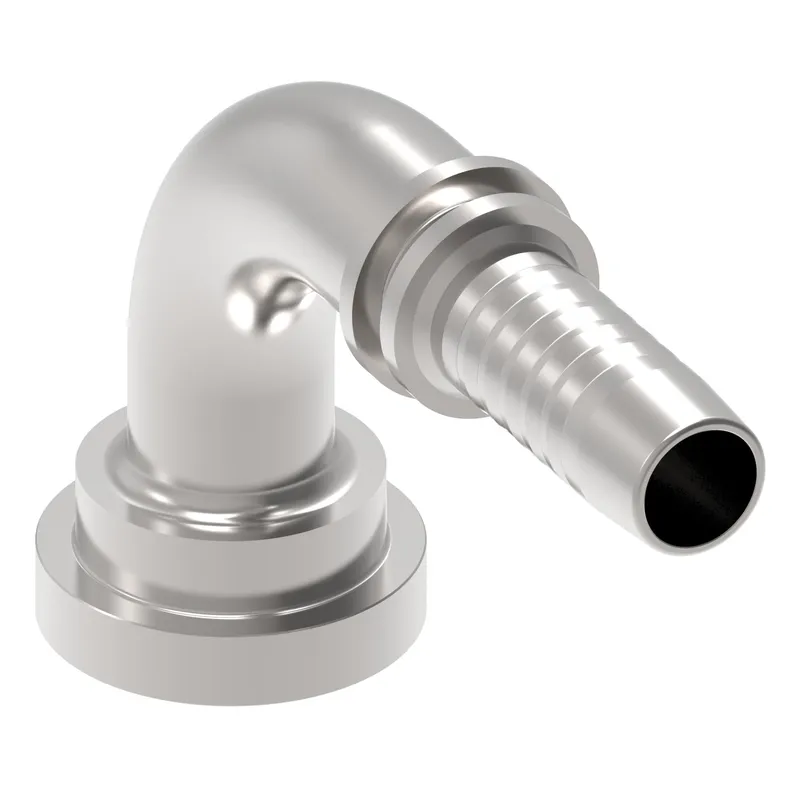

Danfoss fitting-nipple, manufacturer part number 87391-32-32H145RZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| Drop dimension IN | 5.709 |
| Drop dimension MM | 145.00 |
| End size 1 | -32 |
| End size 2 | -32 |
| End Type 2 | Line/hose/tube |
| Hose cut off factor IN | 5.187 |
| Hose cut off factor MM | 131.750 |
| Hose size | -32 |
| Inside diameter IN | 1.693 |
| Inside diameter MM | 43.000 |
| Product height in | 6.850 |
| Product height mm | 174.000 |
| Product length in | 9.427 |
| Product length mm | 239.451 |
| Product material | Carbon steel |
| Product width in | 2.811 |
| Product width mm | 71.399 |
| Thread sealant | No |
| Working pressure max BAR | 207 |
| Working pressure max PSI | 3002 |
