Home / Danfoss (Drives) / fitting-nipple
Available on request

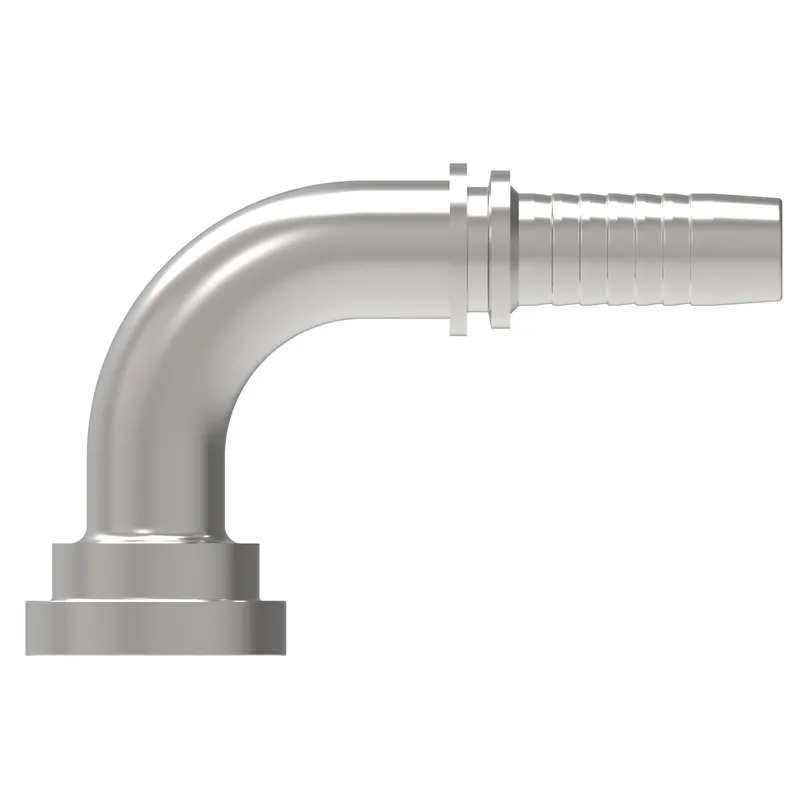

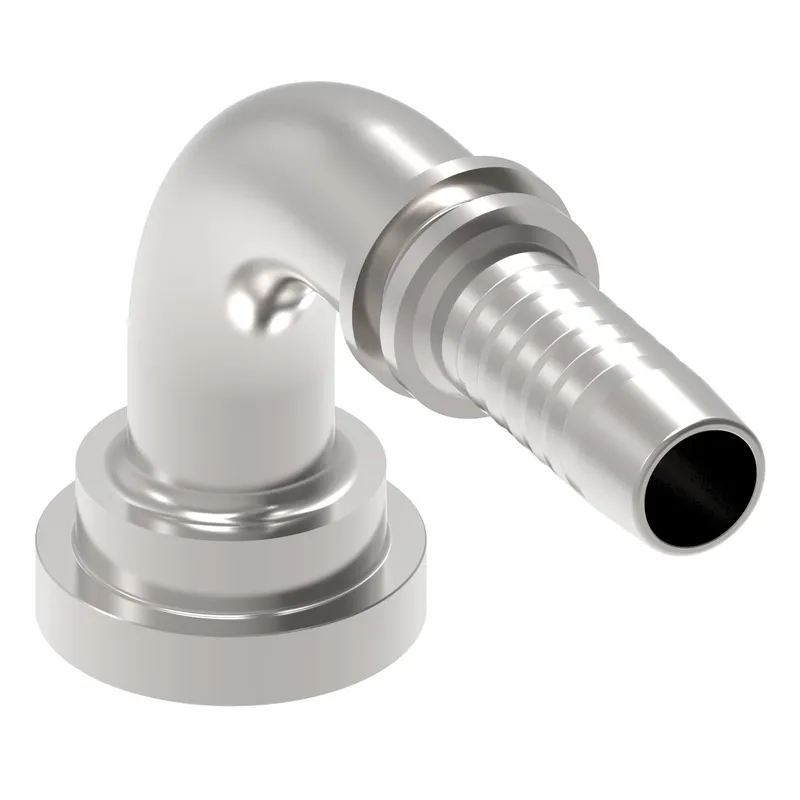

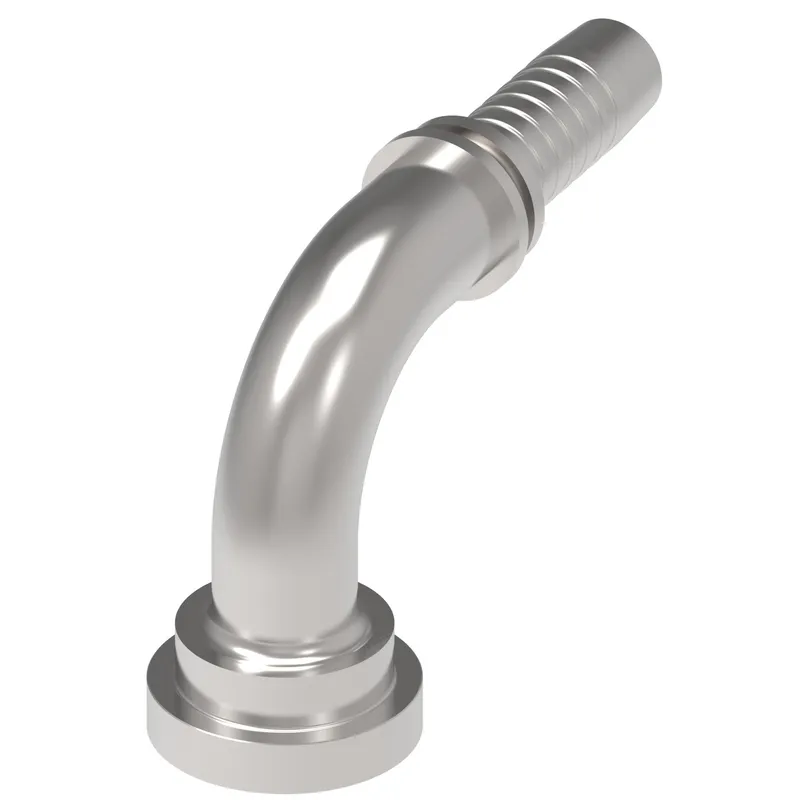

fitting-nipple

MPN: 87391-24-20H140RZ · Brand: Danfoss (Drives)
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryBraided hose and fittings
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 87391-24-20H140RZ be shipped?

87391-24-20H140RZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 87391-24-20H140RZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 87391-24-20H140RZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87391-24-20H140RZ, subject to availability and destination.

Danfoss fitting-nipple, manufacturer part number 87391-24-20H140RZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

Angle shape90 Degree
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN5.512
Drop dimension MM140.00
End size 1-24
End size 2-20
End Type 2Line/hose/tube
Hose cut off factor IN3.602
Hose cut off factor MM91.500
Hose size-20
Inside diameter IN1.063
Inside diameter MM27.000
Product height in6.240
Product height mm158.501
Product length in6.915
Product length mm175.651
Product materialCarbon steel
Product width in2.374
Product width mm60.3
Thread sealantNo
Working pressure max BAR207
Working pressure max PSI3002
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide

More Danfoss (Drives) parts

HOSE NIPPLE ASSY, 2P/16, C61/20, CS, 90DAvailable on requestHOSE NIPPLE ASSY, 2P/16, C61/20, CS, 90D
MPN: 87391-20-16Z · Danfoss (Drives)
Price on request
Request a quote
HOSE NIPPLE ASSY, 2P/20, C61/20, AN, 90DAvailable on requestHOSE NIPPLE ASSY, 2P/20, C61/20, AN, 90D
MPN: 87391-20-20SR · Danfoss (Drives)
Price on request
Request a quote
HOSE NIPPLE ASSY, 2P/24, C61/20, CS, 90DAvailable on requestHOSE NIPPLE ASSY, 2P/24, C61/20, CS, 90D
MPN: 87391-20-24Z · Danfoss (Drives)
Price on request
Request a quote
HOSE NIPPLE ASSY, 2P/16, C61/24, CS, 90DAvailable on requestHOSE NIPPLE ASSY, 2P/16, C61/24, CS, 90D
MPN: 87391-24-16Z · Danfoss (Drives)
Price on request
Request a quote
HOSE NIPPLE ASSY, 2P/20, C61/24, CS, 90DAvailable on requestHOSE NIPPLE ASSY, 2P/20, C61/24, CS, 90D
MPN: 87391-24-20Z · Danfoss (Drives)
Price on request
Request a quote

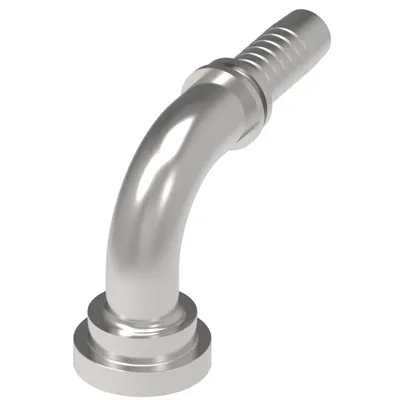

HOSE NIPPLE ASSY, 2P/24, C61/24, CS, 90DAvailable on requestHOSE NIPPLE ASSY, 2P/24, C61/24, CS, 90D
