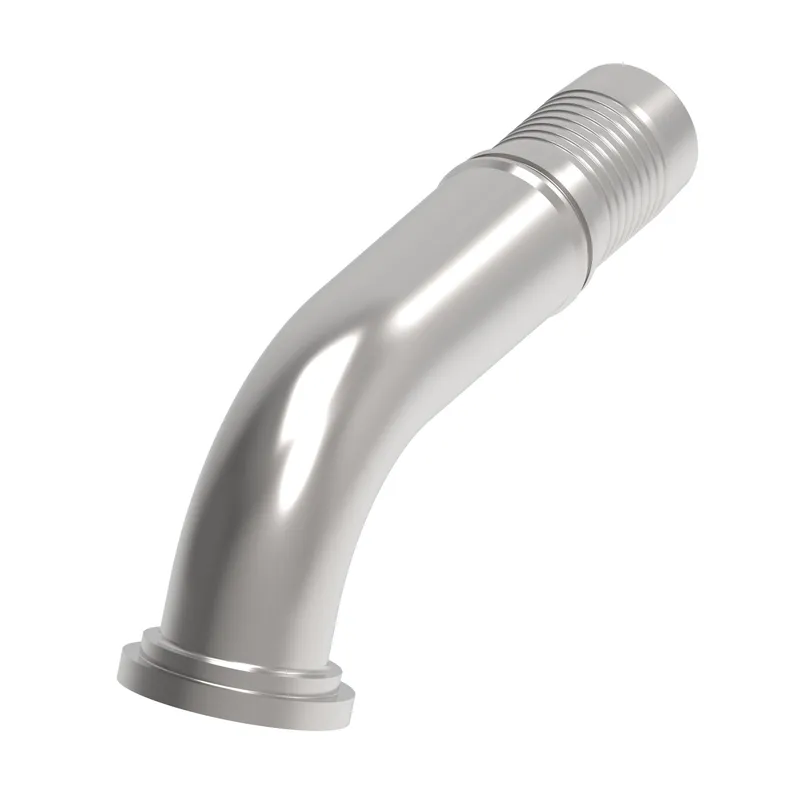

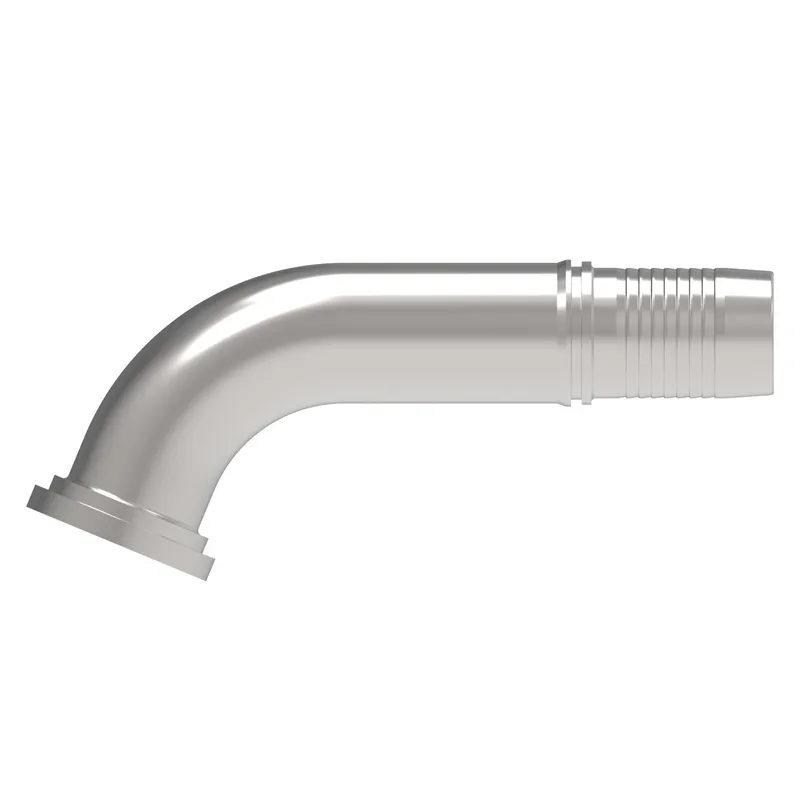

HOSE NIPPLE, 2P/24, C61/24, CS, 67.5D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 87371-24-24Z be shipped?
87371-24-24Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 87371-24-24Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 87371-24-24Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87371-24-24Z, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/24, C61/24, CS, 67.5D, manufacturer part number 87371-24-24Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 8.232 |
| A dimension MM | 209.100 |
| Angle shape | 67.5 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Construction Style | Crimp |
| Drop dimension IN | 2.622 |
| Drop dimension MM | 66.60 |
| End size 1 | -24 |
| End size 2 | -24 |
| End Type 1 | Split flange code 61 |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 5.555 |
| Hose cut off factor MM | 141.100 |
| Hose size | -24 |
| Inside diameter IN | 1.259 |
| Inside diameter MM | 32.000 |
| Product height in | 3.508 |
| Product height mm | 89.101 |
| Product length in | 9.419 |
| Product length mm | 239.250 |
| Product material | Carbon steel |
| Product width in | 2.374 |
| Product width mm | 60.3 |
| Thread sealant | No |
| Working pressure max BAR | 206 |
| Working pressure max PSI | 2950 |
