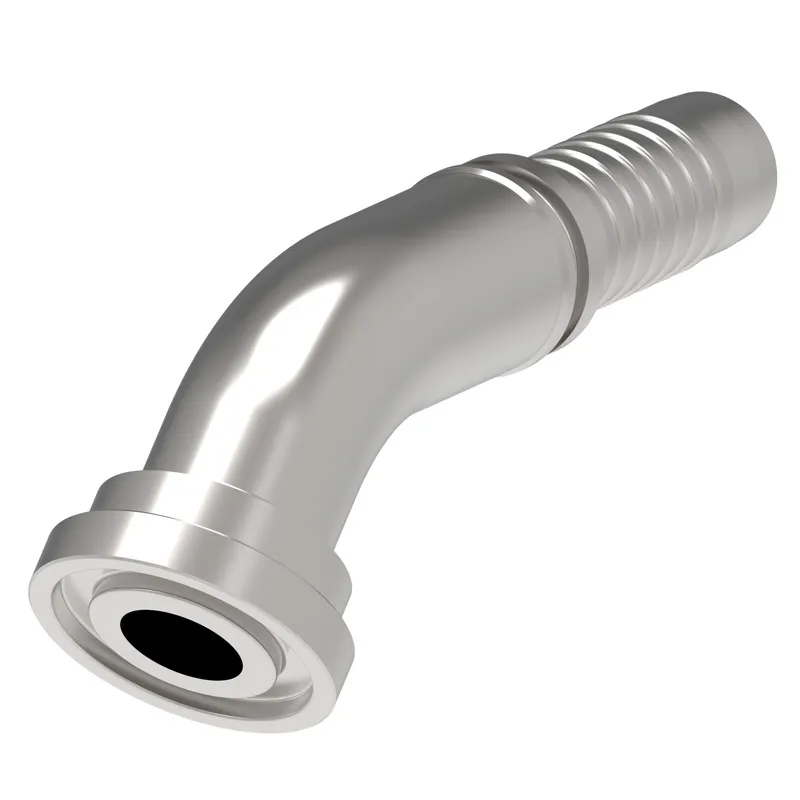

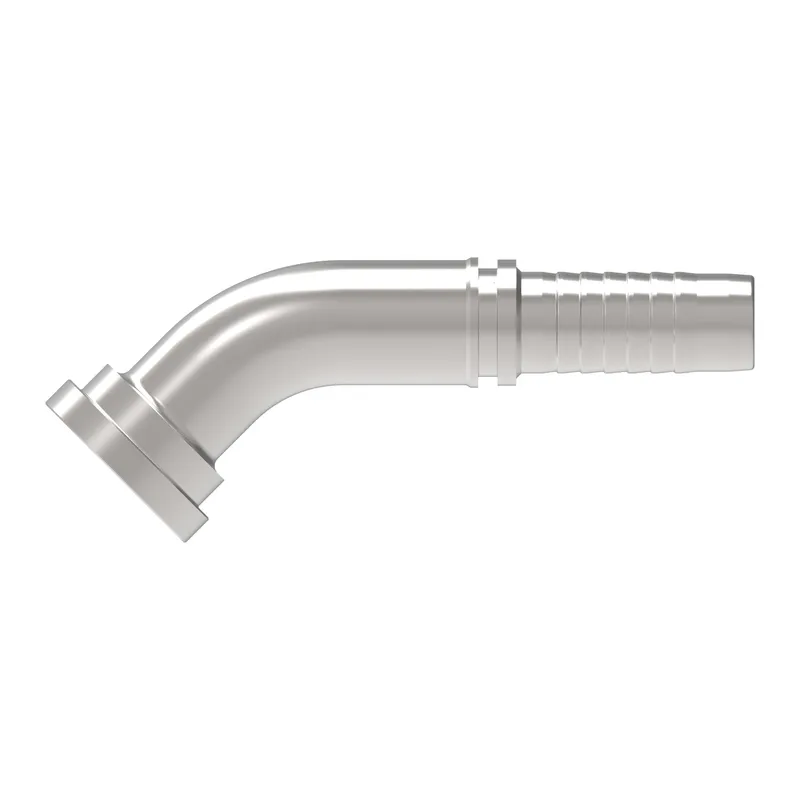

HOSE NIPPLE, 2P/40, C61/40, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 87341-40-40Z be shipped?
87341-40-40Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 87341-40-40Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 87341-40-40Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87341-40-40Z, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/40, C61/40, CS, 45D, manufacturer part number 87341-40-40Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 7.086 |
| A dimension MM | 180.000 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.500 |
| Compatible hose ID MM | 63.500 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| Drop dimension IN | 1.732 |
| Drop dimension MM | 44.00 |
| End size 1 | -40 |
| End size 2 | -40 |
| End Type 1 | Split flange code 61 |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 3.858 |
| Hose cut off factor MM | 98.000 |
| Hose size | -40 |
| Inside diameter IN | 2.047 |
| Inside diameter MM | 52.000 |
| Product height in | 7.874 |
| Product height mm | 200.000 |
| Product length in | 7.638 |
| Product length mm | 194.000 |
| Product material | Carbon steel |
| Product width in | 3.311 |
| Product width mm | 84.099 |
| Thread sealant | No |
| Working pressure max BAR | 207 |
| Working pressure max PSI | 3002 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
