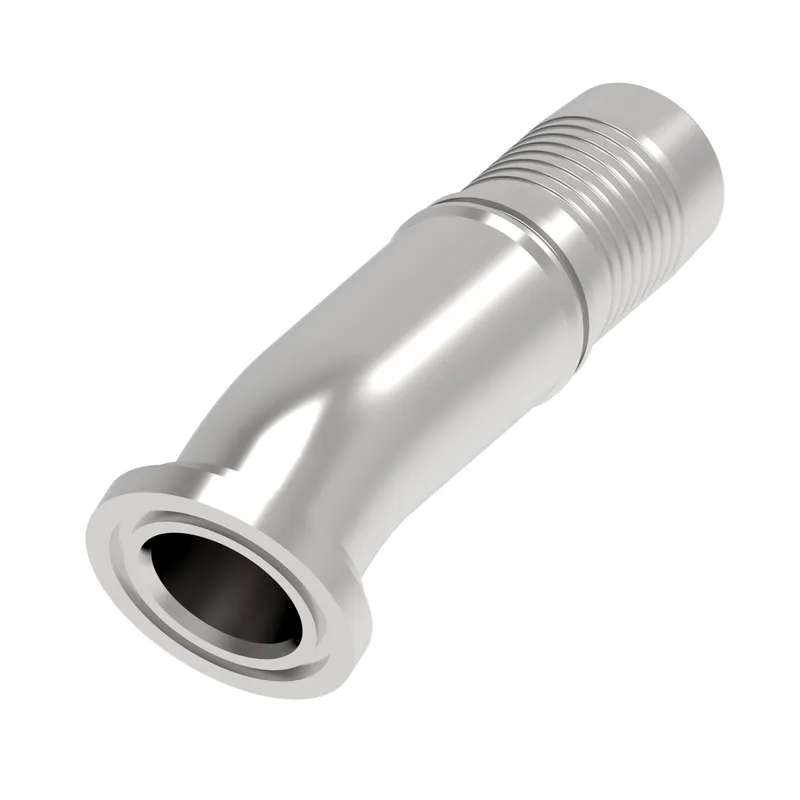

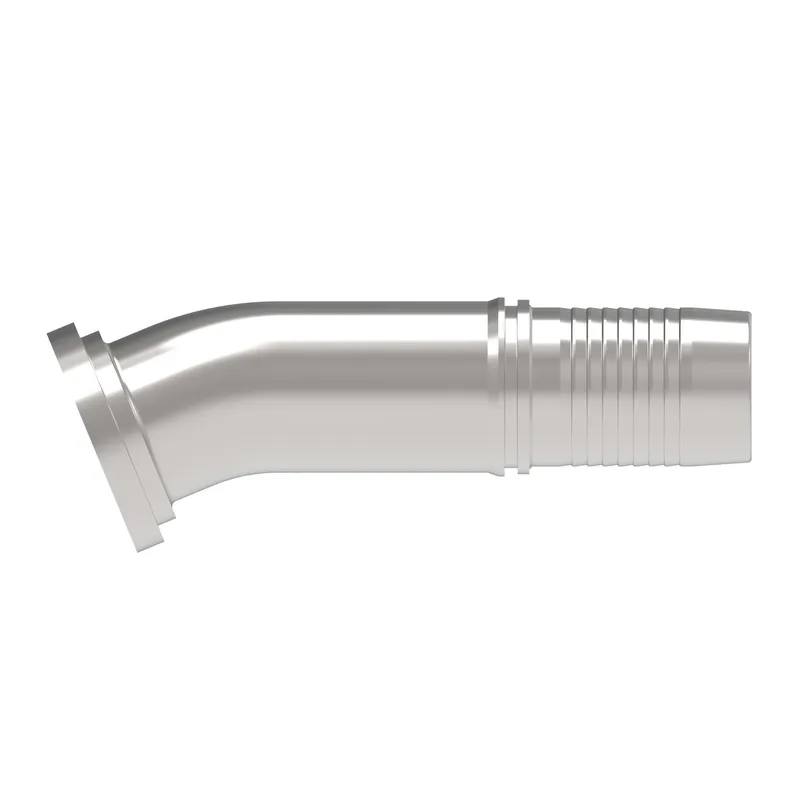

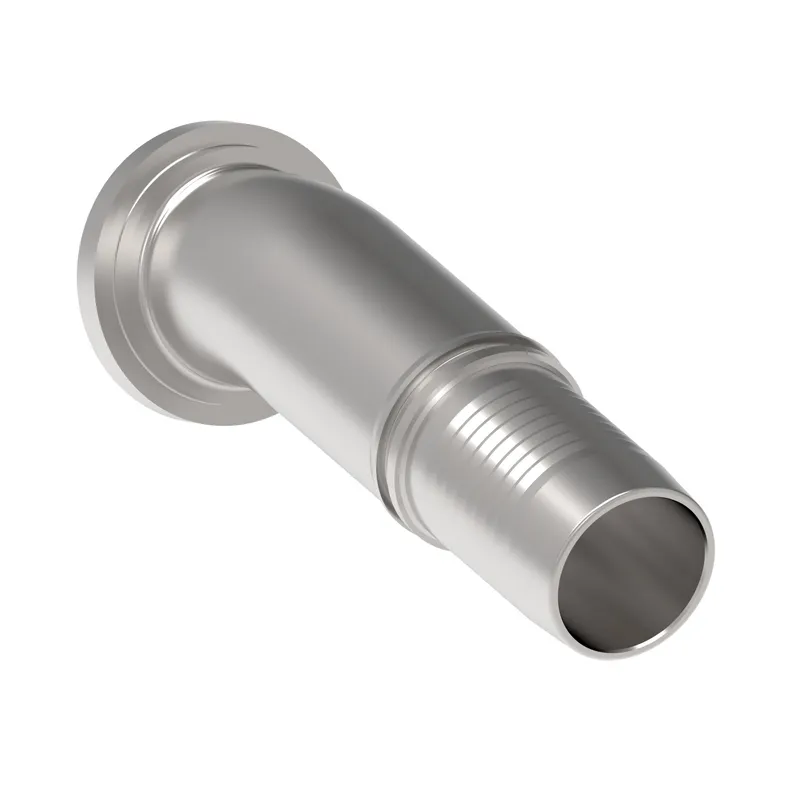

HOSE NIPPLE, 2P/20, C61/20, CS, 22.5D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 87321-20-20Z be shipped?
87321-20-20Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 87321-20-20Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 87321-20-20Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87321-20-20Z, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/20, C61/20, CS, 22.5D, manufacturer part number 87321-20-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 6.208 |
| A dimension MM | 157.700 |
| Angle shape | 22.5 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.750 |
| Construction Style | Crimp |
| Drop dimension IN | 0.551 |
| Drop dimension MM | 14.00 |
| End size 1 | -20 |
| End Type 1 | Split flange code 61 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 4.082 |
| Hose cut off factor MM | 103.700 |
| Hose size | -20 |
| Inside diameter IN | 1.062 |
| Inside diameter MM | 27.000 |
| Product height in | 2.290 |
| Product height mm | 58.166 |
| Product length in | 6.520 |
| Product length mm | 165.608 |
| Product material | Carbon steel |
| Product width in | 2.000 |
| Product width mm | 50.8 |
| Thread sealant | No |
| Working pressure max BAR | 276 |
| Working pressure max PSI | 4000 |
