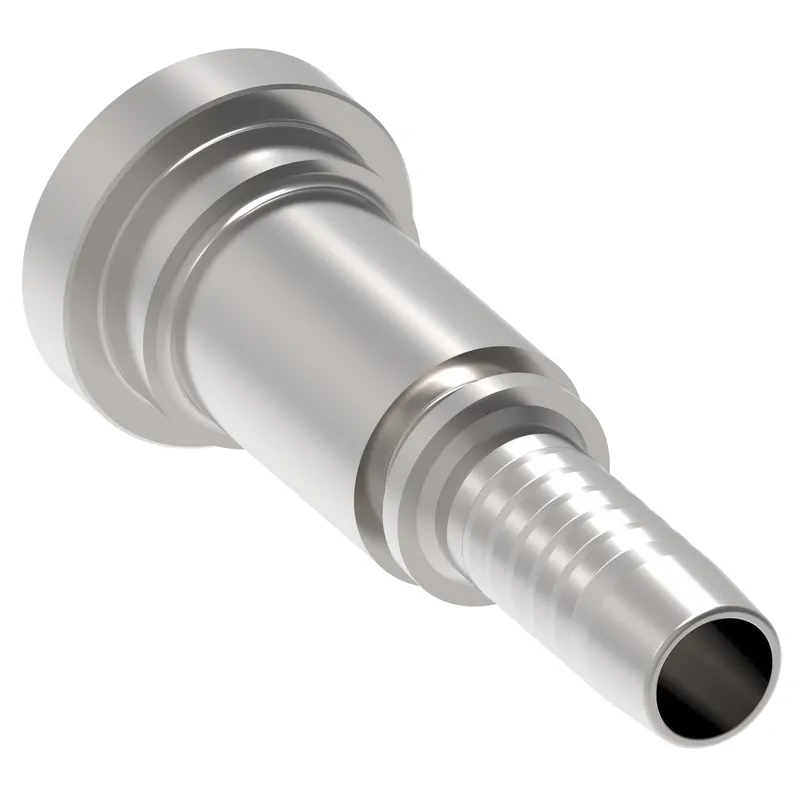

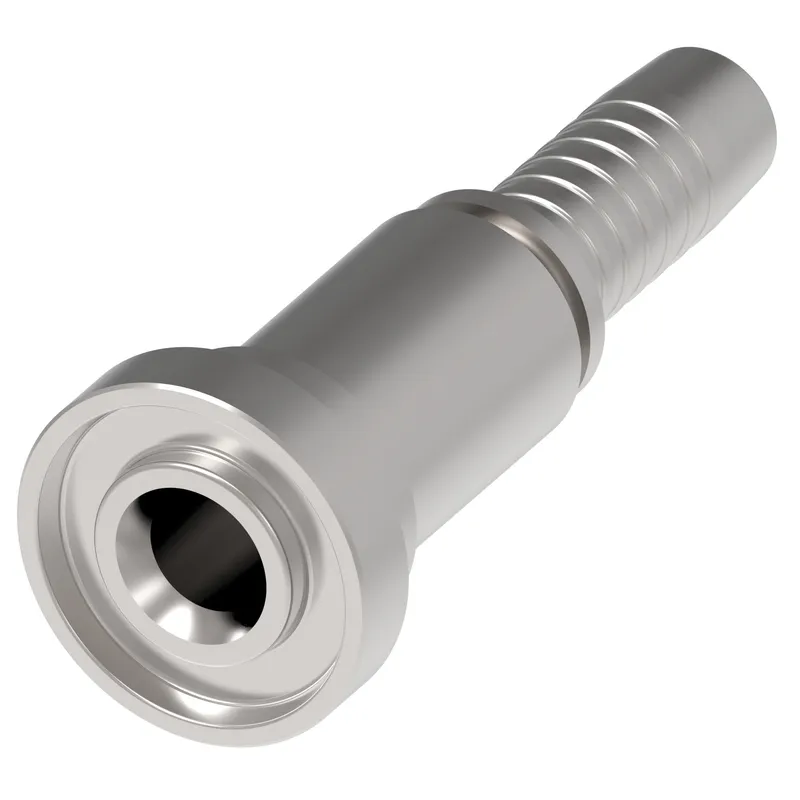

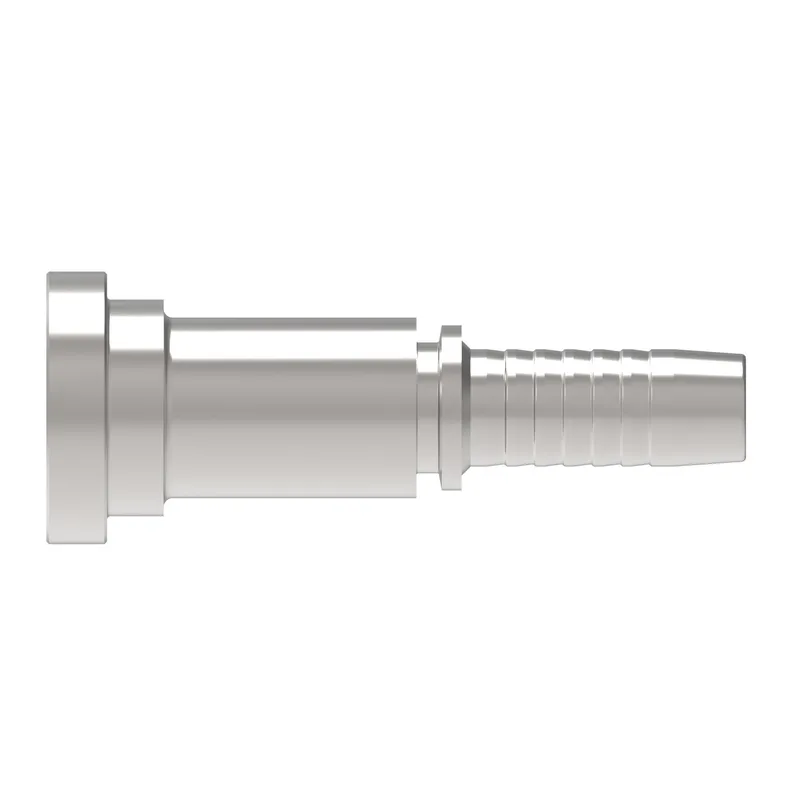

HOSE NIPPLE ASSY, 2P/24, C61/24, AN, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 87311-24-24SR be shipped?
87311-24-24SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 87311-24-24SR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 87311-24-24SR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 87311-24-24SR, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 2P/24, C61/24, AN, STR, manufacturer part number 87311-24-24SR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 5.354 |
| A dimension MM | 136.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Compatible hoses | EH080, EH081, EH084, H0084, H0554, H345, H6008, H6009, H9568, H9699 |
| Construction Style | Crimp |
| End size 1 | -24 |
| End size 2 | -24 |
| End Type 1 | Split flange code 61 |
| End Type 2 | Line/hose/tube |
| Hose cut off factor IN | 2.677 |
| Hose cut off factor MM | 68.000 |
| Hose size | -24 |
| Inside diameter IN | 1.259 |
| Inside diameter MM | 32.000 |
| Product height in | 2.374 |
| Product height mm | 60.300 |
| Product length in | 5.354 |
| Product length mm | 135.999 |
| Product material | 304 Stainless steel |
| Product width in | 2.374 |
| Product width mm | 60.3 |
| Thread sealant | No |
| Working pressure max BAR | 206 |
| Working pressure max PSI | 2950 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
