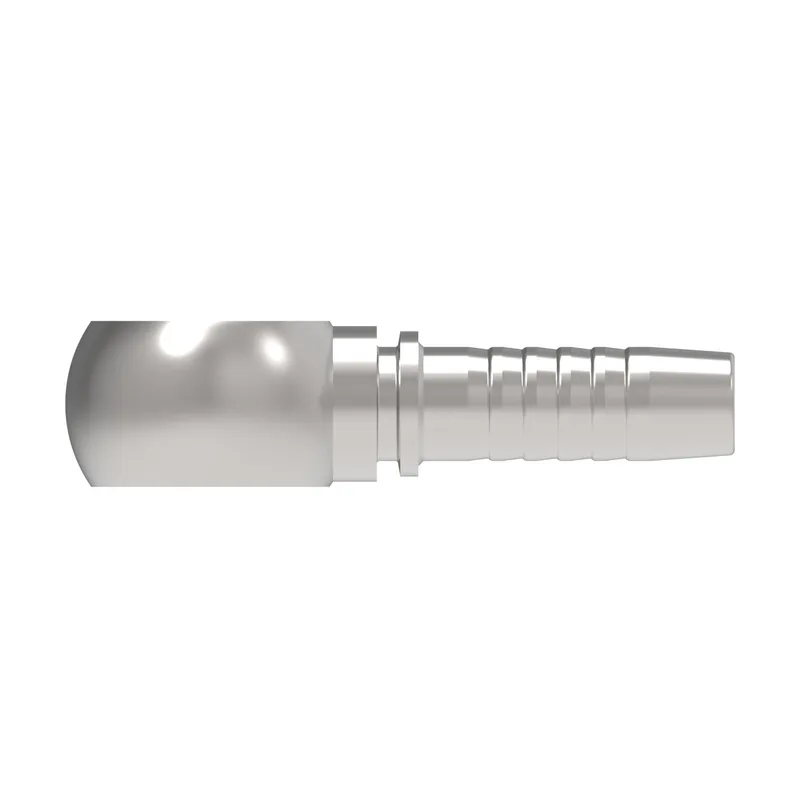

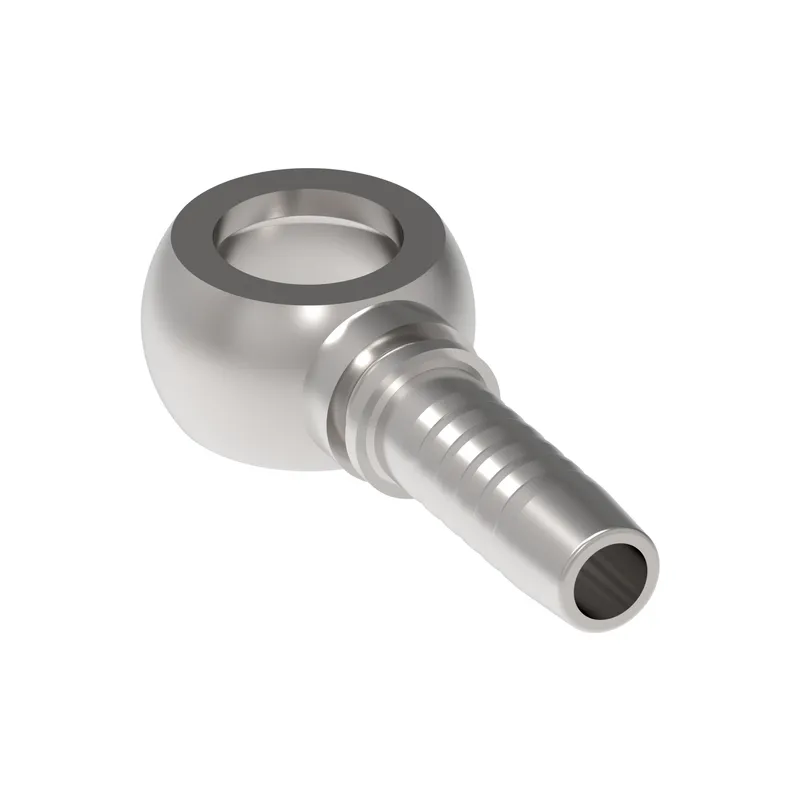

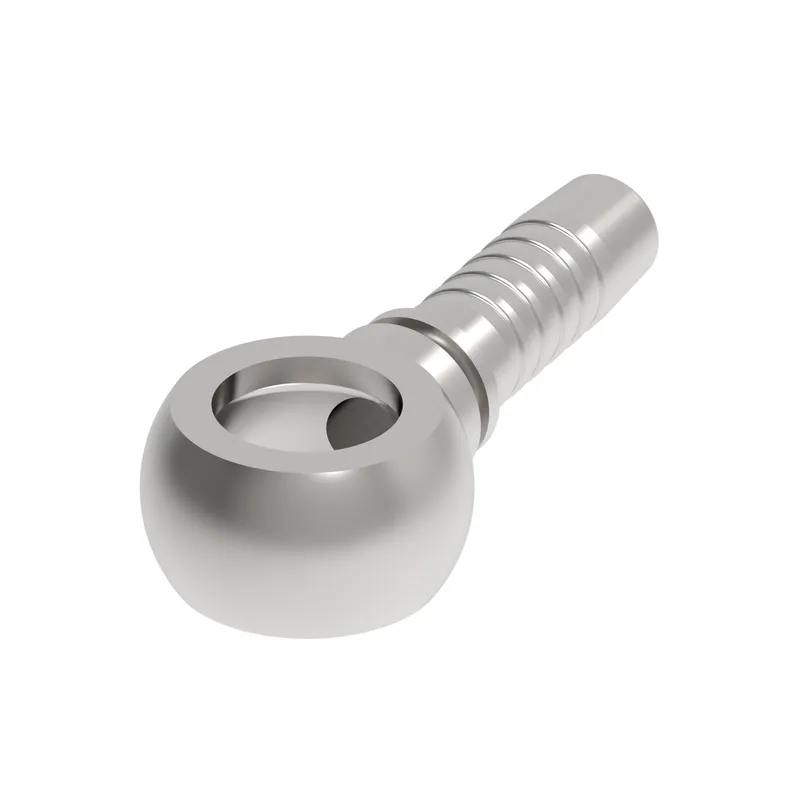

HOSE NIPPLE ASSY,2P/12,BANJO/12,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 72011-12-12Z be shipped?
72011-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 72011-12-12Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 72011-12-12Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 72011-12-12Z, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/12,BANJO/12,CS,STR, manufacturer part number 72011-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.775 |
| A dimension MM | 70.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.050 |
| Construction Style | Crimp |
| End size 1 | -12 |
| End size 2 | -12 |
| End Type 1 | Banjo DIN 7642 Form B, L.D. |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 1.259 |
| Hose cut off factor MM | 32.000 |
| Hose size | -12 |
| Inside diameter IN | 0.590 |
| Inside diameter MM | 15.000 |
| Product height in | 1.220 |
| Product height mm | 31.001 |
| Product length in | 3.720 |
| Product length mm | 94.501 |
| Product material | Carbon steel |
| Product width in | 1.890 |
| Product width mm | 48.001 |
| Thread sealant | No |
| Thread size 1 | G 3/4 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
