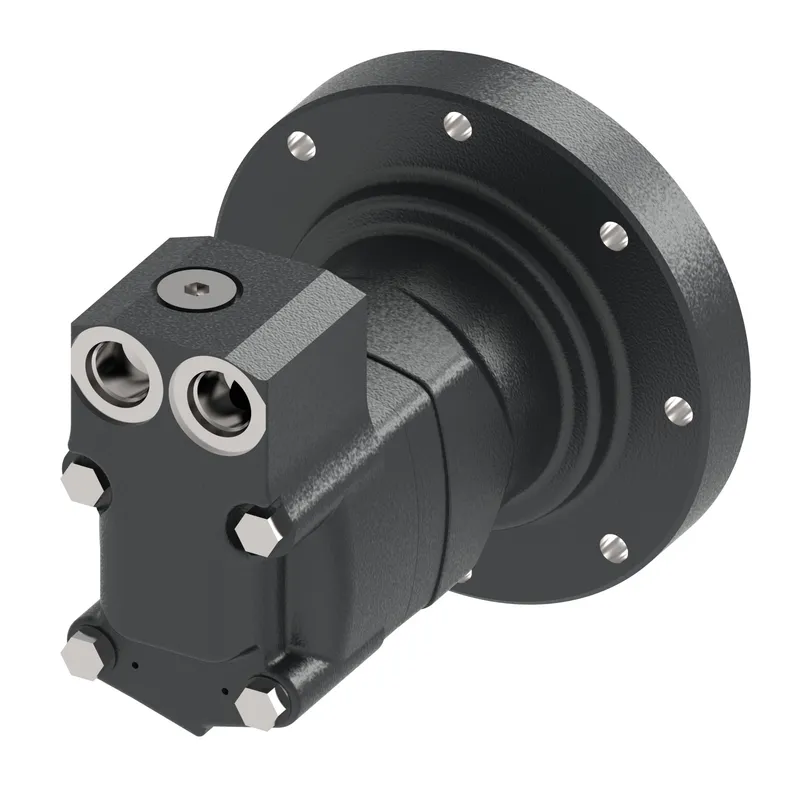

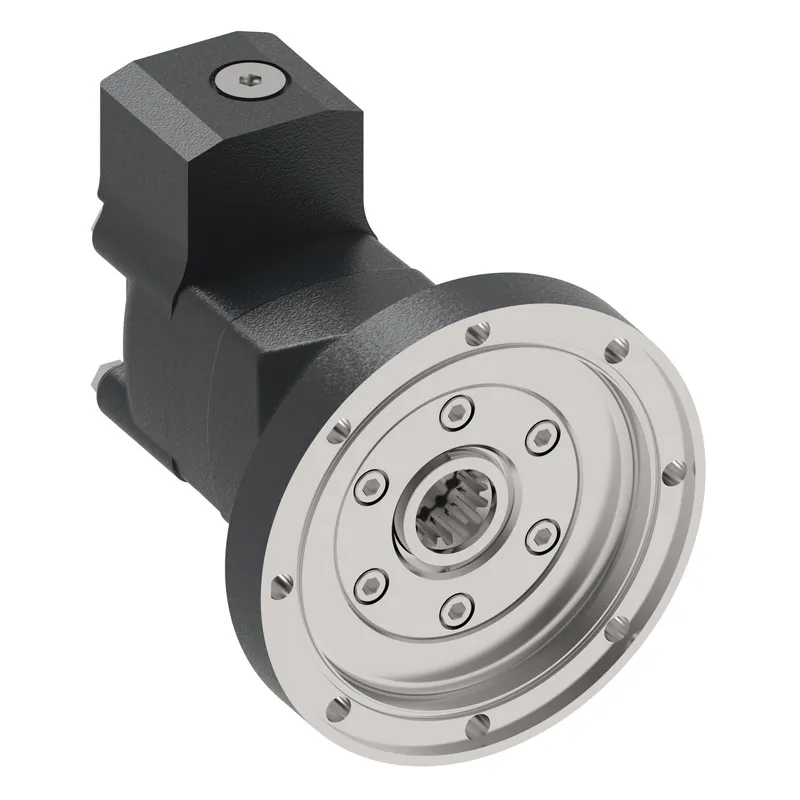

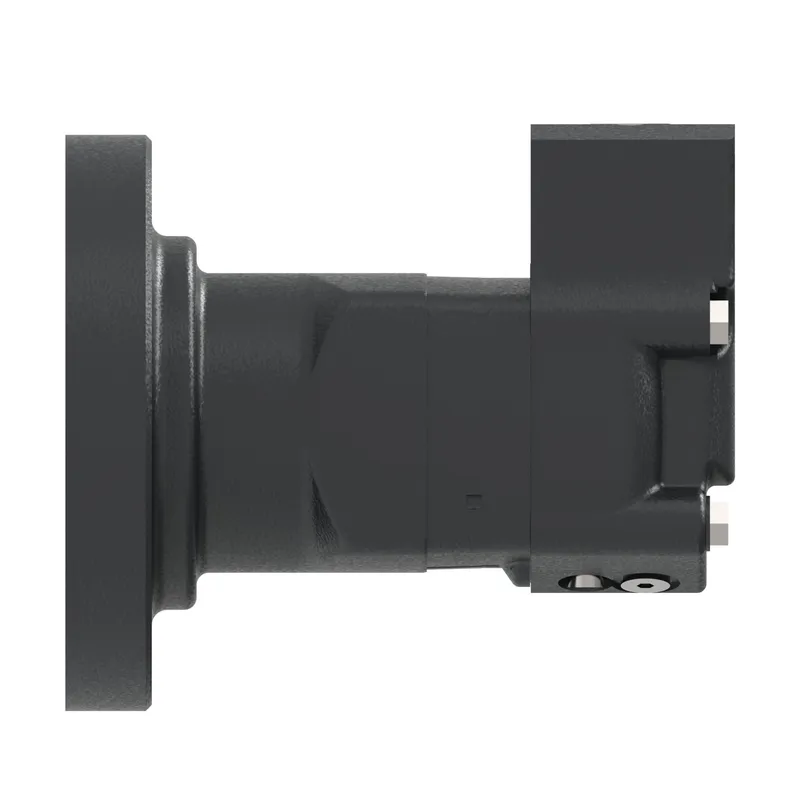

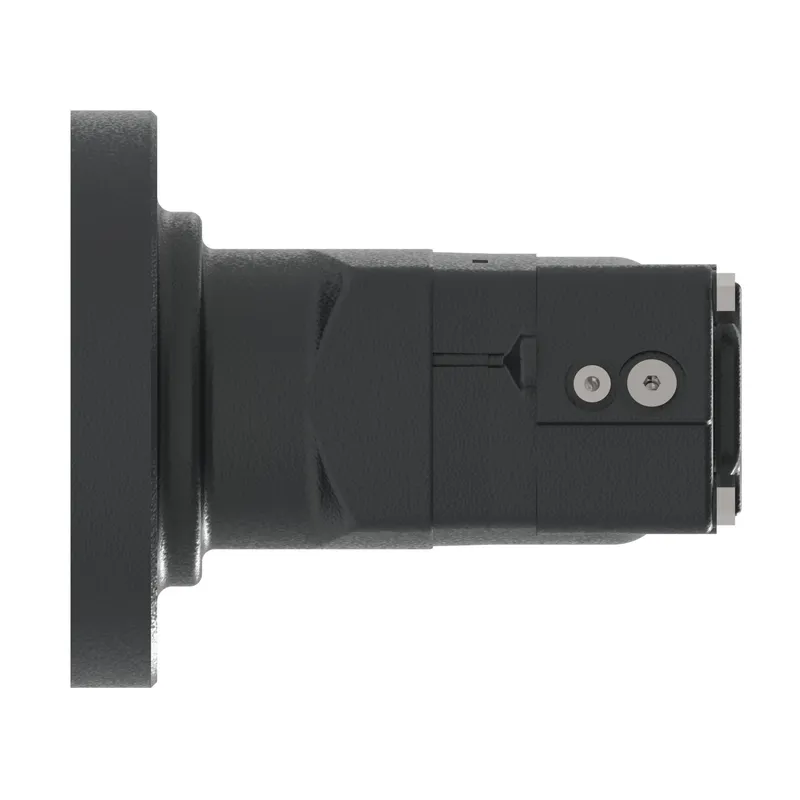

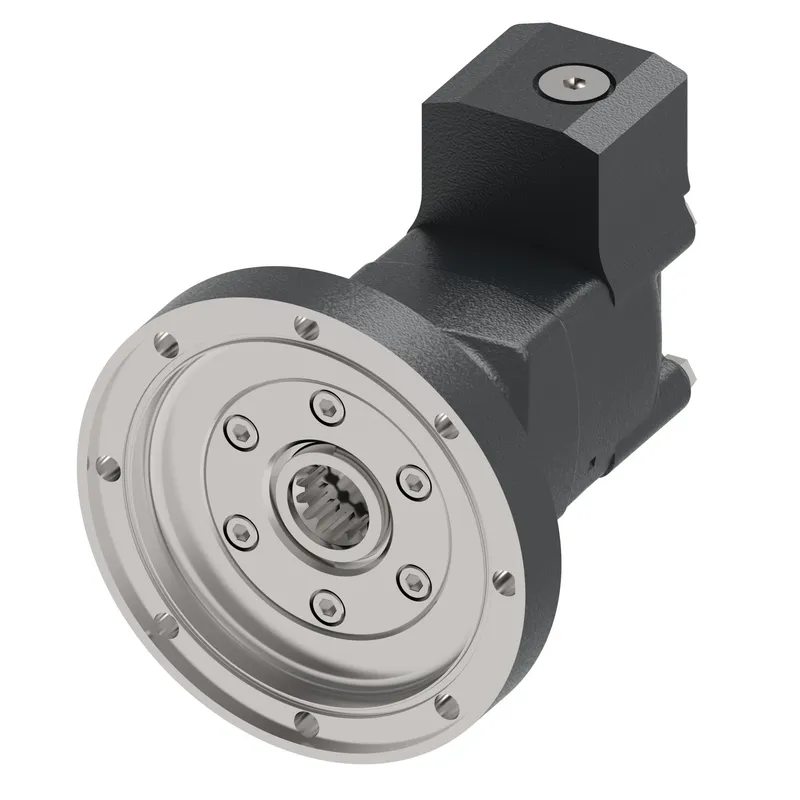

MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080ZB96BH0100010000000ABACB
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 629AG00336A be shipped?
629AG00336A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 629AG00336A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 629AG00336A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 629AG00336A, subject to availability and destination.
Danfoss MOTOR-ORBITAL,XL2 SERIES 80 [4.92], MC2080ZB96BH0100010000000ABACB, manufacturer part number 629AG00336A. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MC2080ZB96BH0100010000000ABACB |
| Motor Series | XL2 Series |
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Motor size | 80 |
| Geometric displacement [cm3/r [in3/r]] | 80.1 [4.89] |
| Motor type | Standard |
| Motor function | Standard |
| Mounting flange type | Special |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 178.0 x # , 165.0, 10.5 [7.00 x #, 6.50, 0.41] - Spec. Component |
| Shaft type | Internal splined |
| Shaft dimension | Dia. 1.75 inch, 14T - Spec. Component |
| Shaft Key | n/a |
| Main port thread type | UN / UNF |
| Main port style | Endport - aligned |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port - Spec. Component |
| Drain Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint information | Painted, Black |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | Z331-19 |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
| Check valve function | Yes |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Customized |
| Brand | Danfoss |
| Sub brand | Xcel |
