HOSE FTG, 1P/20, STLOK-M/20, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 60011Y-20-20DZ be shipped?
60011Y-20-20DZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 60011Y-20-20DZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 60011Y-20-20DZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 60011Y-20-20DZ, subject to availability and destination.

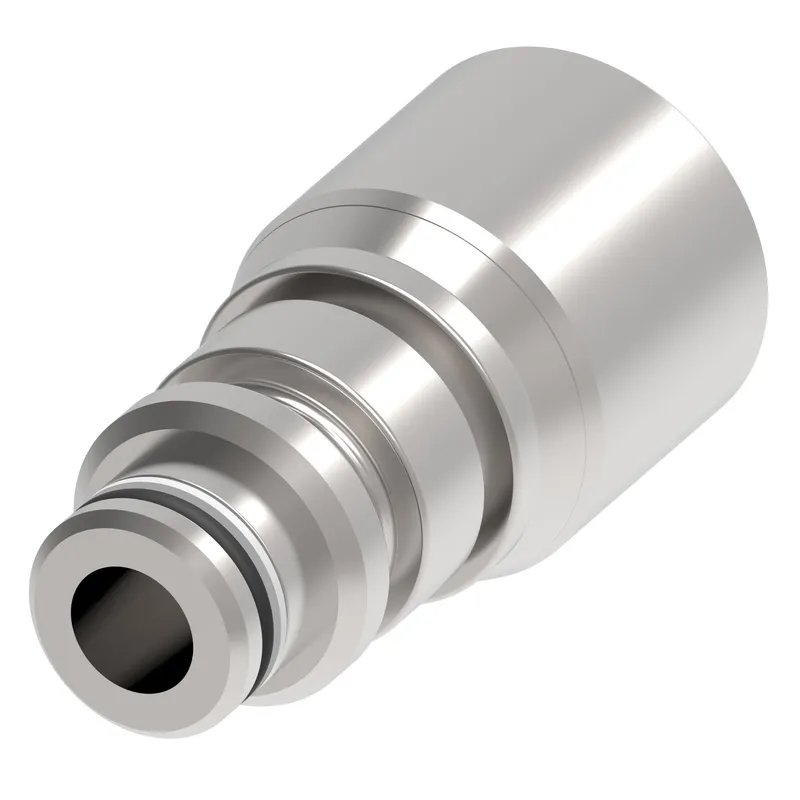

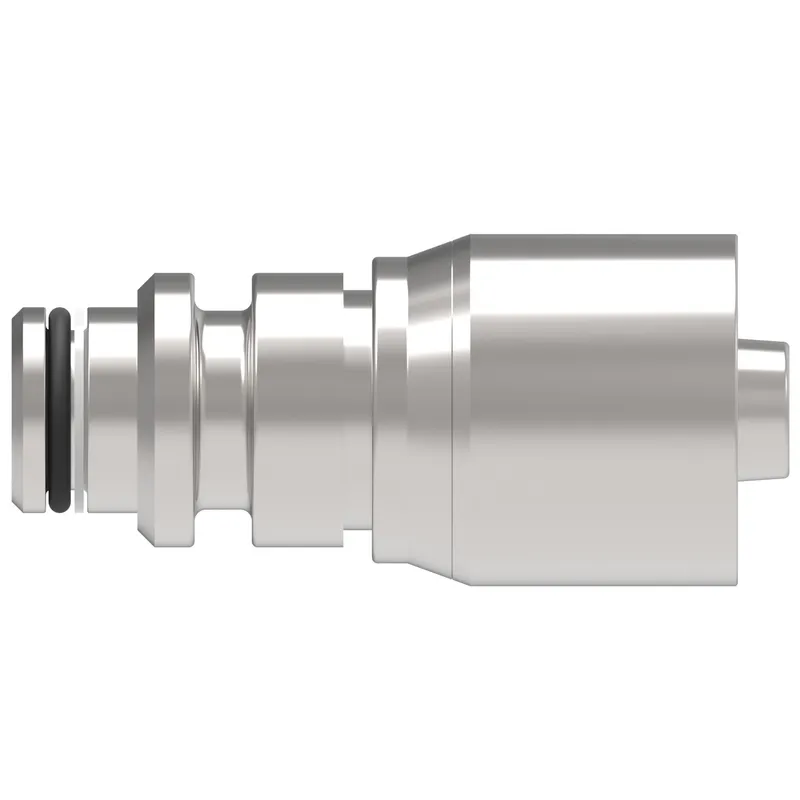

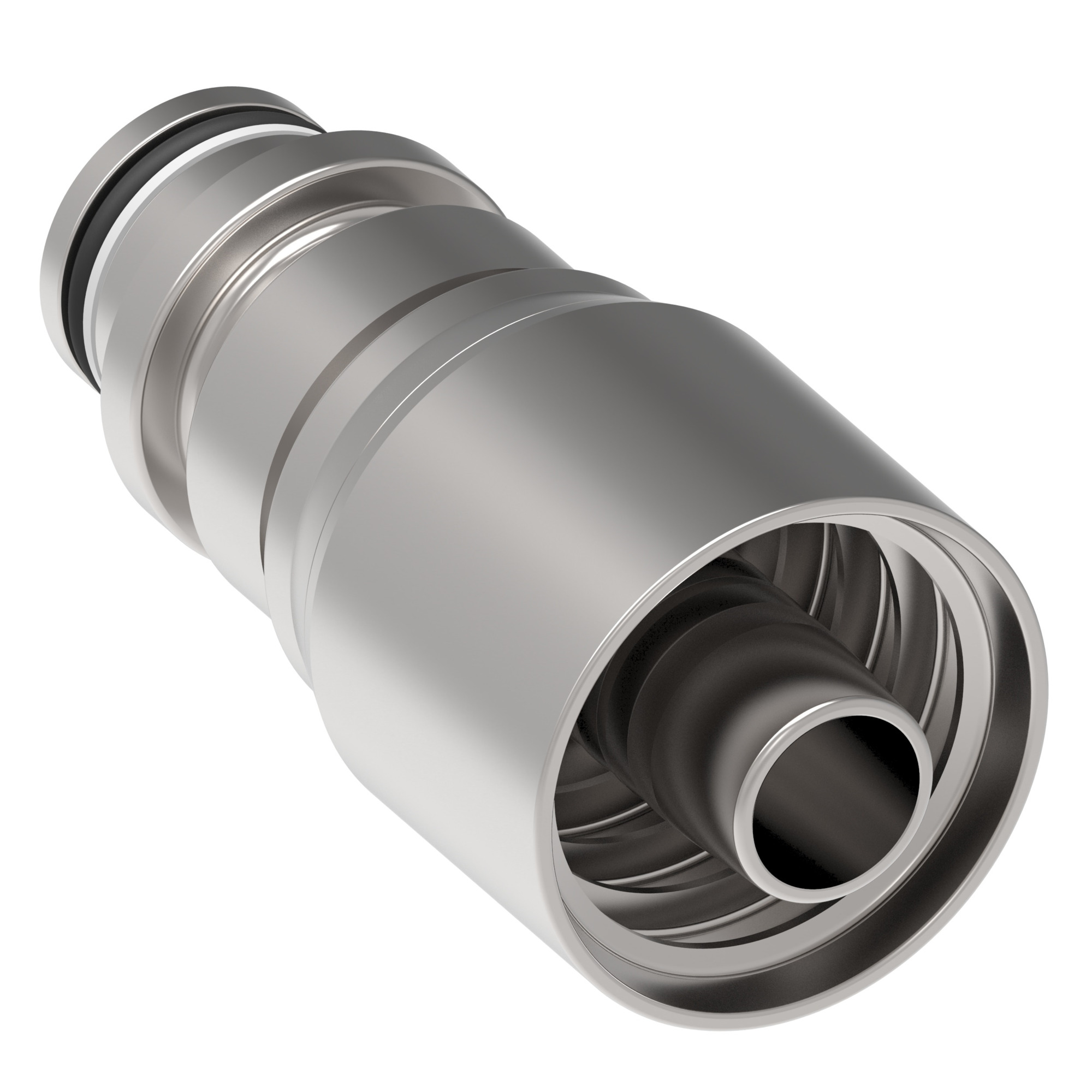

Danfoss HOSE FTG, 1P/20, STLOK-M/20, CS, STR, manufacturer part number 60011Y-20-20DZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.212 |
| A dimension MM | 107.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.750 |
| Construction Style | Crimp |
| End size 1 | -20 |
| End Type 1 | Male staplok |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 2.086 |
| Hose cut off factor MM | 53.000 |
| Hose size | -20 |
| Inside diameter IN | 0.984 |
| Inside diameter MM | 25.000 |
| Product height in | 1.811 |
| Product height mm | 46.000 |
| Product length in | 4.212 |
| Product length mm | 107.000 |
| Product material | Carbon steel |
| Product width in | 1.811 |
| Product width mm | 46 |
| Thread sealant | No |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
