HOSE FTG, 2P/10, STPIPE/20, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 50011-20-10Z be shipped?
50011-20-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 50011-20-10Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 50011-20-10Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 50011-20-10Z, subject to availability and destination.

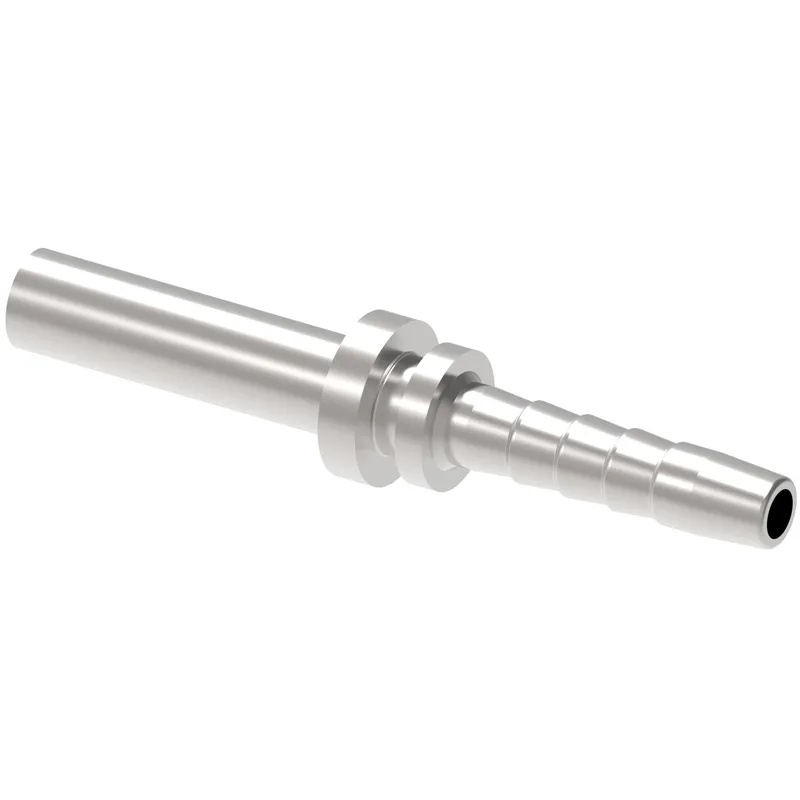

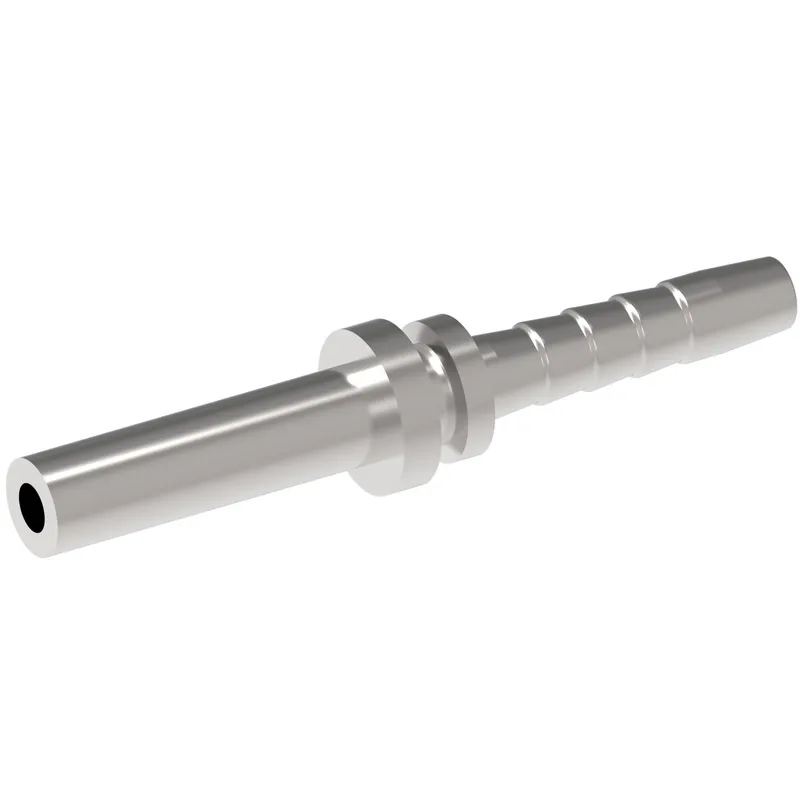

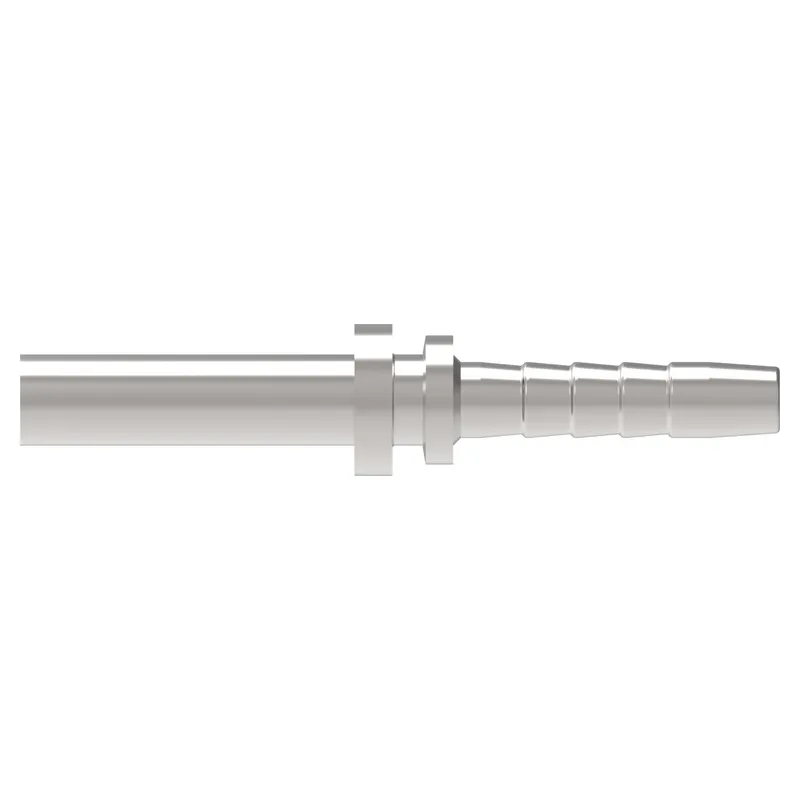

Danfoss HOSE FTG, 2P/10, STPIPE/20, CS, STR, manufacturer part number 50011-20-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.385 |
| A dimension MM | 86.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.860 |
| Compatible hoses | FC686 |
| Construction Style | Crimp |
| End size 1 | -20 |
| End Type 1 | Standpipe Metric |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 2.047 |
| Hose cut off factor MM | 52.000 |
| Hose size | -10 |
| Inside diameter IN | 0.472 |
| Inside diameter MM | 12.000 |
| Product height in | 0.944 |
| Product height mm | 25.000 |
| Product length in | 3.385 |
| Product length mm | 86.000 |
| Product material | Carbon steel |
| Product width in | 0.984 |
| Product width mm | 25 |
| Thread sealant | No |
| Working pressure max BAR | 160 |
| Working pressure max PSI | 2300 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
