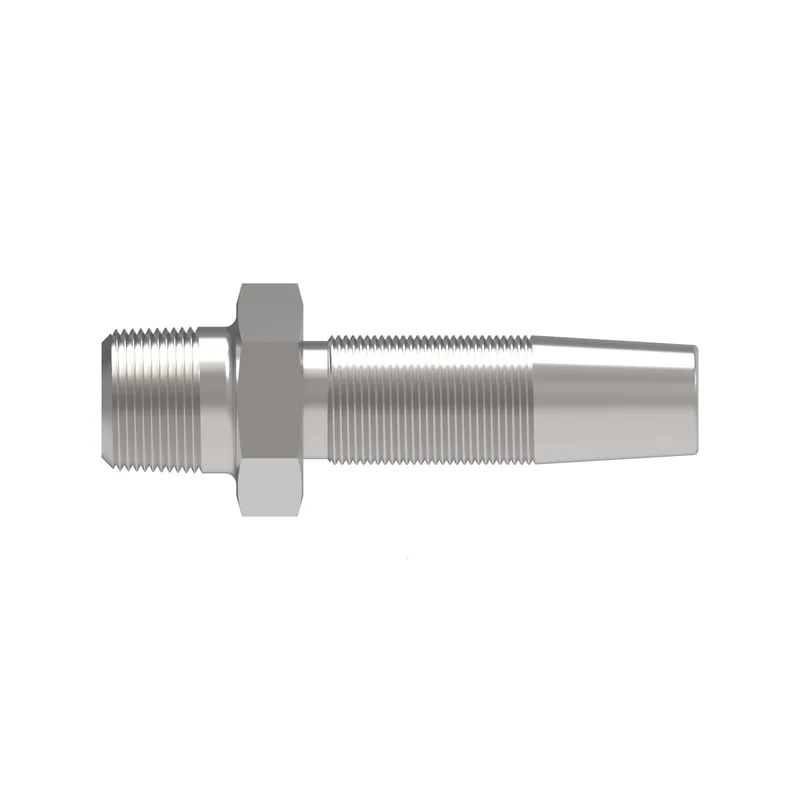

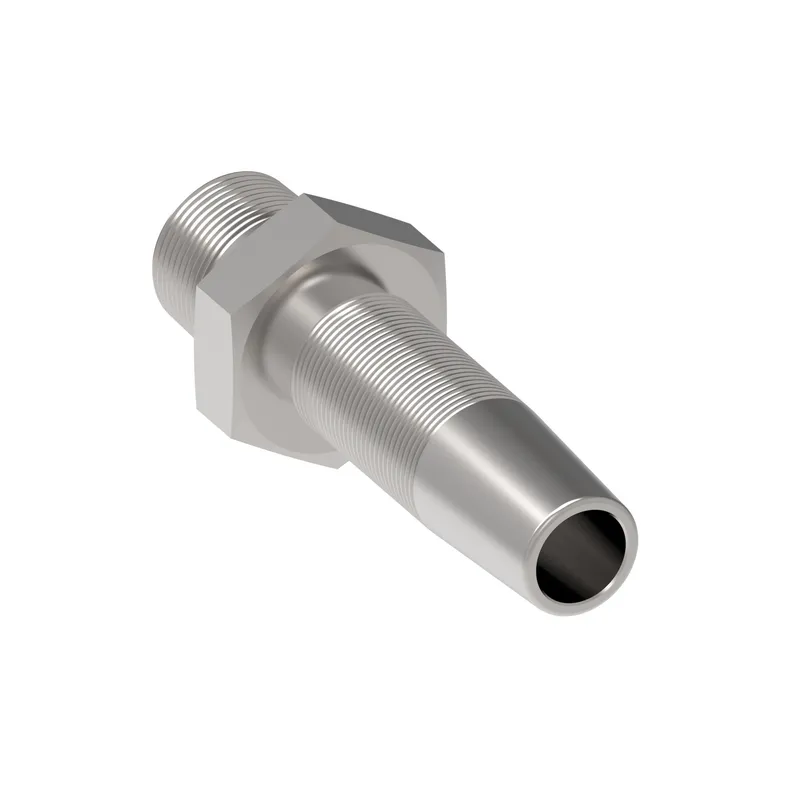

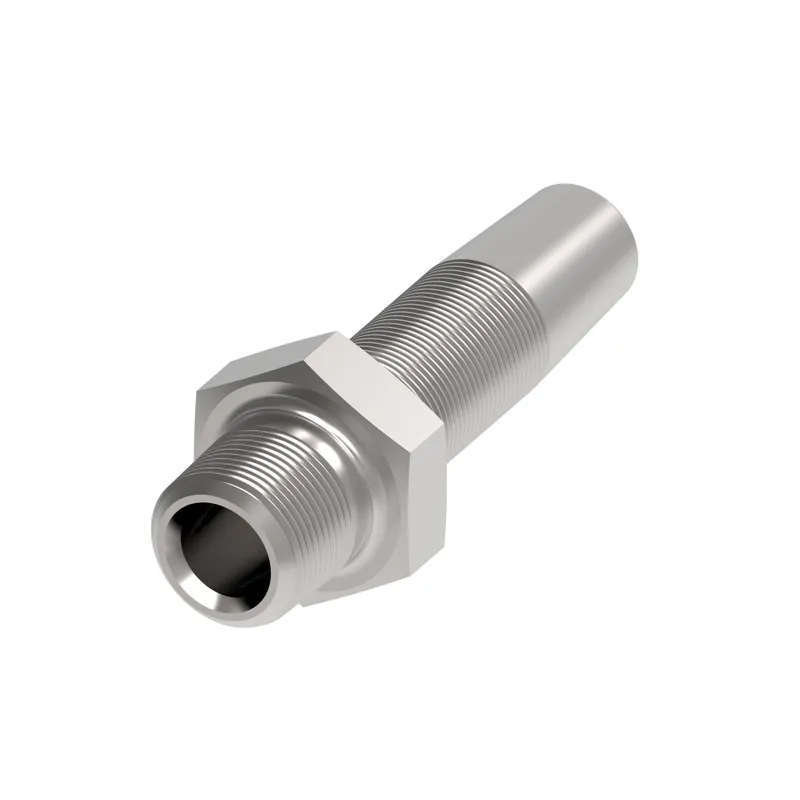

HOSE INSERT, 1R/16, NPTF-M/16, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 4202-16-16S be shipped?
4202-16-16S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 4202-16-16S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 4202-16-16S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 4202-16-16S, subject to availability and destination.
Danfoss HOSE INSERT, 1R/16, NPTF-M/16, CS, STR, manufacturer part number 4202-16-16S. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.390 |
| A dimension MM | 111.500 |
| Angle shape | Straight |
| Compatible hose ID IN | 1.000 |
| Construction Style | Reusable |
| End size 1 | -16 |
| End Type 1 | Male pipe (NPTF) |
| Hex size 2 IN | 1.380 |
| Hex size 2 MM | 35.100 |
| Hose cut off factor IN | 3.230 |
| Hose cut off factor MM | 82.000 |
| Inside diameter IN | 0.8200 |
| Inside diameter MM | 20.8000 |
| Product height in | 1.344 |
| Product height mm | 34.140 |
| Product length in | 4.388 |
| Product length mm | 111.460 |
| Product width in | 1.375 |
| Product width mm | 34.925 |
| Thread sealant | Yes |
| Working pressure max BAR | 276.00 |
| Working pressure max PSI | 4000.00 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
