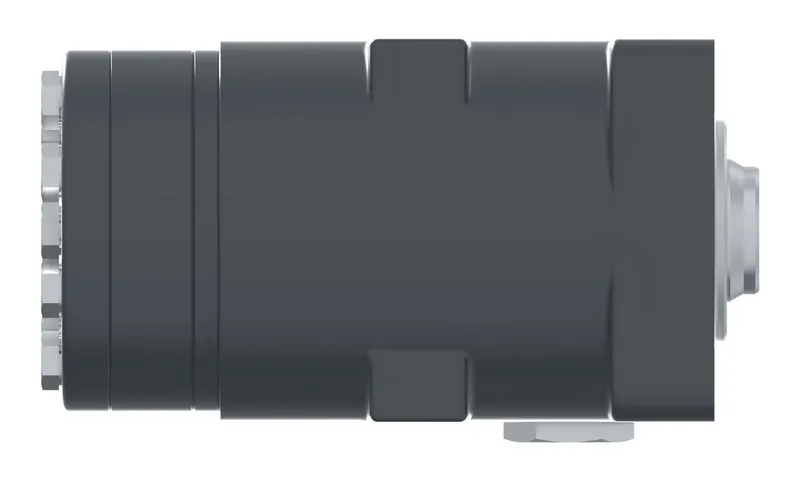

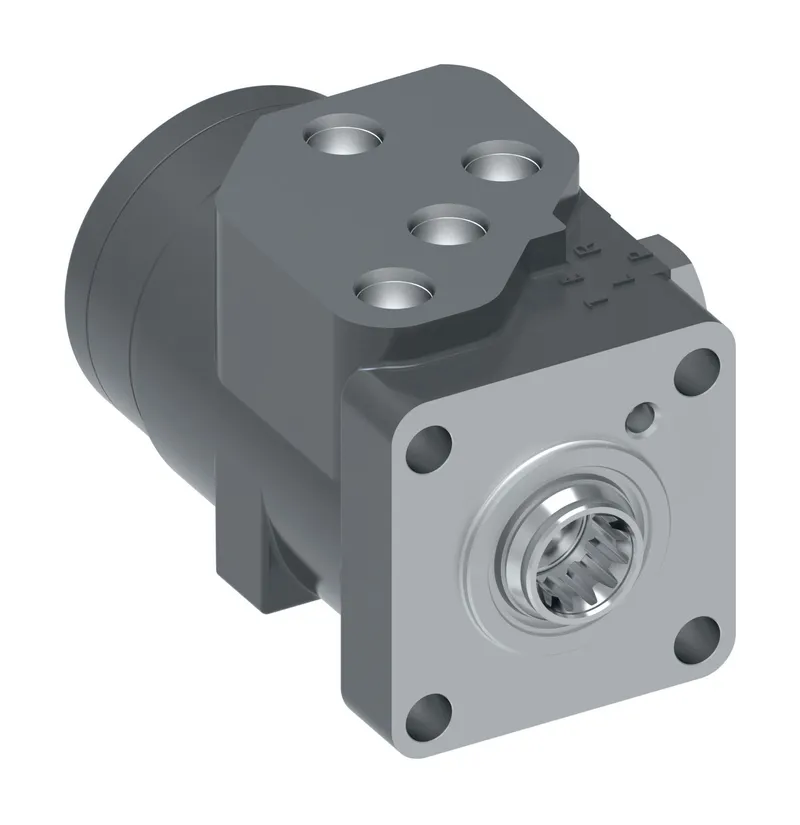

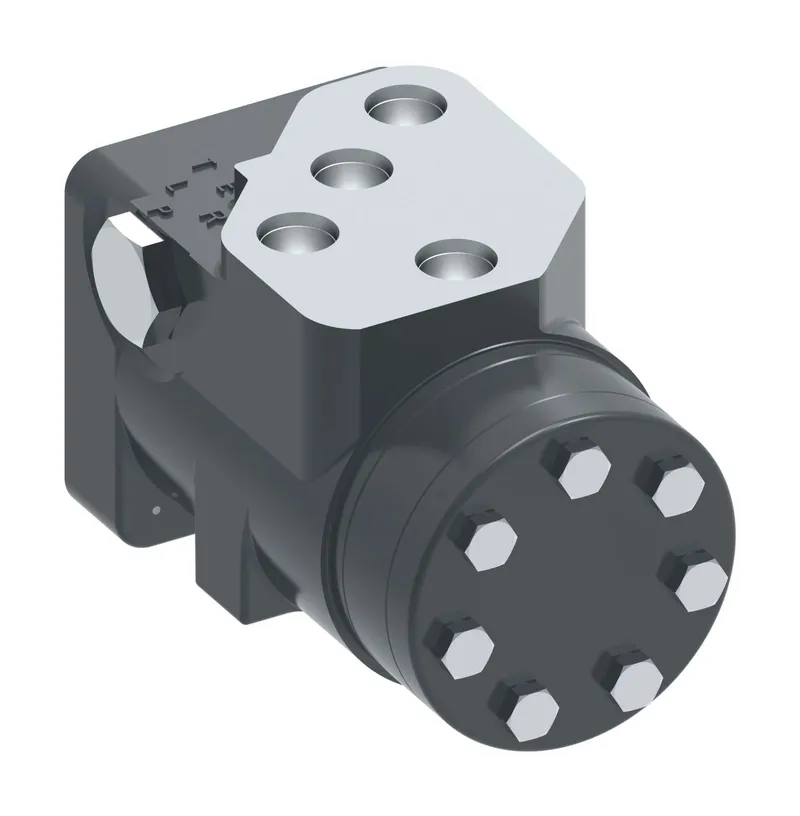

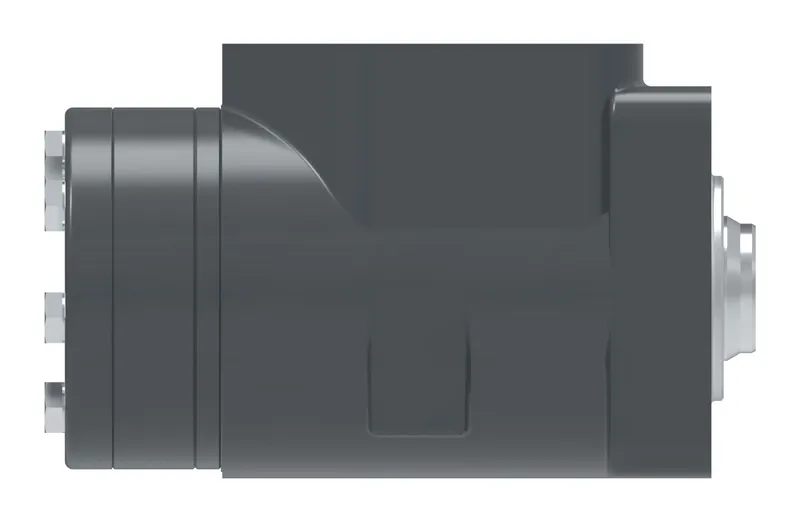

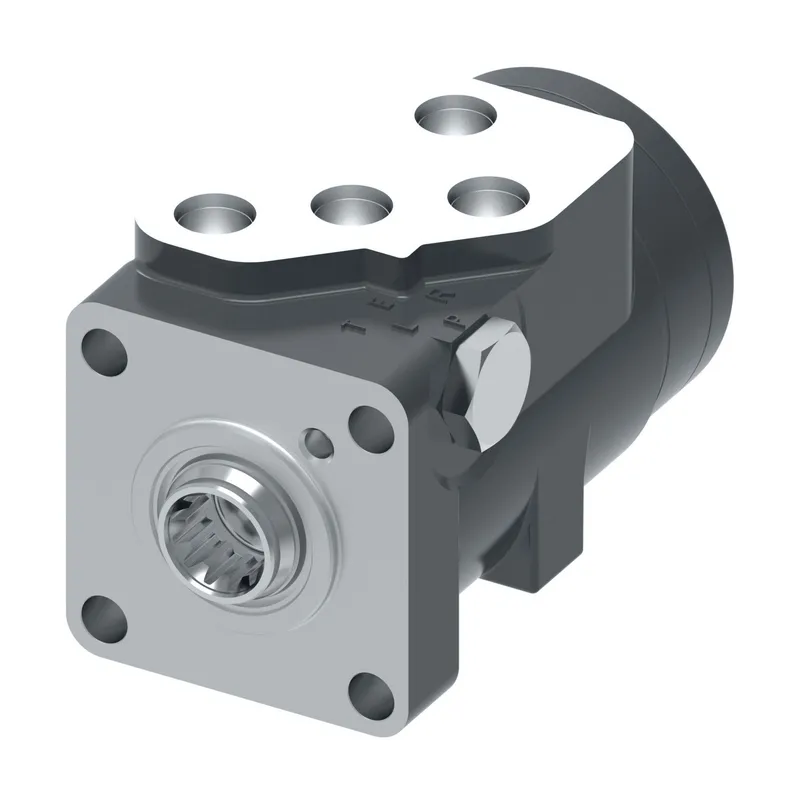

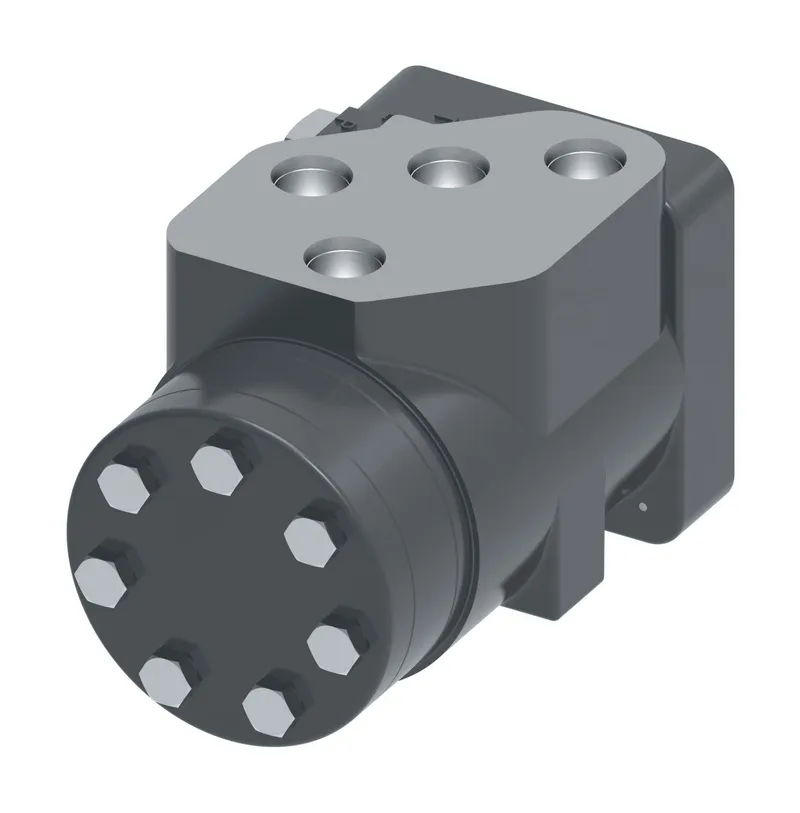

SERIES 5 74 ON STEERING UNIT

Name: SERIES 5 74 ON STEERING UNIT
Brand: Danfoss (Drives)
SKU: 291-1028-003

MPN: 291-1028-003 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Hydraulic steering units
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 291-1028-003 be shipped?

291-1028-003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 291-1028-003 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 291-1028-003 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 291-1028-003, subject to availability and destination.

Danfoss SERIES 5 74 ON STEERING UNIT, manufacturer part number 291-1028-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additonal Ports	NONE
Brand	Danfoss
Cylinder Relief Valve Setting	None
Design code	3rd Design
Displacement	73.8 cm3/r [4.50 in3/r]
Flow Amplification	None
Fluid Type	Reference bulletin 3-401
Identification	CASE NEW HOLLAND PART NUMBER ON NAMEPLATE
Inlet or LS relief setting	140BAR[2030 PSI]
Inlet Pressure Rating	140 BAR [2030 PSI]
Input Torque	Standard
Load Circuit	Non reaction
Mechanical Interface	INTERNAL INVOLUTE SPLINE 12 TOOTH 16/32 DP30 DEGREE PA
Mounting Threads	NONE ON PORT FACE 4X M10 x 1.5-6H ONMOUNTING FACE
Neutral Circuit	Open center
Nominal Flow Rating	19 LPM [5.00 GPM]
P,T,L, AND R PORT SIZE	SIDE PORTED 4X .5625-18 UNF-2B SAE O-RING PORT
PAINTS & PACKAGING	BLACK PAINT
Product Series	Series 5 Steering Unit
Return Pressure Rating	10 BAR [145 PSI]
Special Application Options	None
Special Features	None
Valve Options	IRV,MSCV
