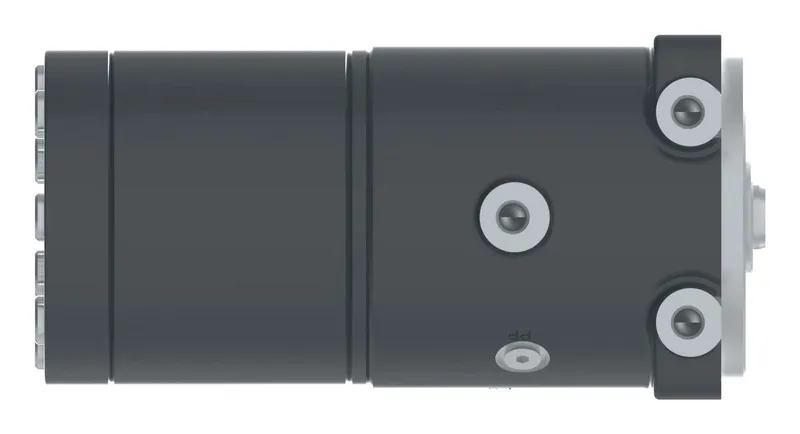

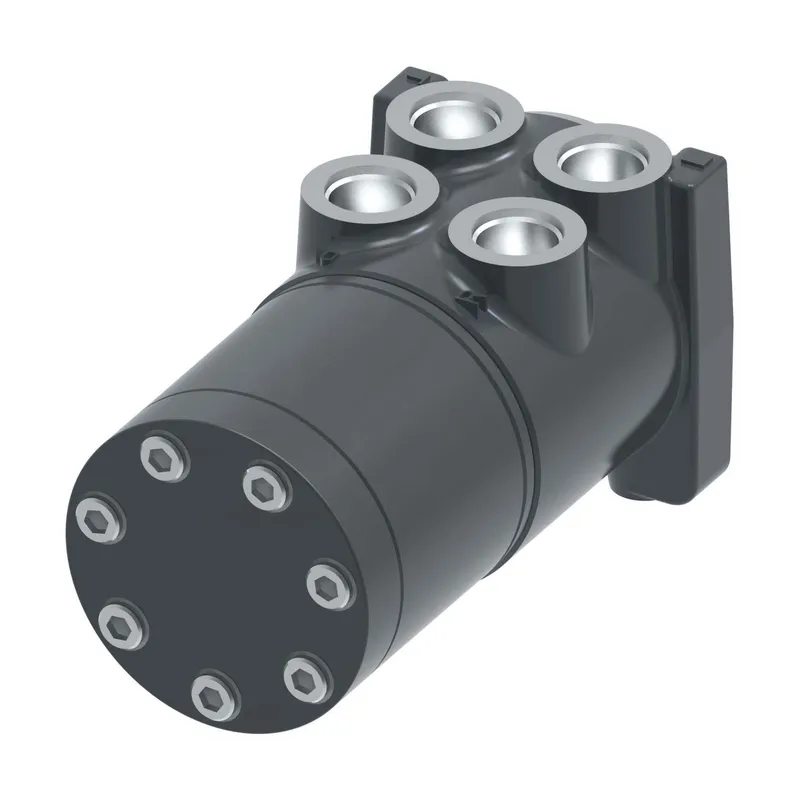

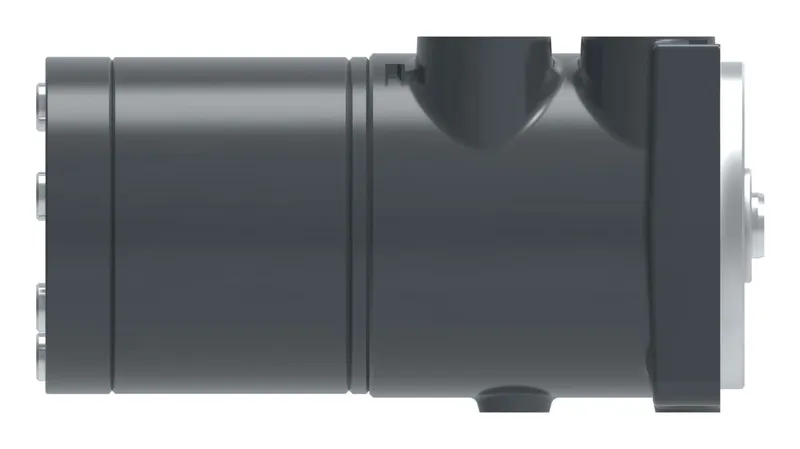

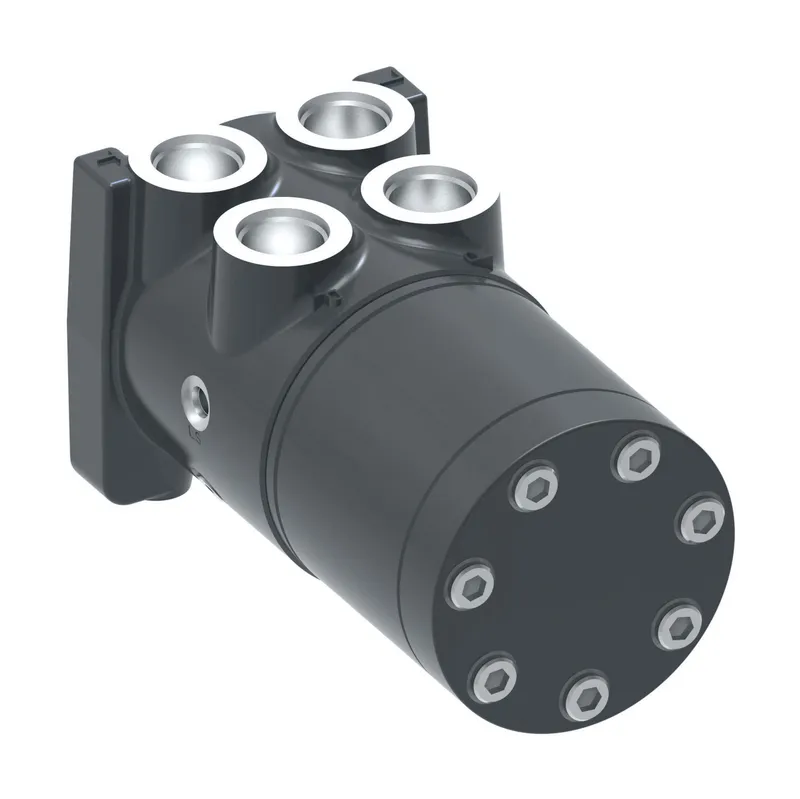

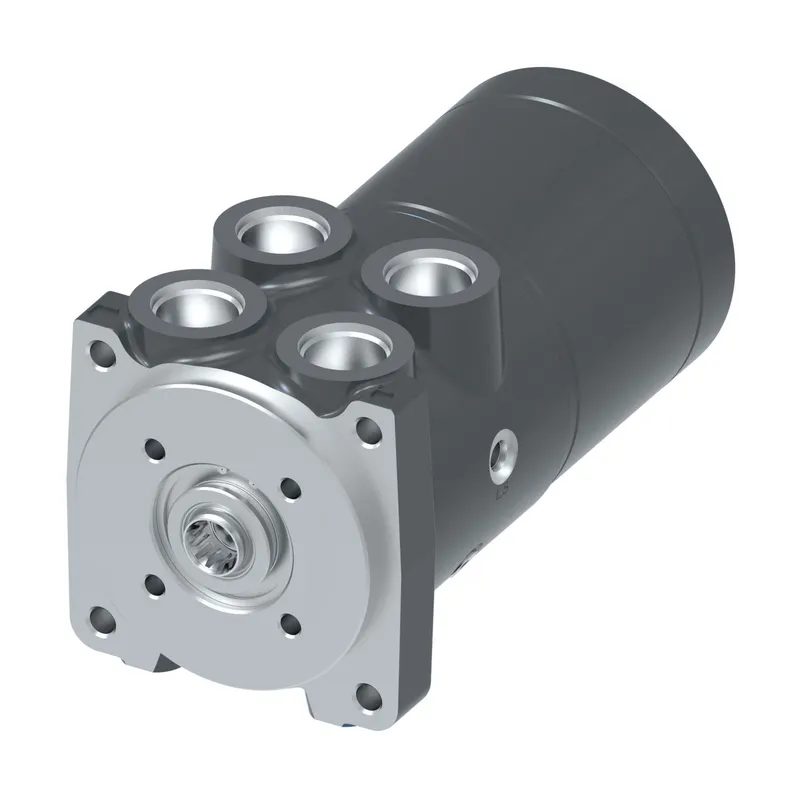

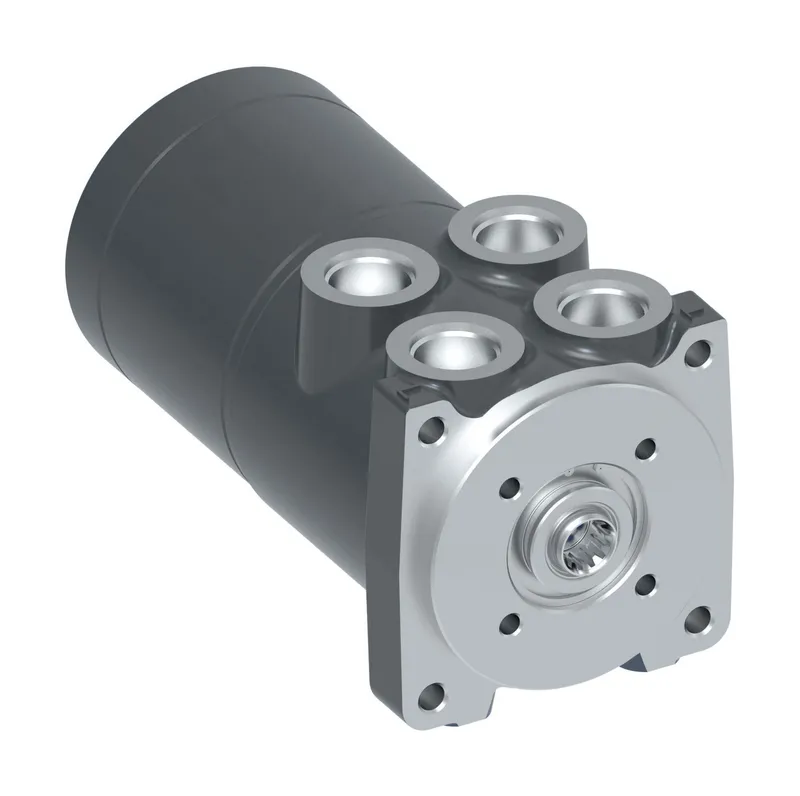

REPLACED BY 281-1002-004, ABY86B740AA000000GAAA3A0AA00C
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hydraulic steering units |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 281-1002-003 be shipped?
281-1002-003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 281-1002-003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 281-1002-003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 281-1002-003, subject to availability and destination.
Danfoss REPLACED BY 281-1002-004, ABY86B740AA000000GAAA3A0AA00C, manufacturer part number 281-1002-003. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Additional ports | None |
| Brand | Danfoss |
| Cylinder relief setting | None |
| Design code | 3 |
| Displacement | 1560 cm3/r [95.0 in3/r] |
| Flow amplification | None |
| Fluid type | Per Danfoss bulletin 3-401 |
| Identification | Danfoss number on tag |
| Inlet pressure rating | 241 bar [3500 lbf / in2]-ductile housing |
| Inlet relief setting | None |
| Input torque | Standard |
| Load circuit | Non reaction |
| Model Code 1 | ABY86B740AA000000GAAA3A0AA00C |
| Mounting threads | 4x 3/8-16 on mount face |
| Neutral circuit | Open center |
| Nominal flow rating | 151 L/min [40.00 gal/min] |
| P,T,L, and R port size | 1.3125-12 sae o-ring port |
| Paint and packaging | No paint |
| Product Series | ABY Series 40 |
| Return pressure rating | 21 bar [305 lbf/in2] maximum |
| Special application option | None |
| Special features | None |
| Valve options | None |
