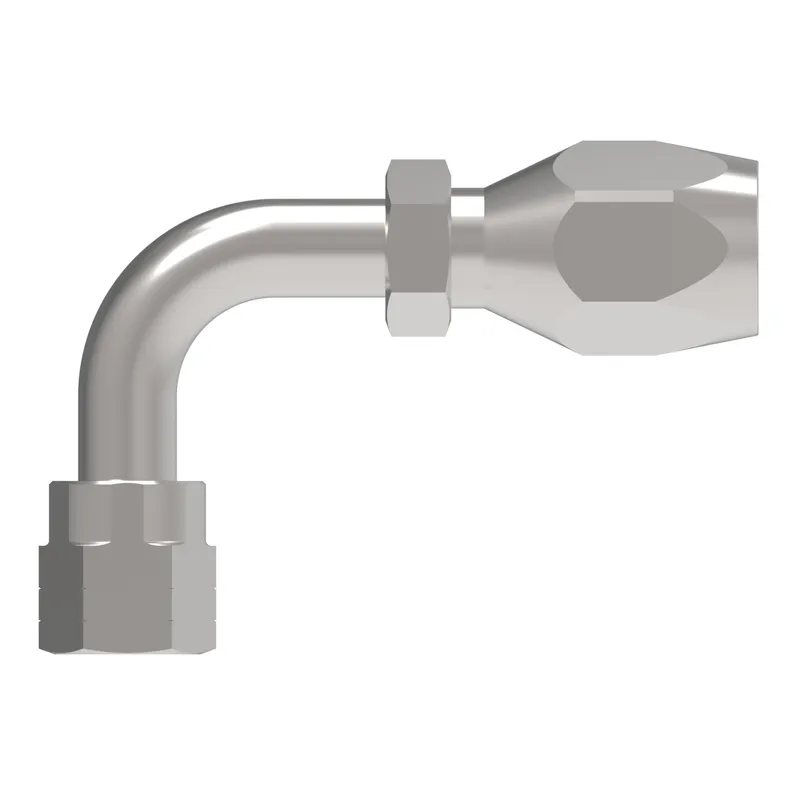

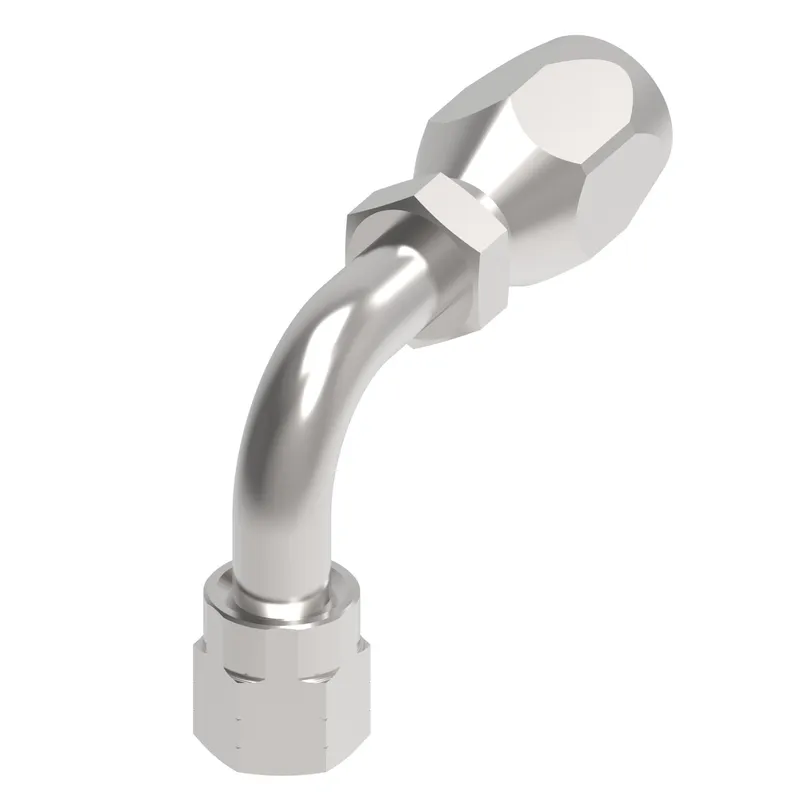

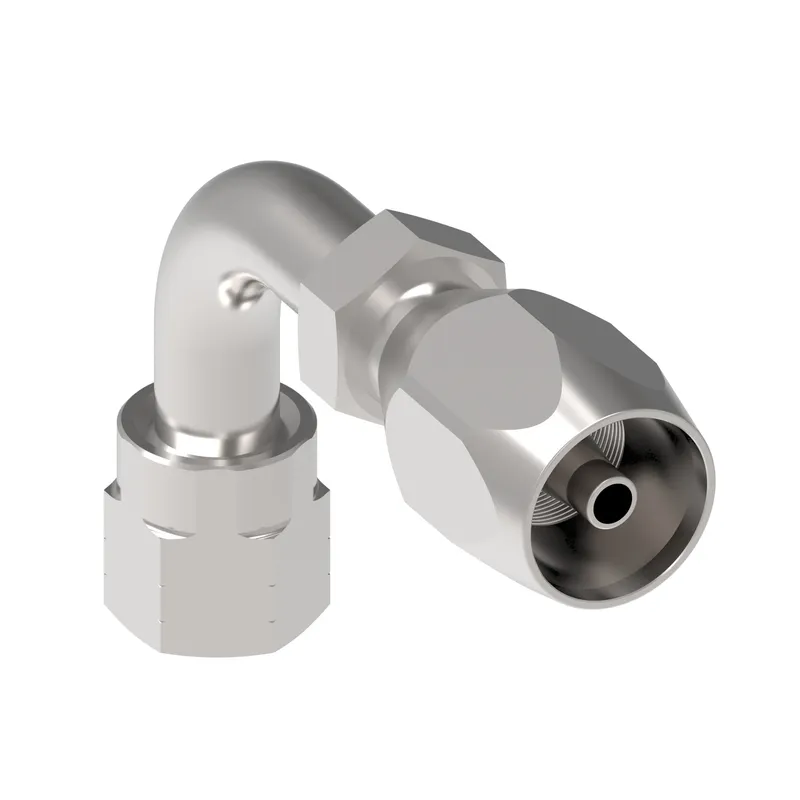

HOSE NIPPLE ASSY,1P/12,JIC-F/12,CS,90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 26798D-12-12LTZ be shipped?
26798D-12-12LTZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 26798D-12-12LTZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 26798D-12-12LTZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 26798D-12-12LTZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/12,JIC-F/12,CS,90D, manufacturer part number 26798D-12-12LTZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.232 |
| A dimension MM | 107.500 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.748 |
| Compatible hose ID MM | 19.050 |
| Construction Style | Reusable |
| Drop dimension IN | 0.944 |
| Drop dimension MM | 63.50 |
| End size 1 | -12 |
| End size 2 | -12 |
| End Type 1 | Female 37 degree swivel |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.062 |
| Hex size 1 MM | 27.000 |
| Hex size 2 IN | 1.260 |
| Hex size 2 MM | 32.004 |
| Hose cut off factor IN | 2.712 |
| Hose cut off factor MM | 68.900 |
| Hose size | -12 |
| Inside diameter IN | 0.511 |
| Inside diameter MM | 13.000 |
| Product height in | 3.622 |
| Product height mm | 91.998 |
| Product length in | 5.374 |
| Product length mm | 136.500 |
| Product material | Carbon steel |
| Product width in | 1.260 |
| Product width mm | 32.004 |
| Thread sealant | No |
| Working pressure max BAR | 330 |
| Working pressure max PSI | 4800 |
