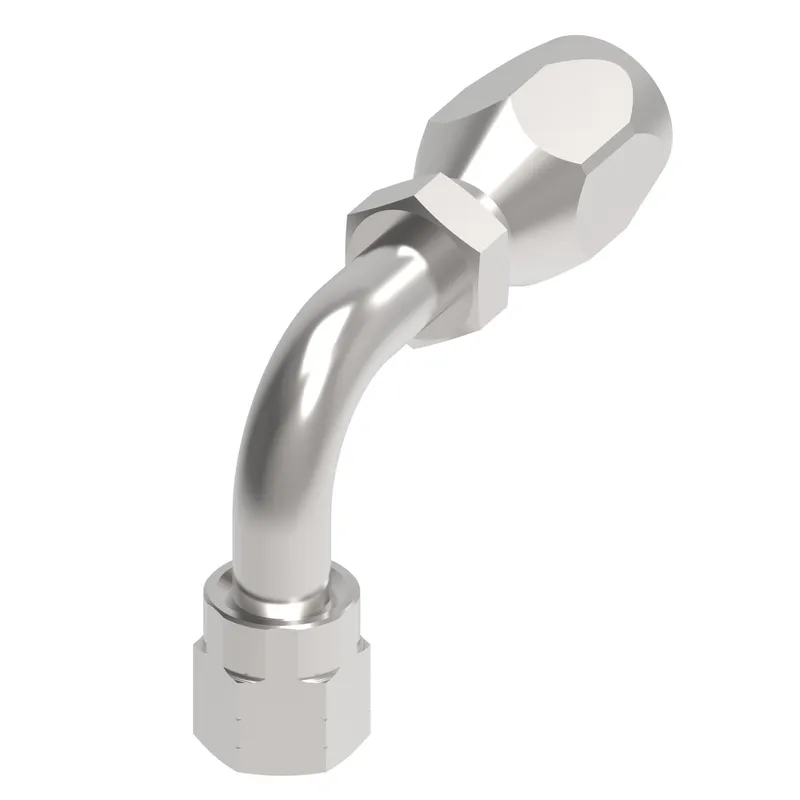

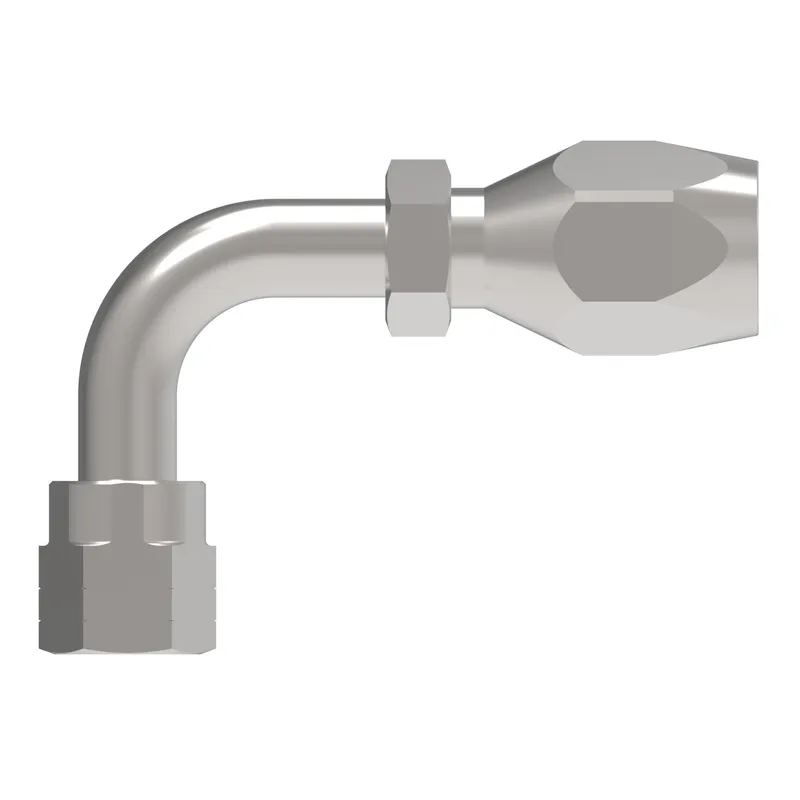

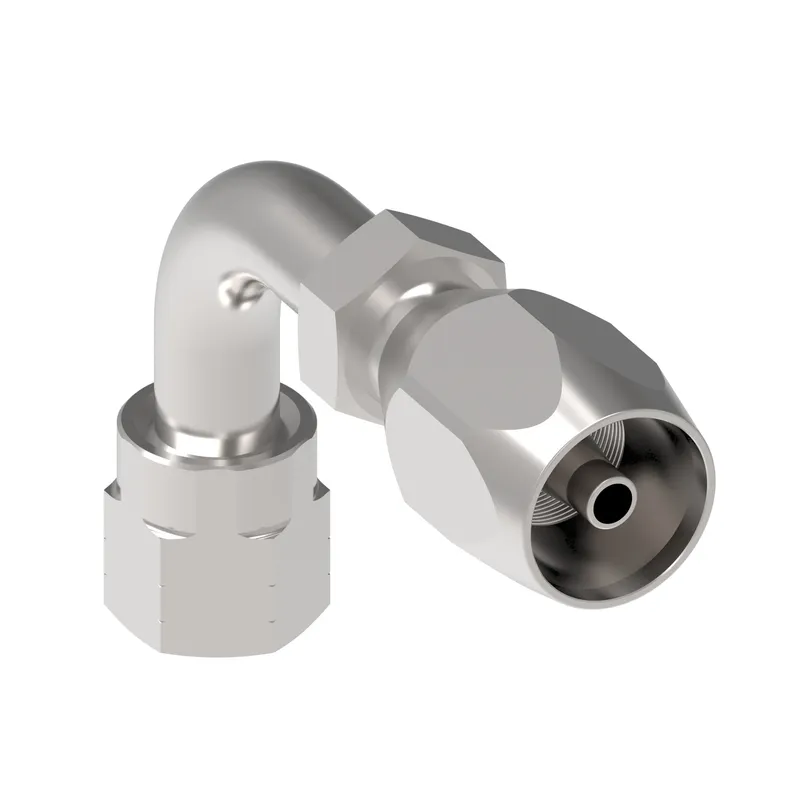

HOSE NIPPLE ASSY,1P/04,JIC-F/04,CS,90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 26798D-04-04LTZ be shipped?
26798D-04-04LTZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 26798D-04-04LTZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 26798D-04-04LTZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 26798D-04-04LTZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/04,JIC-F/04,CS,90D, manufacturer part number 26798D-04-04LTZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.047 |
| A dimension MM | 52.000 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.251 |
| Compatible hose ID MM | 6.350 |
| Construction Style | Reusable |
| Drop dimension IN | 2.047 |
| Drop dimension MM | 33.30 |
| End size 1 | -4 |
| End size 2 | -4 |
| End Type 1 | Female 37 degree swivel |
| End Type 2 | Line/hose/tube |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.551 |
| Hex size 1 MM | 14.000 |
| Hex size 2 IN | 0.551 |
| Hex size 2 MM | 13.995 |
| Hose cut off factor IN | 1.377 |
| Hose cut off factor MM | 35.000 |
| Hose size | -4 |
| Inside diameter IN | 0.125 |
| Inside diameter MM | 3.200 |
| Product height in | 1.940 |
| Product height mm | 49.276 |
| Product length in | 2.460 |
| Product length mm | 62.484 |
| Product material | Carbon steel |
| Product width in | 0.550 |
| Product width mm | 13.97 |
| Thread sealant | No |
| Working pressure max BAR | 450 |
| Working pressure max PSI | 6550 |
