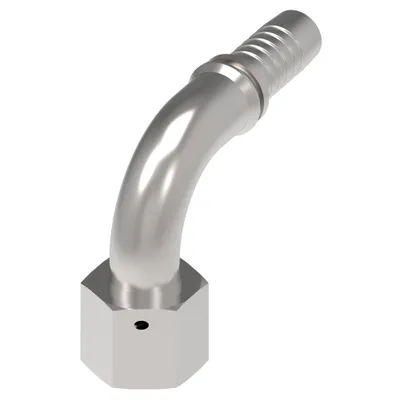

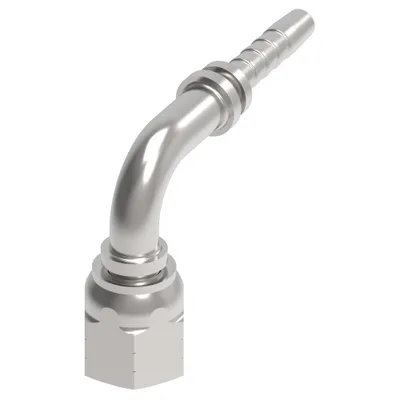

E90 JIC FEMALE

Name: E90 JIC FEMALE
Brand: Danfoss (Drives)
SKU: 26791-06-04H55Z

MPN: 26791-06-04H55Z · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 26791-06-04H55Z be shipped?

26791-06-04H55Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 26791-06-04H55Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 26791-06-04H55Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 26791-06-04H55Z, subject to availability and destination.

Danfoss E90 JIC FEMALE, manufacturer part number 26791-06-04H55Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	90 Degree
Brand	Winner by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
Drop dimension IN	0.910
Drop dimension MM	23.11
End size 1	-6
End Type 1	Female 37 degree swivel
Hex size 1 IN	0.750
Hex size 1 MM	19.050
Hose cut off factor IN	1.070
Hose cut off factor MM	27.178
Hose size	-4
Inside diameter IN	0.150
Inside diameter MM	3.810
Product height in	2.710
Product height mm	68.834
Product length in	2.550
Product length mm	64.770
Product material	Carbon steel
Product width in	0.750
Product width mm	19.05
Thread sealant	No
