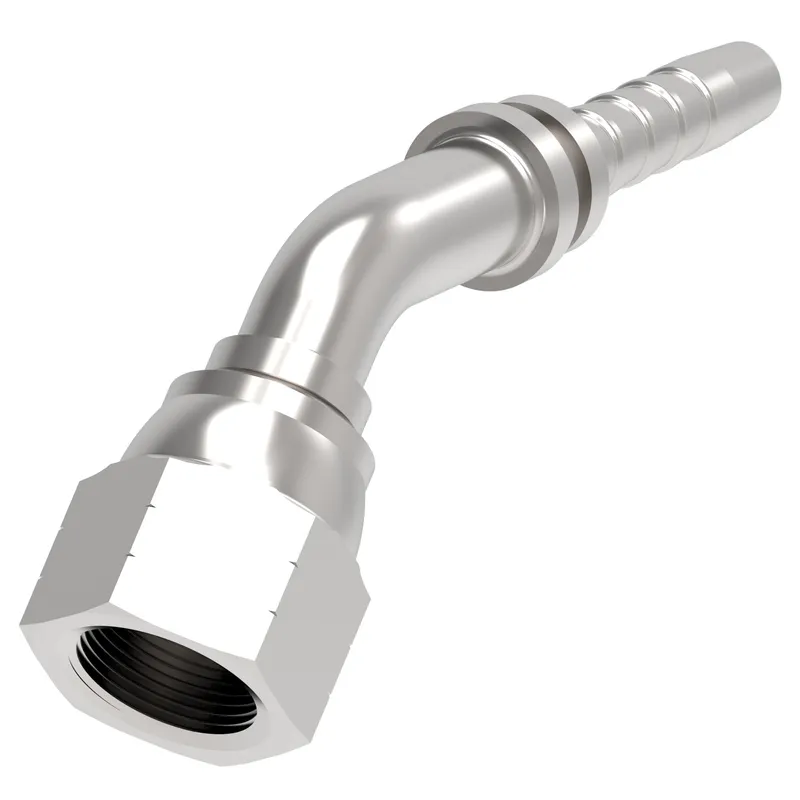

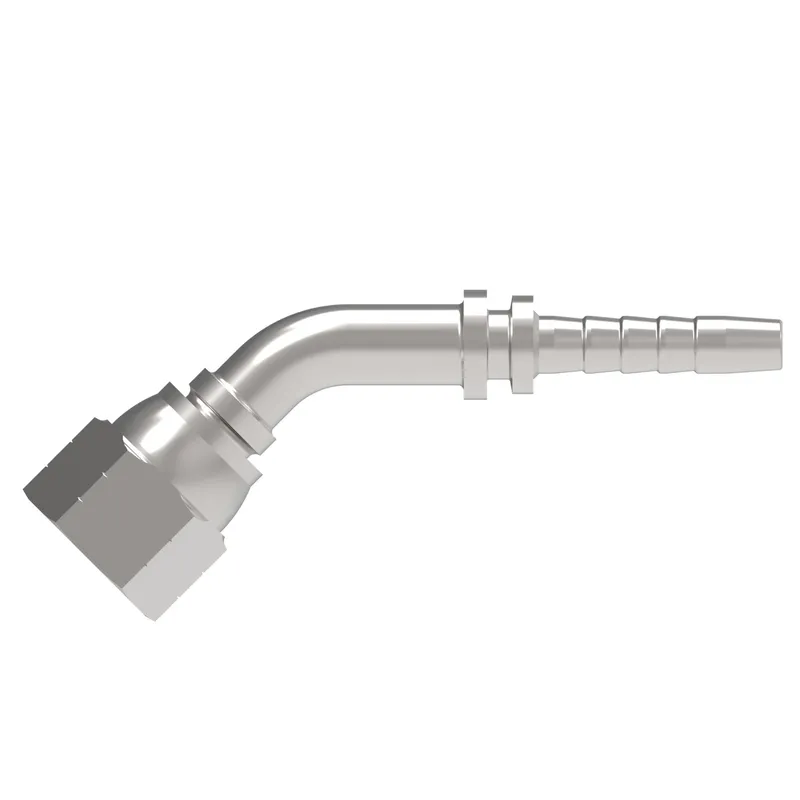

HOSE NIPPLE ASSY,2P/05,JIC-F/06,CS,45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 26741-06-05Z be shipped?
26741-06-05Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 26741-06-05Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 26741-06-05Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 26741-06-05Z, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/05,JIC-F/06,CS,45D, manufacturer part number 26741-06-05Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.580 |
| A dimension MM | 65.700 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.310 |
| Construction Style | Crimp |
| Drop dimension IN | 0.560 |
| Drop dimension MM | 14.40 |
| End size 1 | -6 |
| End Type 1 | Female 37 degree swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.748 |
| Hex size 1 MM | 19.000 |
| Hose cut off factor IN | 1.480 |
| Hose cut off factor MM | 37.700 |
| Inside diameter IN | 0.210 |
| Inside diameter MM | 5.500 |
| Product height in | 1.590 |
| Product height mm | 40.386 |
| Product length in | 3.354 |
| Product length mm | 85.191 |
| Product material | Carbon steel |
| Product width in | 0.750 |
| Product width mm | 19.05 |
| Proposition 65 | Cancer and Reproductive Harm |
| Thread sealant | No |
| Thread size 1 | 9/16-18 UNF |
| Working pressure max BAR | 400 |
| Working pressure max PSI | 5800 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
