HOSE NIPPLE, 2R/08, JIC-F/03, AP, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 259-4103-8-4 be shipped?
259-4103-8-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 259-4103-8-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 259-4103-8-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 259-4103-8-4, subject to availability and destination.

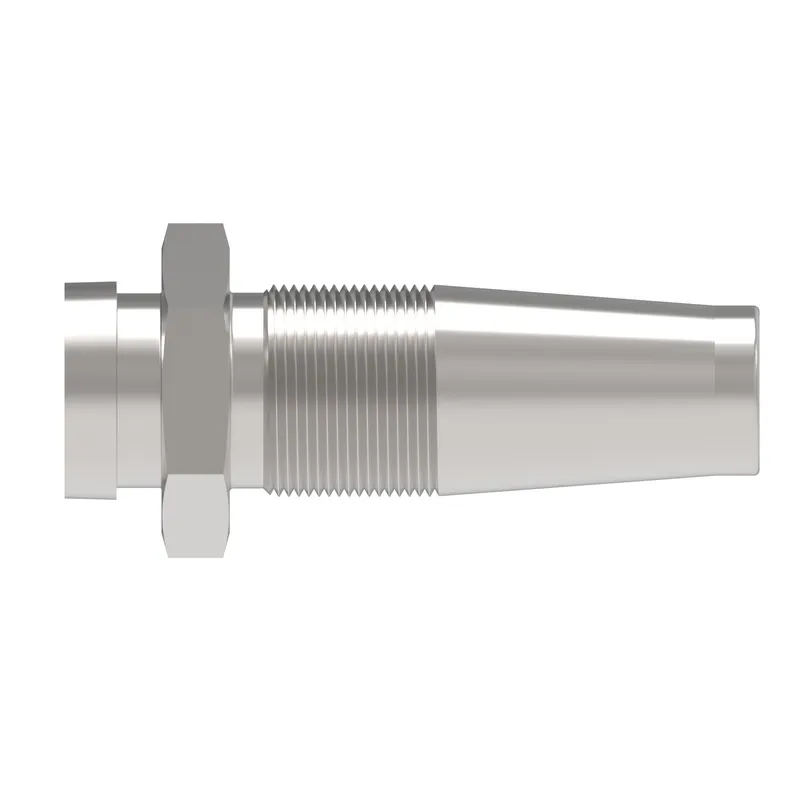

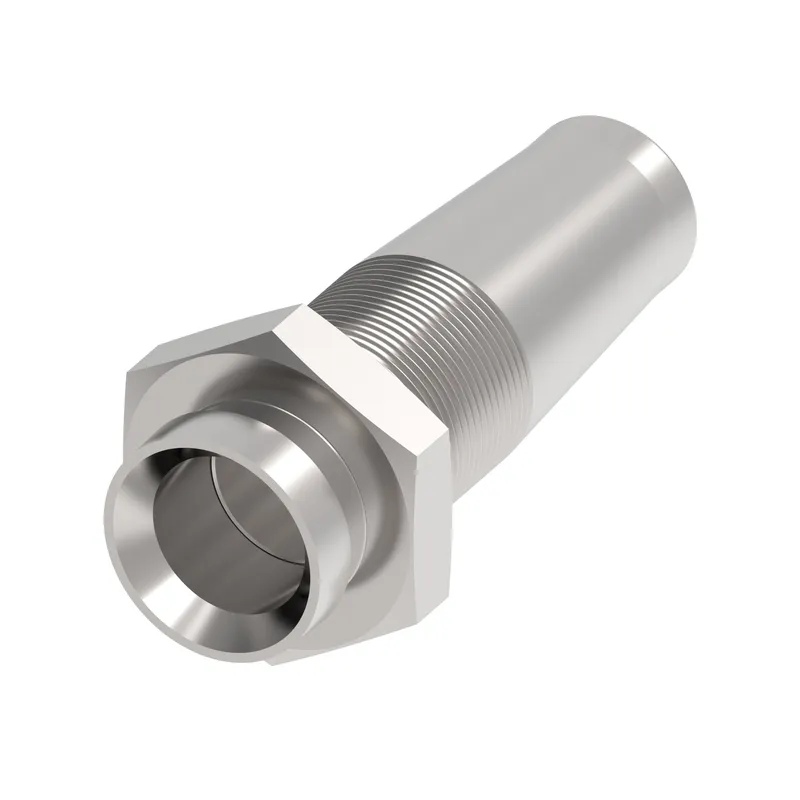

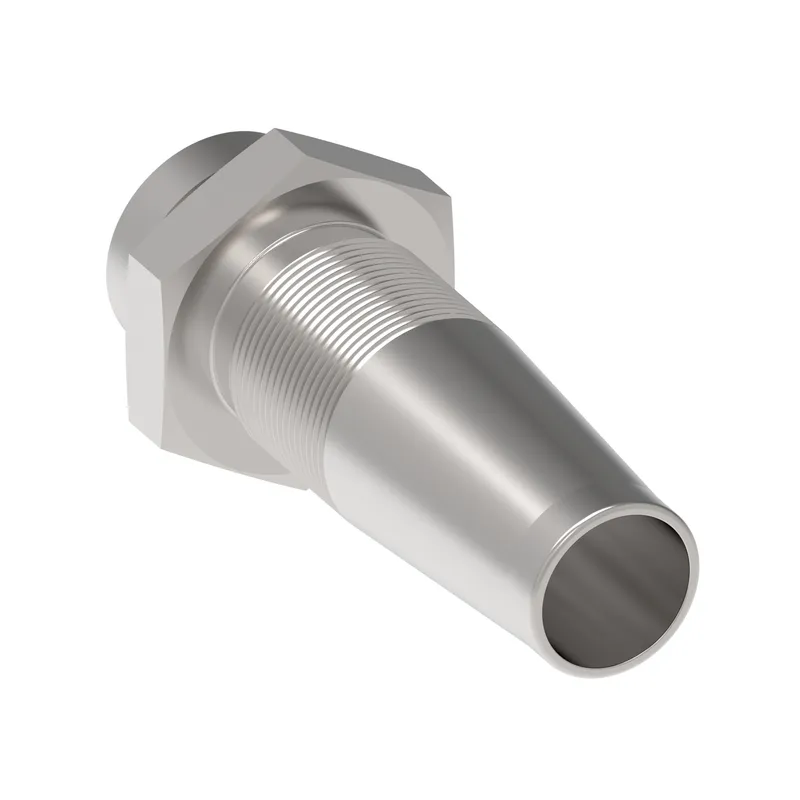

Danfoss HOSE NIPPLE, 2R/08, JIC-F/03, AP, STR, manufacturer part number 259-4103-8-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.420 |
| A dimension MM | 61.400 |
| Angle shape | Straight |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 6.350 |
| Compatible hoses | 1509 |
| Construction Style | Reusable |
| End size 1 | -3 |
| End size 2 | -4 |
| End Type 1 | Female 37 degree swivel |
| Finish plating | Passivate |
| Hex size 1 IN | 0.866 |
| Hex size 1 MM | 22.000 |
| Hose cut off factor IN | 0.730 |
| Hose cut off factor MM | 18.470 |
| Hose size | -4 |
| Inside diameter IN | 0.170 |
| Inside diameter MM | 4.300 |
| Product height in | 1.010 |
| Product height mm | 25.654 |
| Product length in | 2.420 |
| Product length mm | 61.468 |
| Product material | 316 Stainless steel |
| Product width in | 0.880 |
| Product width mm | 22.352 |
| Thread sealant | No |
