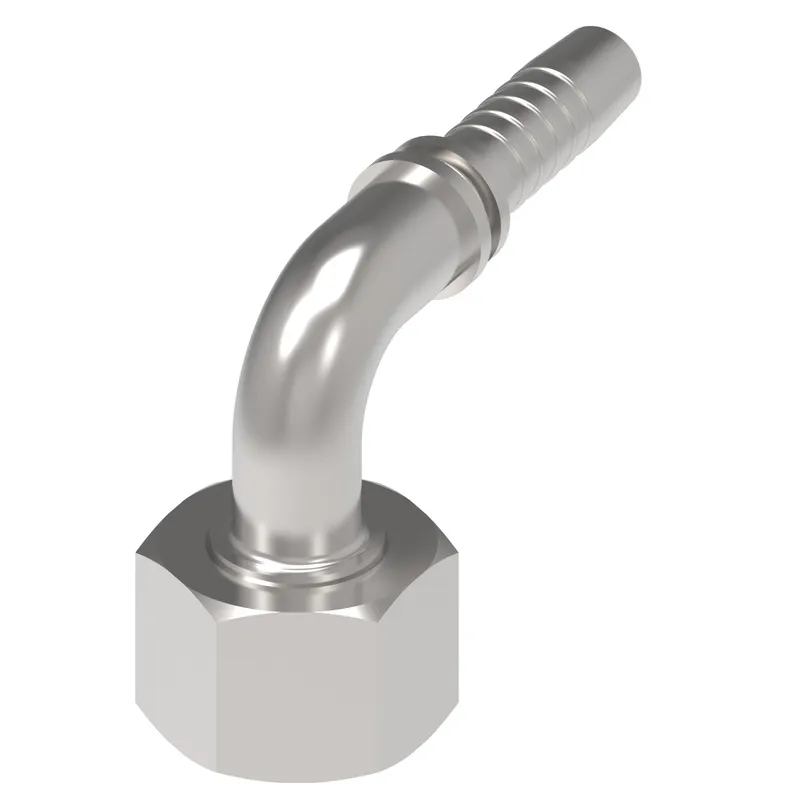

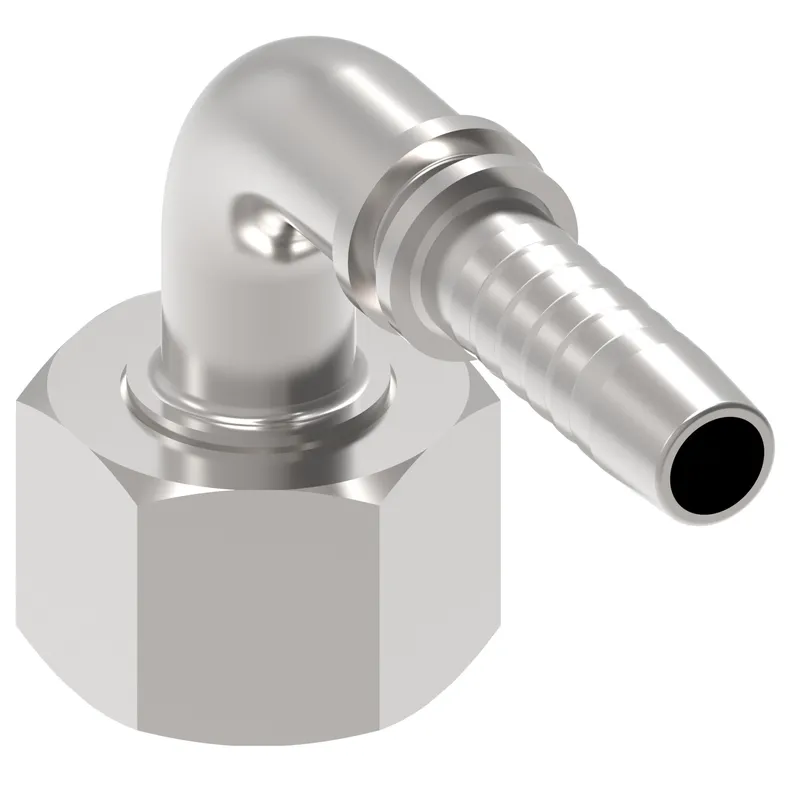

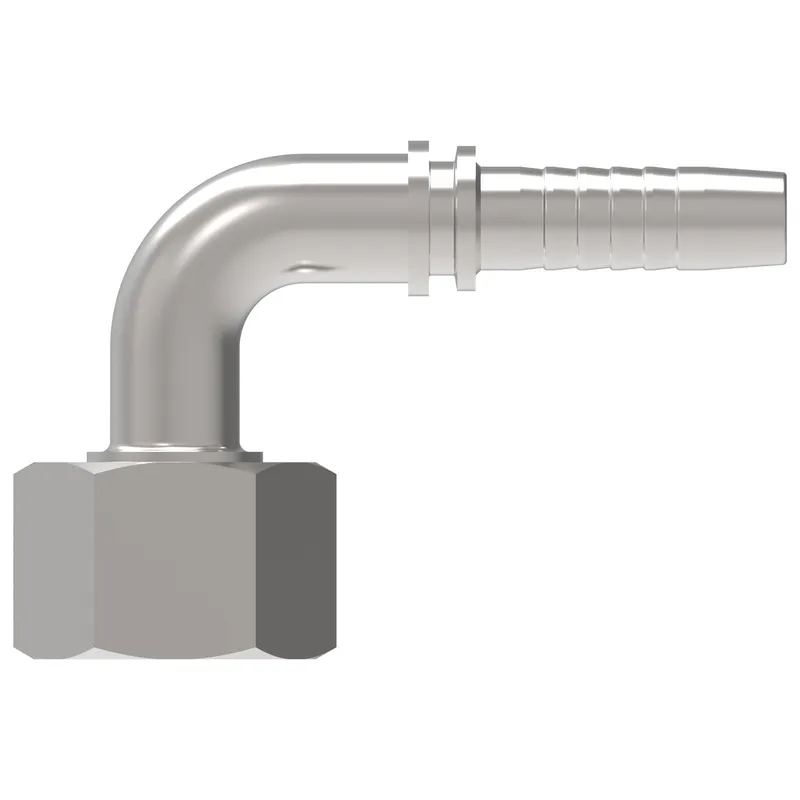

HOSE NIPPLE, 2P/14, ORS-F/16, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 24291-16-14TZ be shipped?
24291-16-14TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 24291-16-14TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 24291-16-14TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24291-16-14TZ, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/14, ORS-F/16, CS, 90D, manufacturer part number 24291-16-14TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.200 |
| A dimension MM | 106.900 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.880 |
| Compatible hose ID MM | 22.225 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| Drop dimension IN | 2.650 |
| Drop dimension MM | 67.50 |
| End size 1 | -16 |
| End Type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 2 IN | 1.610 |
| Hex size 2 MM | 40.894 |
| Hose cut off factor IN | 2.633 |
| Hose cut off factor MM | 66.900 |
| Hose size | -14 |
| Inside diameter IN | 0.700 |
| Inside diameter MM | 18.000 |
| Product height in | 3.830 |
| Product height mm | 97.282 |
| Product length in | 5.015 |
| Product length mm | 127.381 |
| Product material | Carbon steel |
| Product width in | 1.614 |
| Product width mm | 40.996 |
| Thread sealant | No |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
