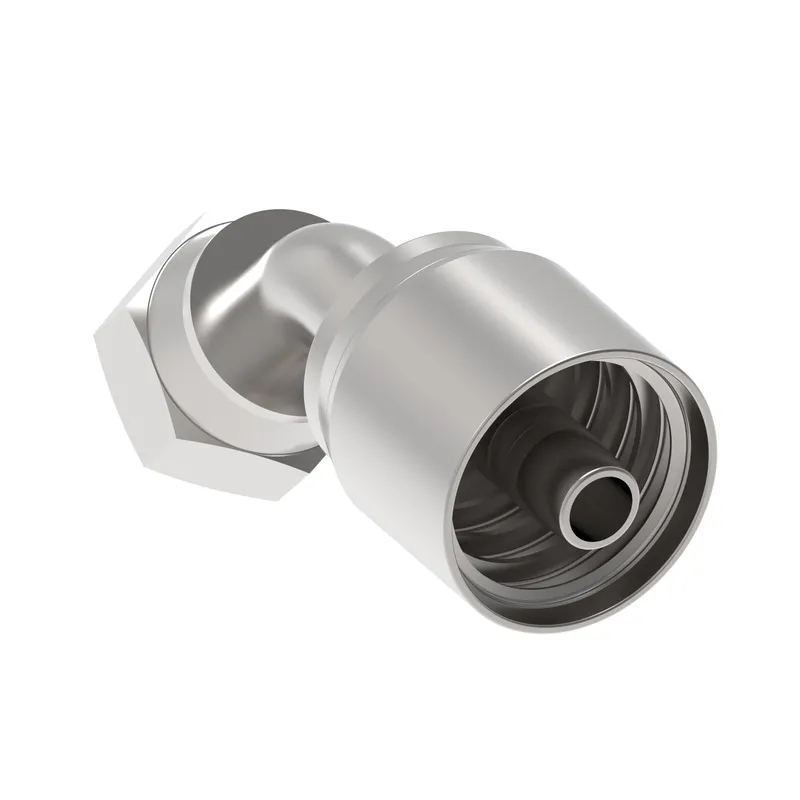

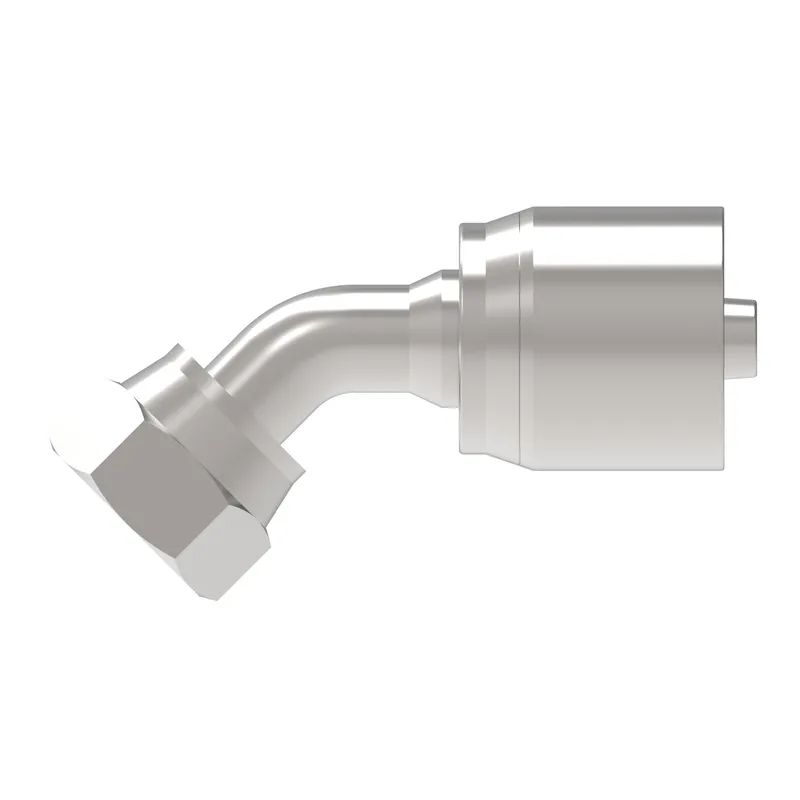

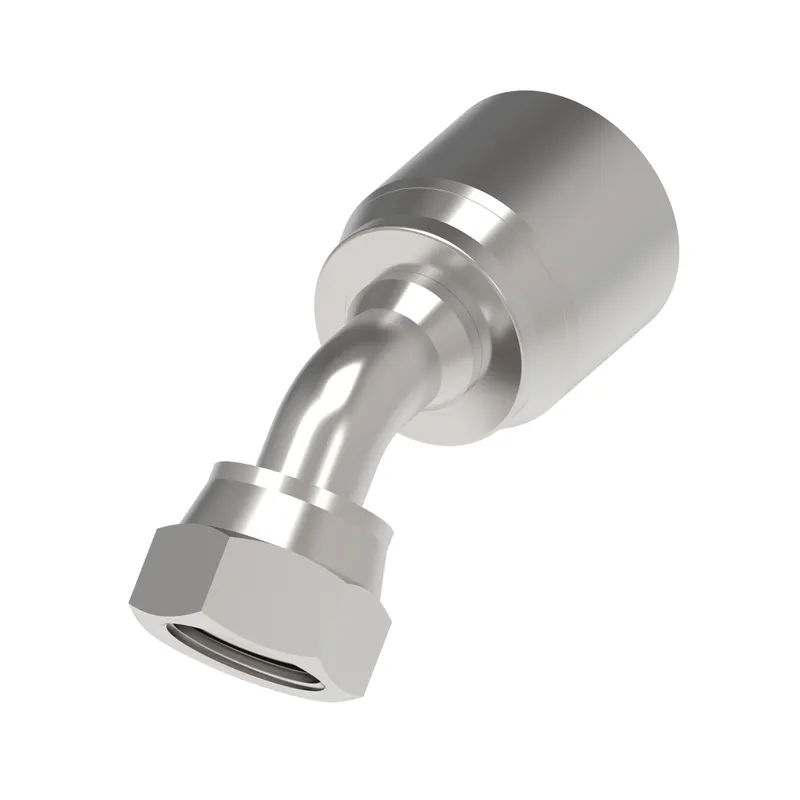

HOSE NIPPLE, 2P/12, ORS-F/12, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 24241Y-12-12Z be shipped?
24241Y-12-12Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 24241Y-12-12Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 24241Y-12-12Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24241Y-12-12Z, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/12, ORS-F/12, CS, 45D, manufacturer part number 24241Y-12-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.930 |
| A dimension MM | 125.400 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.050 |
| Compatible hoses | EC110, EC115, EC210, EC215 |
| Construction Style | Crimp |
| Drop dimension IN | 1.550 |
| Drop dimension MM | 39.50 |
| End size 1 | -12 |
| End Type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.417 |
| Hex size 1 MM | 36.000 |
| Hex size 2 IN | 1.420 |
| Hex size 2 MM | 36.068 |
| Hose cut off factor IN | 3.420 |
| Hose cut off factor MM | 86.900 |
| Hose size | -12 |
| Inside diameter IN | 0.600 |
| Inside diameter MM | 15.000 |
| Product height in | 2.062 |
| Product height mm | 52.375 |
| Product length in | 5.649 |
| Product length mm | 143.485 |
| Product material | Carbon steel |
| Product width in | 1.417 |
| Product width mm | 35.992 |
| Thread sealant | No |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
