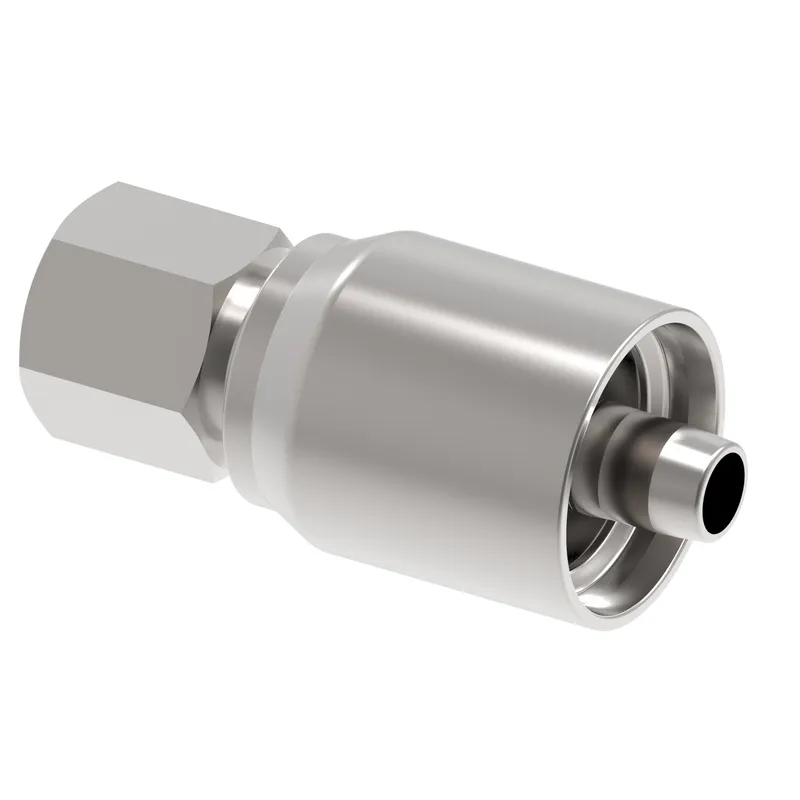

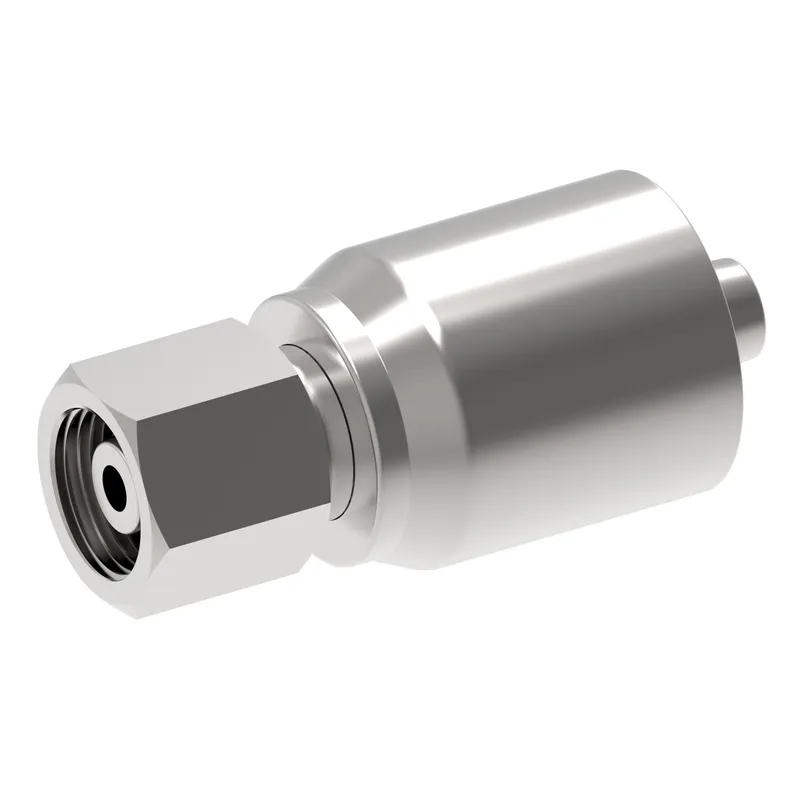

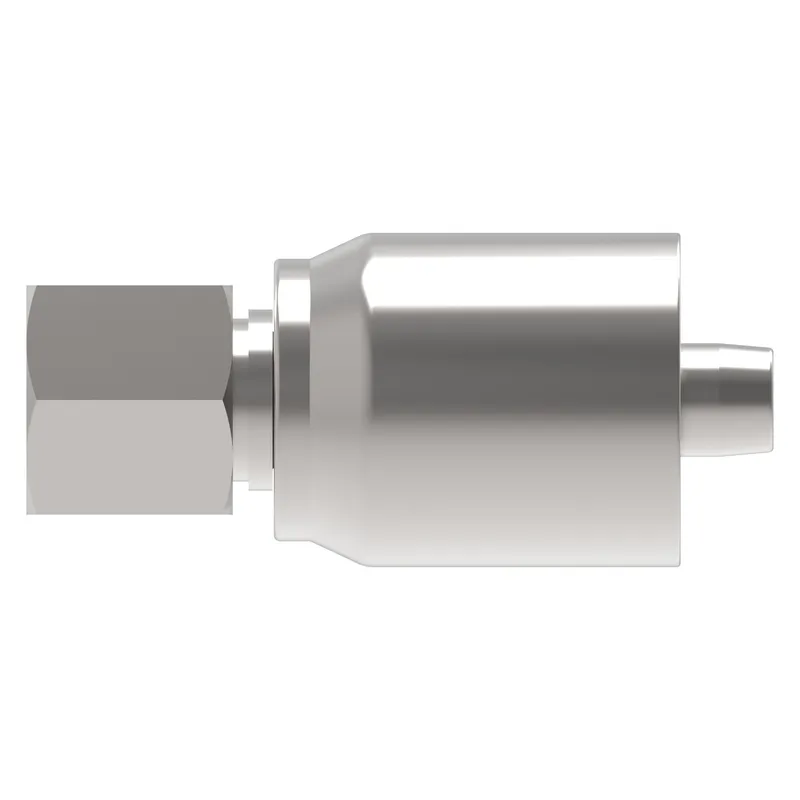

HOSE NIPPLE ASSY,1P/20,ORS-F/20,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 24211Y-20-20WZ be shipped?
24211Y-20-20WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 24211Y-20-20WZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 24211Y-20-20WZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 24211Y-20-20WZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/20,ORS-F/20,CS,STR, manufacturer part number 24211Y-20-20WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.800 |
| A dimension MM | 96.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.750 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| End size 1 | -20 |
| End Type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.938 |
| Hex size 1 MM | 50.000 |
| Hex size 2 IN | 1.960 |
| Hex size 2 MM | 49.784 |
| Hose cut off factor IN | 1.670 |
| Hose cut off factor MM | 42.500 |
| Hose size | -20 |
| Inside diameter IN | 1.060 |
| Inside diameter MM | 27.000 |
| Product height in | 2.413 |
| Product height mm | 61.290 |
| Product length in | 4.389 |
| Product length mm | 111.481 |
| Product material | Carbon steel |
| Product width in | 2.413 |
| Product width mm | 61.29 |
| Thread sealant | No |
| Thread size 1 | 1 11/16-12 UN |
| Working pressure max BAR | 310 |
| Working pressure max PSI | 4500 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
