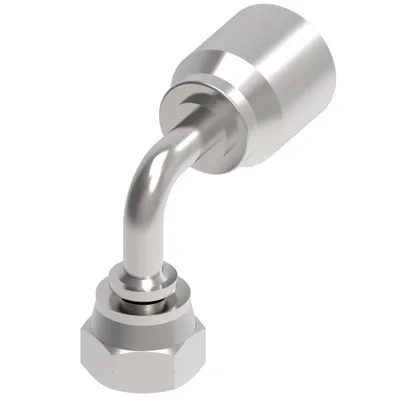

HOSE NIPPLE, 2P/06, ORS-F/06, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Railway hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2269TC-06-06ORNZ be shipped?
2269TC-06-06ORNZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2269TC-06-06ORNZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2269TC-06-06ORNZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2269TC-06-06ORNZ, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/06, ORS-F/06, CS, 90D, manufacturer part number 2269TC-06-06ORNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.448 |
| A dimension MM | 62.200 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.380 |
| Compatible hose ID MM | 9.398 |
| Construction Style | Crimp |
| Drop dimension IN | 1.338 |
| Drop dimension MM | 34.00 |
| End size 1 | -6 |
| End type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 0.866 |
| Hex size 1 MM | 22.000 |
| Hose cut off factor IN | 1.452 |
| Hose cut off factor MM | 36.900 |
| Hose size | -6 |
| Inside diameter IN | 0.2630 |
| Inside diameter MM | 6.7000 |
| Product height in | 1.630 |
| Product height mm | 41.402 |
| Product length in | 2.880 |
| Product length mm | 73.152 |
| Product material | Carbon steel |
| Product width in | 0.870 |
| Product width mm | 22.098 mm |
| Thread sealant | No |
| Thread size 1 | 11/16-16 UN |
| Working pressure max BAR | 621 |
| Working pressure max PSI | 9100 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
