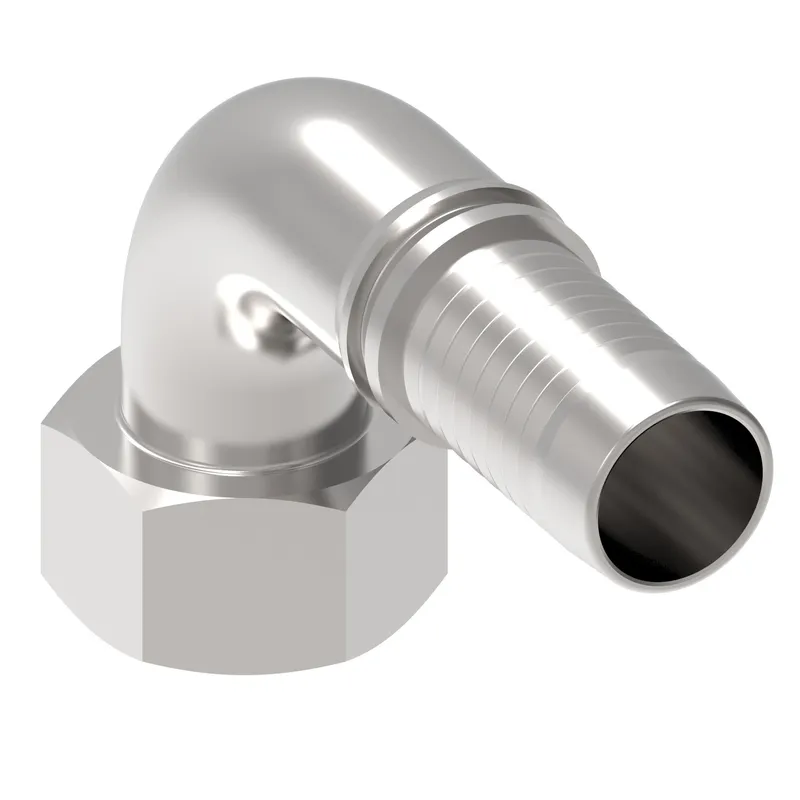

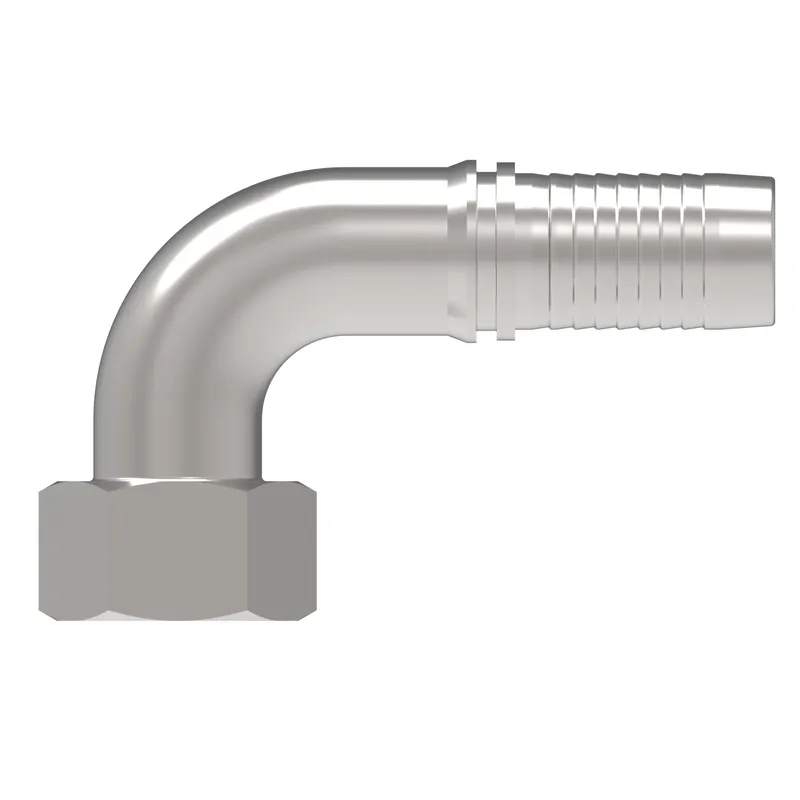

HOSE NIPPLE, 2P/32, BF/32, AP, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 22691-32-32SUW be shipped?
22691-32-32SUW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 22691-32-32SUW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 22691-32-32SUW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22691-32-32SUW, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/32, BF/32, AP, 90D, manufacturer part number 22691-32-32SUW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 8.023 |
| A dimension MM | 203.800 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| Drop dimension IN | 4.854 |
| Drop dimension MM | 123.30 |
| End size 1 | -32 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 2.755 |
| Hex size 1 MM | 70.000 |
| Hex size 2 IN | 2.750 |
| Hex size 2 MM | 69.850 |
| Hose cut off factor IN | 5.188 |
| Hose cut off factor MM | 131.800 |
| Hose size | -32 |
| Inside diameter IN | 1.692 |
| Inside diameter MM | 43.000 |
| Product height in | 6.630 |
| Product height mm | 168.402 |
| Product length in | 9.400 |
| Product length mm | 238.760 |
| Product material | 316 Stainless steel |
| Product width in | 2.760 |
| Product width mm | 70.104 |
| Thread sealant | No |
| Thread size 1 | G 2 |
| Working pressure max BAR | 110 |
| Working pressure max PSI | 1600 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
