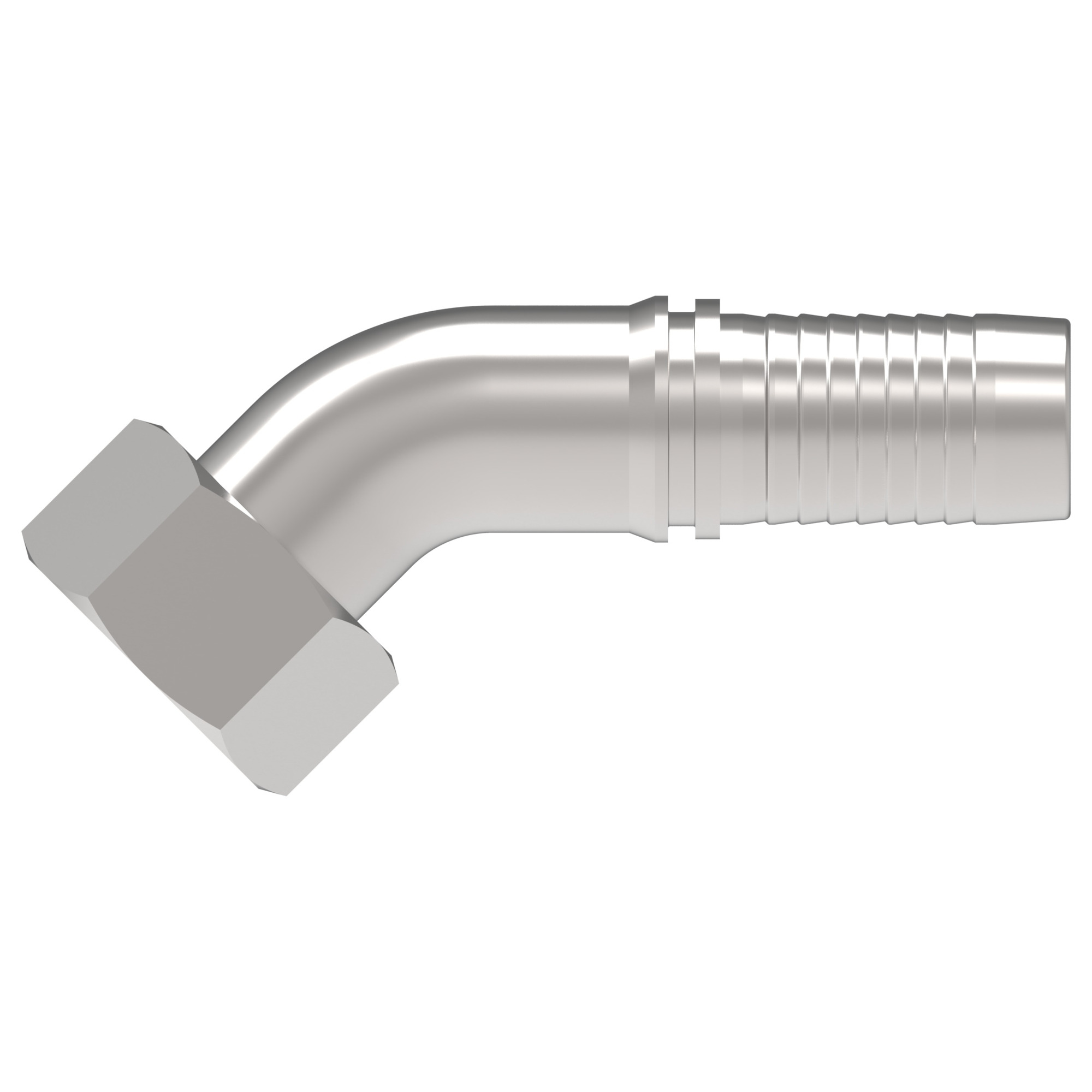

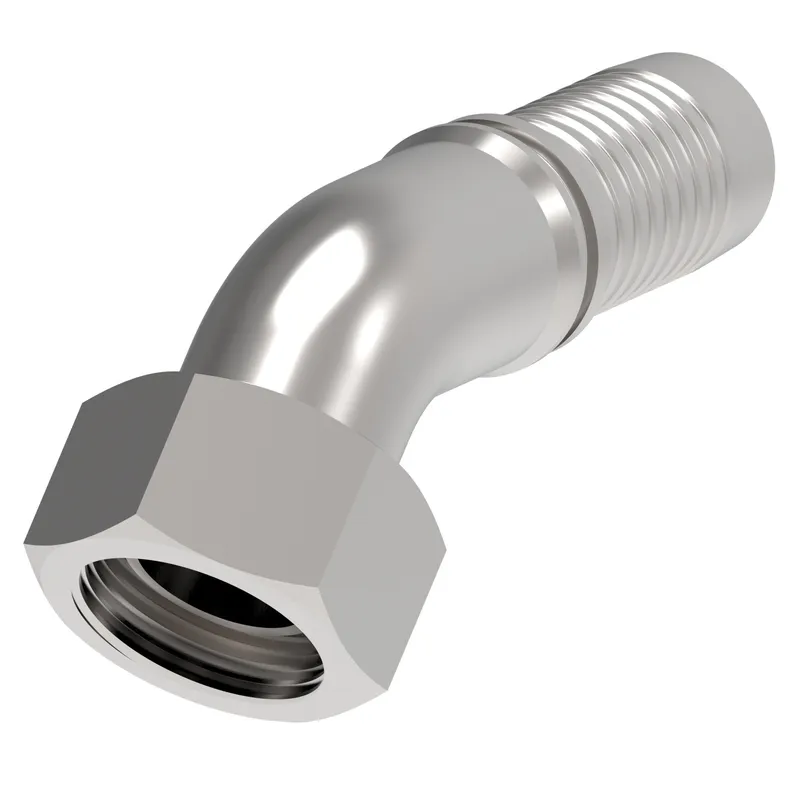

HOSE NIPPLE ASSY,2P/32,JIS-F/32,CS,45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 22641-32-32WZ be shipped?
22641-32-32WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 22641-32-32WZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 22641-32-32WZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22641-32-32WZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/32,JIS-F/32,CS,45D, manufacturer part number 22641-32-32WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 8.180 |
| A dimension MM | 207.700 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 2.000 |
| Compatible hose ID MM | 50.800 |
| Compatible hoses | EC110, EC210, FC686, FC687, GH663, GH781, GH793 |
| Construction Style | Crimp |
| Drop dimension IN | 2.070 |
| Drop dimension MM | 52.70 |
| End size 1 | -32 |
| End Type 1 | Female BSPP DKO swivel 60 deg. |
| Finish plating | Zinc plating |
| Hex size 1 MM | 70.000 |
| Hex size 2 IN | 2.750 |
| Hex size 2 MM | 69.850 |
| Hose cut off factor IN | 5.340 |
| Hose cut off factor MM | 135.700 |
| Hose size | -32 |
| Inside diameter IN | 1.690 |
| Inside diameter MM | 43.000 |
| Product height in | 5.230 |
| Product height mm | 132.842 |
| Product length in | 10.180 |
| Product length mm | 258.572 |
| Product material | Carbon steel |
| Product width in | 2.760 |
| Product width mm | 70.104 |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | G 2 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
