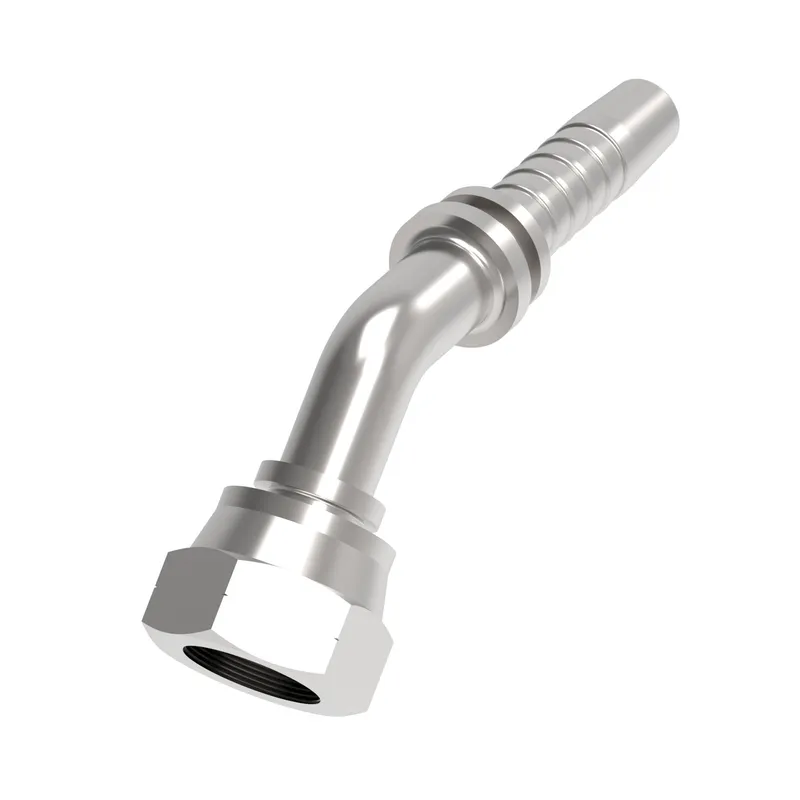

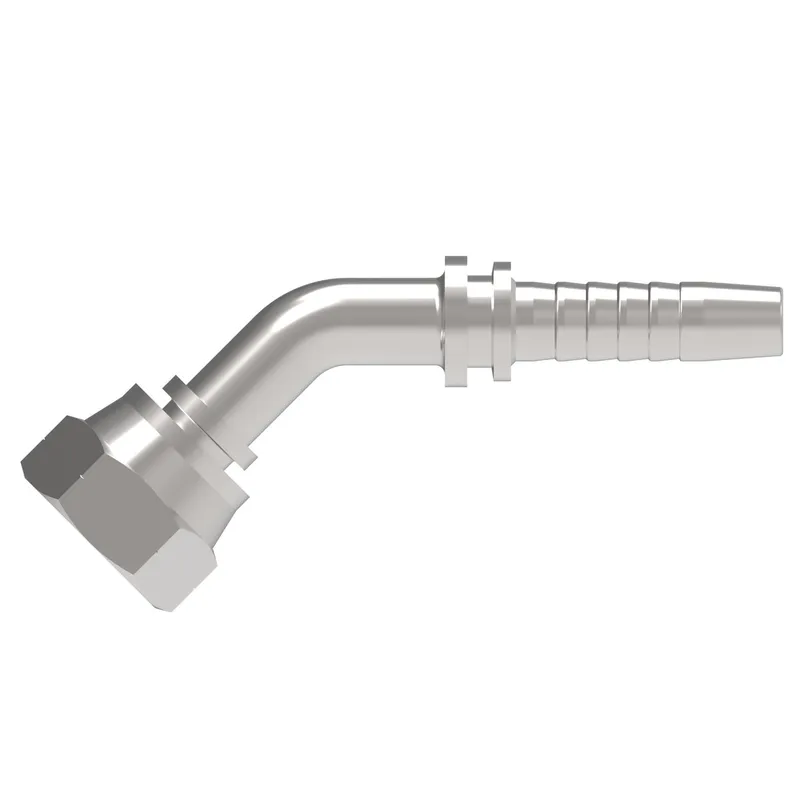

HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 22641-10-10Z be shipped?
22641-10-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 22641-10-10Z in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 22641-10-10Z and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 22641-10-10Z, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY, 1P/10, BF/10, CS, 45D, manufacturer part number 22641-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.180 |
| A dimension MM | 106.100 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Construction Style | Crimp |
| Drop dimension IN | 1.090 |
| Drop dimension MM | 27.80 |
| End size 1 | -10 |
| End Type 1 | Female BSPP swivel |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 2.840 |
| Hose cut off factor MM | 72.100 |
| Hose size | -10 |
| Inside diameter IN | 0.470 |
| Inside diameter MM | 12.000 |
| Product height in | 2.200 |
| Product height mm | 55.880 |
| Product length in | 4.770 |
| Product length mm | 121.158 |
| Product material | Carbon steel |
| Product width in | 1.180 |
| Product width mm | 29.972 |
| Proposition 65 | Cancer and Reproductive Harm |
| Thread size 1 | G 5/8 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
