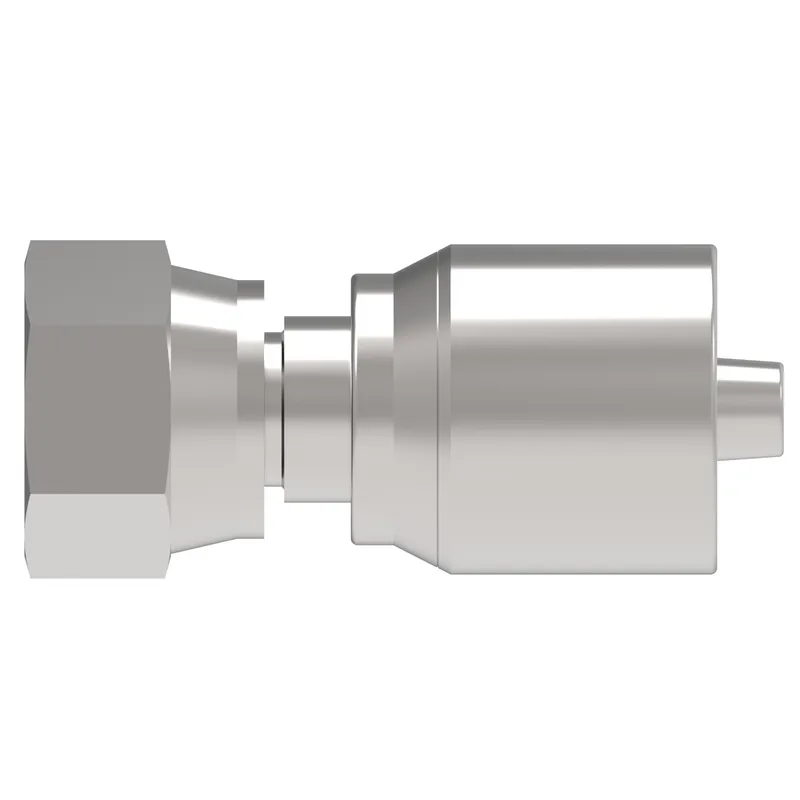

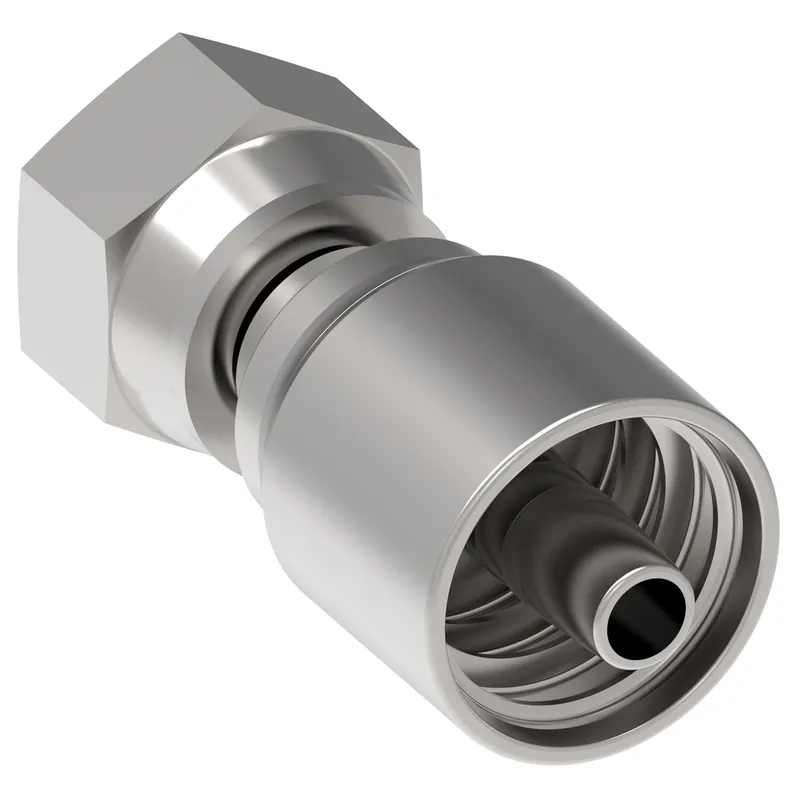

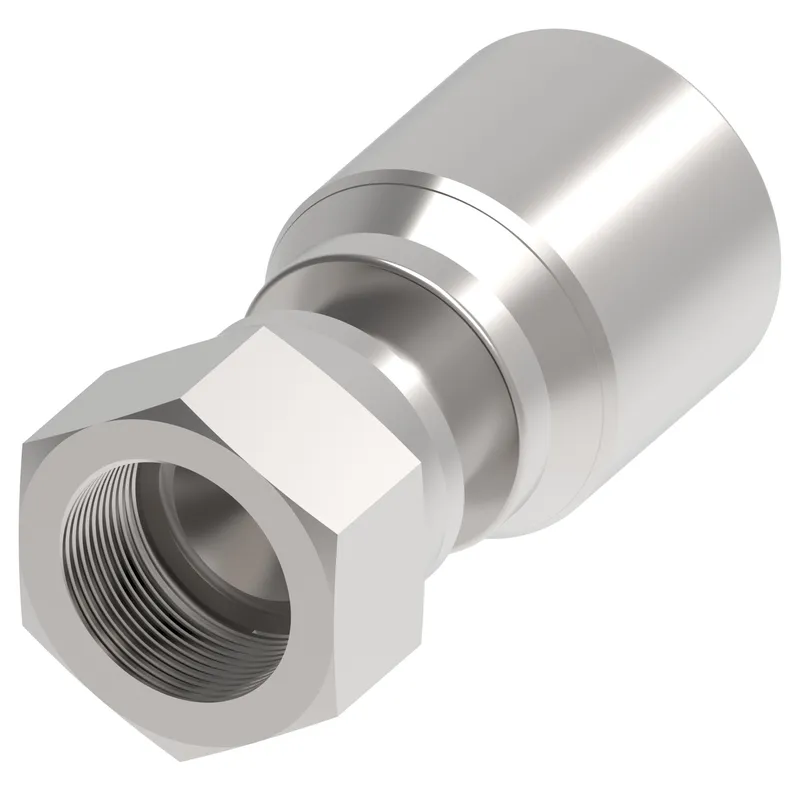

HOSE NIPPLE ASSY,1P/16,MJIC-F/39,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20711Y-39-16TZ be shipped?
20711Y-39-16TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20711Y-39-16TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20711Y-39-16TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20711Y-39-16TZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/16,MJIC-F/39,CS,STR, manufacturer part number 20711Y-39-16TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.770 |
| A dimension MM | 70.500 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.800 |
| Hex size 1 MM | 45.720 |
| Hose cut off factor IN | 0.920 |
| Hose cut off factor MM | 23.500 |
| Hose size | -16 |
| Inside diameter IN | 0.826 |
| Inside diameter MM | 21.000 |
| Product height in | 2.070 |
| Product height mm | 52.578 |
| Product length in | 2.776 |
| Product length mm | 70.510 |
| Product material | Carbon steel |
| Product width in | 1.800 |
| Product width mm | 45.72 |
| Thread sealant | No |
| Thread size 1 | M39x2 |
