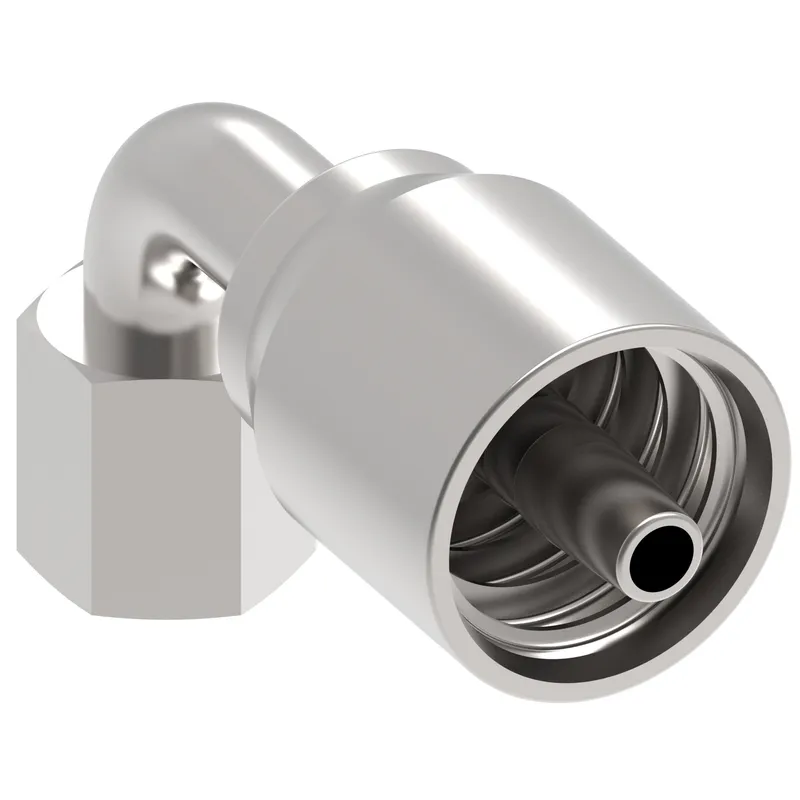

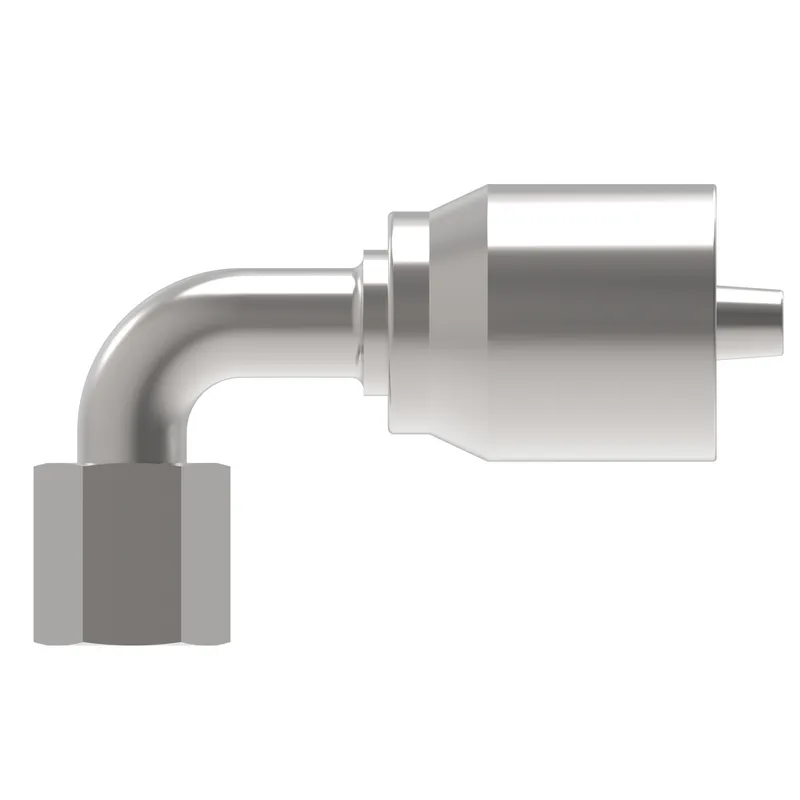

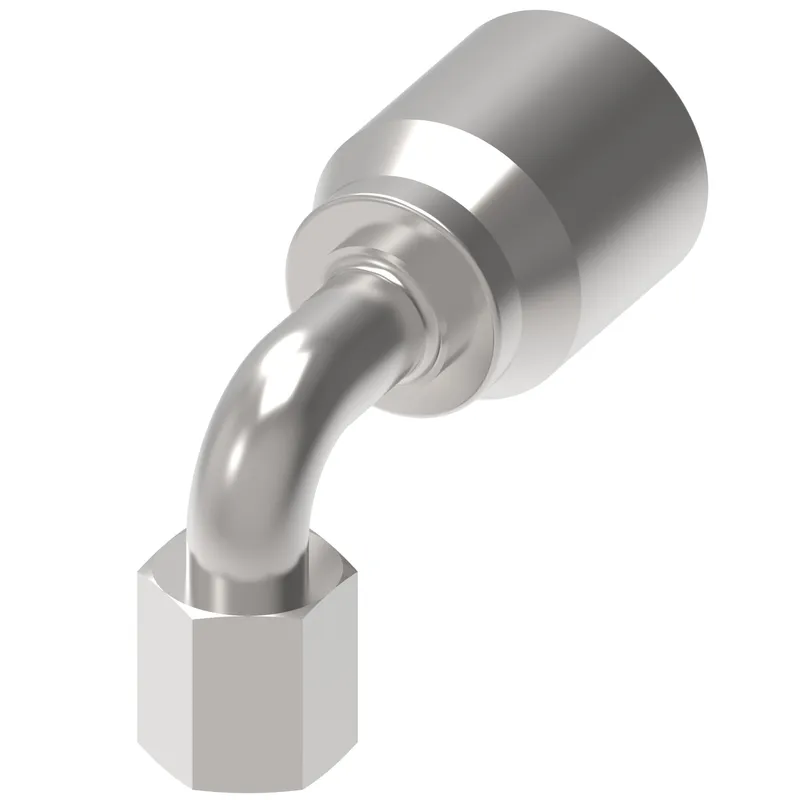

HOSE NIPPLE ASSY,1P/20,DKOH-B/52,AP,90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20591Y1-52-20EQSVT be shipped?
20591Y1-52-20EQSVT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20591Y1-52-20EQSVT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20591Y1-52-20EQSVT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591Y1-52-20EQSVT, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/20,DKOH-B/52,AP,90D, manufacturer part number 20591Y1-52-20EQSVT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 5.787 |
| A dimension MM | 147.000 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.250 |
| Compatible hose ID MM | 31.800 |
| Construction Style | Crimp |
| Drop dimension IN | 3.405 |
| Drop dimension MM | 86.50 |
| End connection torque | 210-280 lb-ft(285-380 Nm) |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Hex size 1 IN | 2.362 |
| Hex size 1 MM | 60.000 |
| Hex size 2 IN | 1.960 |
| Hex size 2 MM | 49.784 |
| Hose cut off factor IN | 3.661 |
| Hose cut off factor MM | 93.000 |
| Hose size | -20 |
| Inside diameter IN | 1.062 |
| Inside diameter MM | 27.000 |
| Product height in | 4.789 |
| Product height mm | 121.641 |
| Product length in | 6.948 |
| Product length mm | 176.479 |
| Product material | 316L Stainless steel |
| Product width in | 2.413 |
| Product width mm | 61.29 |
| Thread sealant | No |
| Thread size 1 | M52x2 |
| Tube OD 1 IN | 1.496 |
| Tube OD 1 MM | 38.000 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
