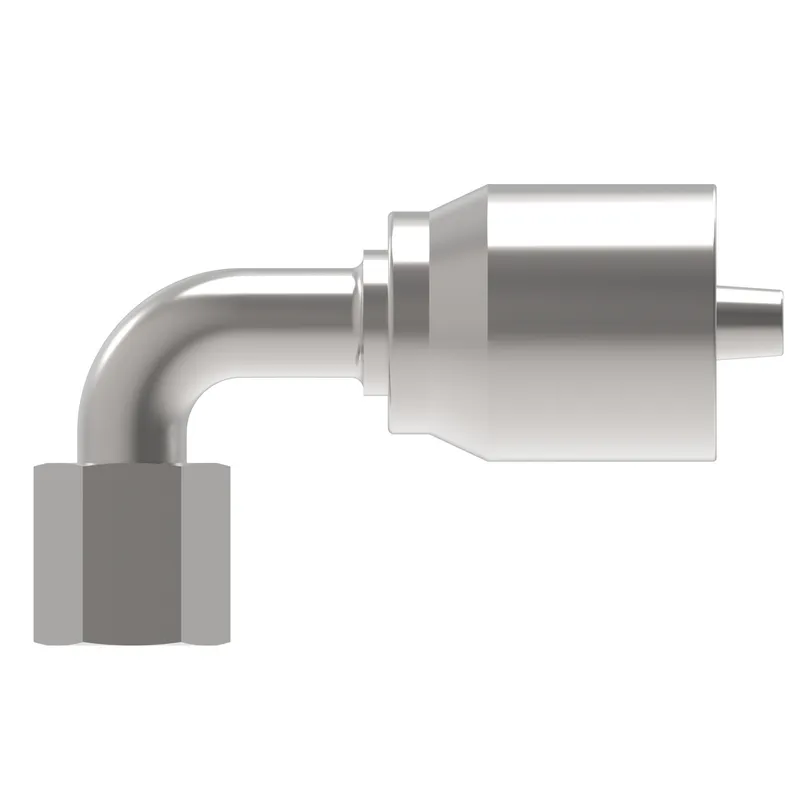

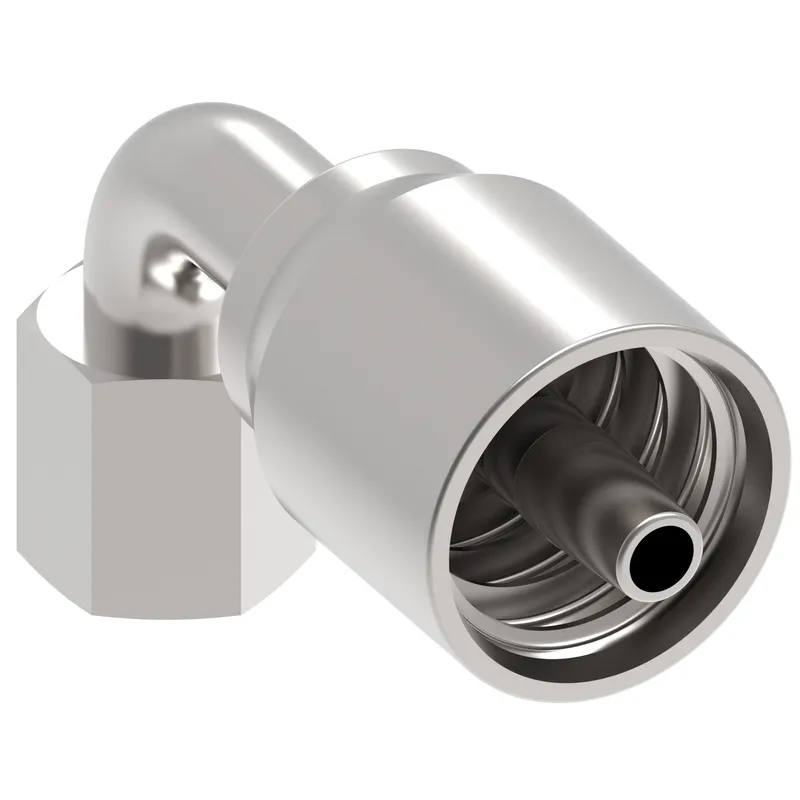

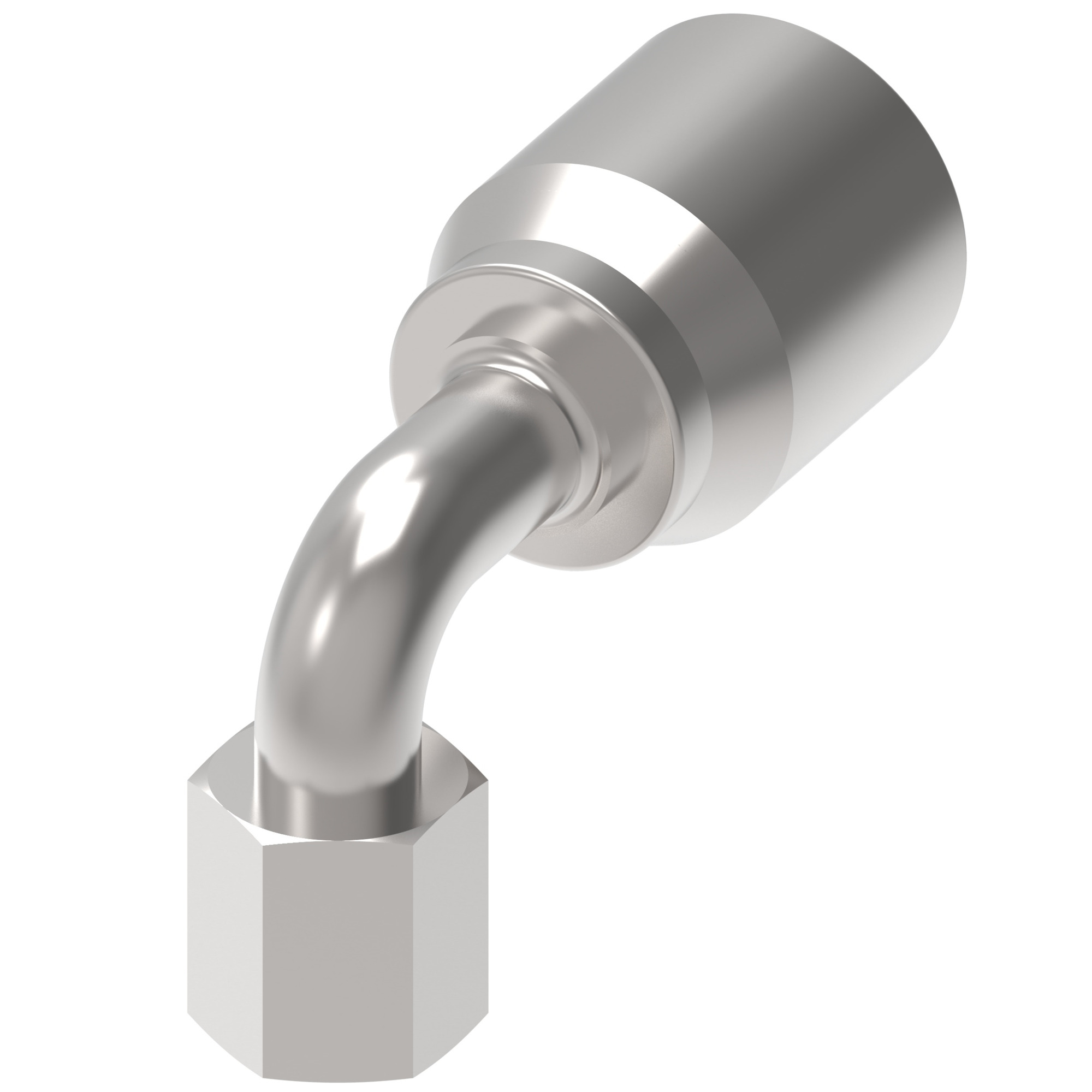

HOSE NIPPLE ASSY,1P/12,DKOH-B/36,CS,90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20591Y-36-12TZ be shipped?
20591Y-36-12TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20591Y-36-12TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20591Y-36-12TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20591Y-36-12TZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,1P/12,DKOH-B/36,CS,90D, manufacturer part number 20591Y-36-12TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.720 |
| A dimension MM | 94.500 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.750 |
| Compatible hose ID MM | 19.000 |
| Construction Style | Crimp |
| Drop dimension IN | 2.322 |
| Drop dimension MM | 59.00 |
| End connection torque | 125-140 lb-ft(170-190 Nm) |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 2.204 |
| Hose cut off factor MM | 56.000 |
| Hose size | -12 |
| Inside diameter IN | 0.590 |
| Inside diameter MM | 15.000 |
| Product height in | 2.449 |
| Product height mm | 62.200 |
| Product length in | 3.720 |
| Product length mm | 94.500 |
| Product material | Carbon steel |
| Product width in | 1.811 |
| Product width mm | 46 |
| Thread sealant | No |
| Thread size 1 | M36x2 |
| Tube OD 1 IN | 0.984 |
| Tube OD 1 MM | 25.000 |
| Working temperature max C | 100 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
