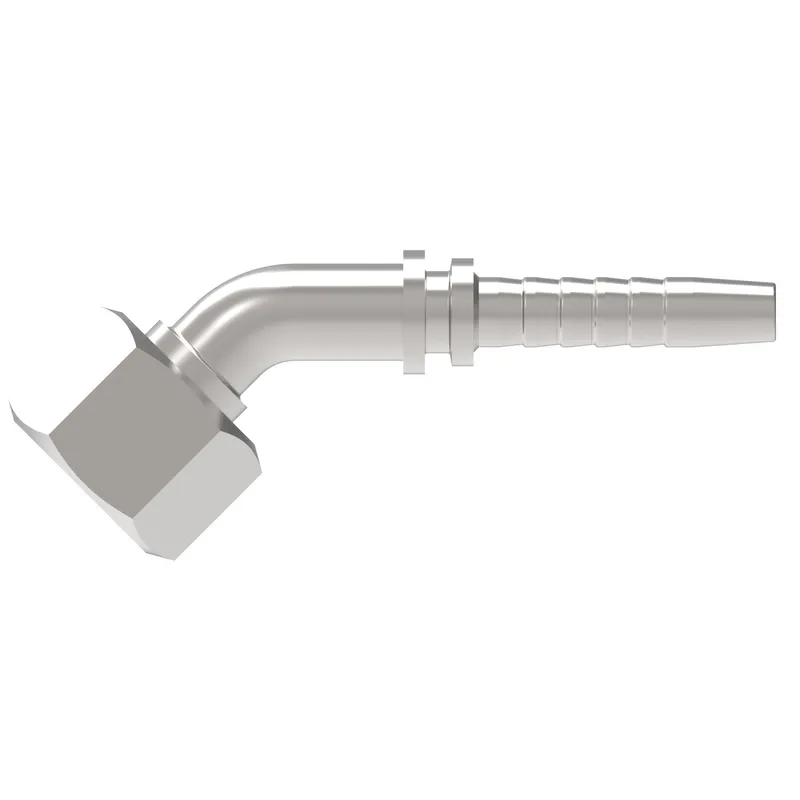

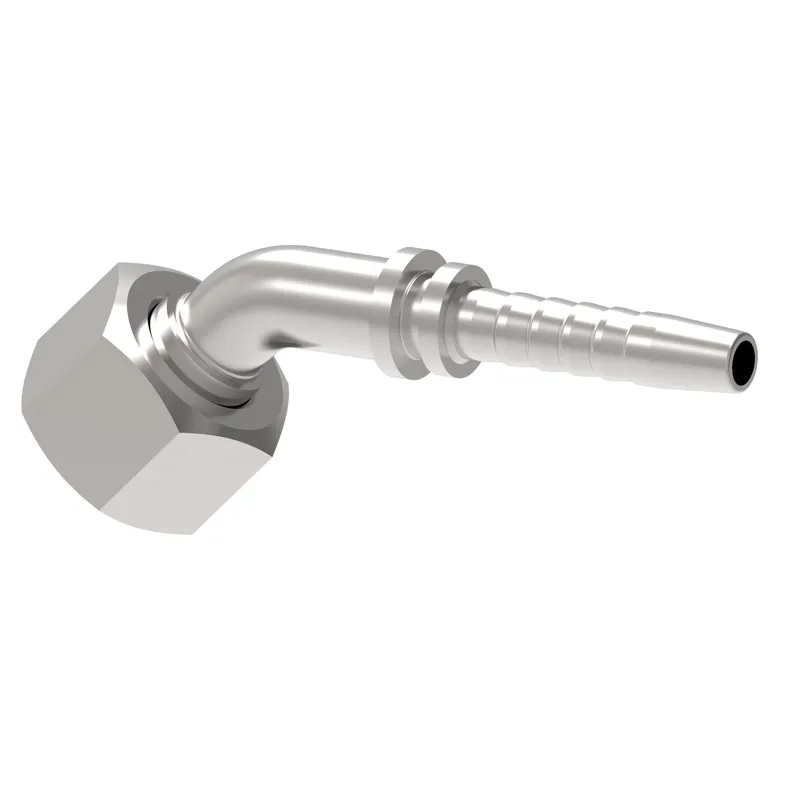

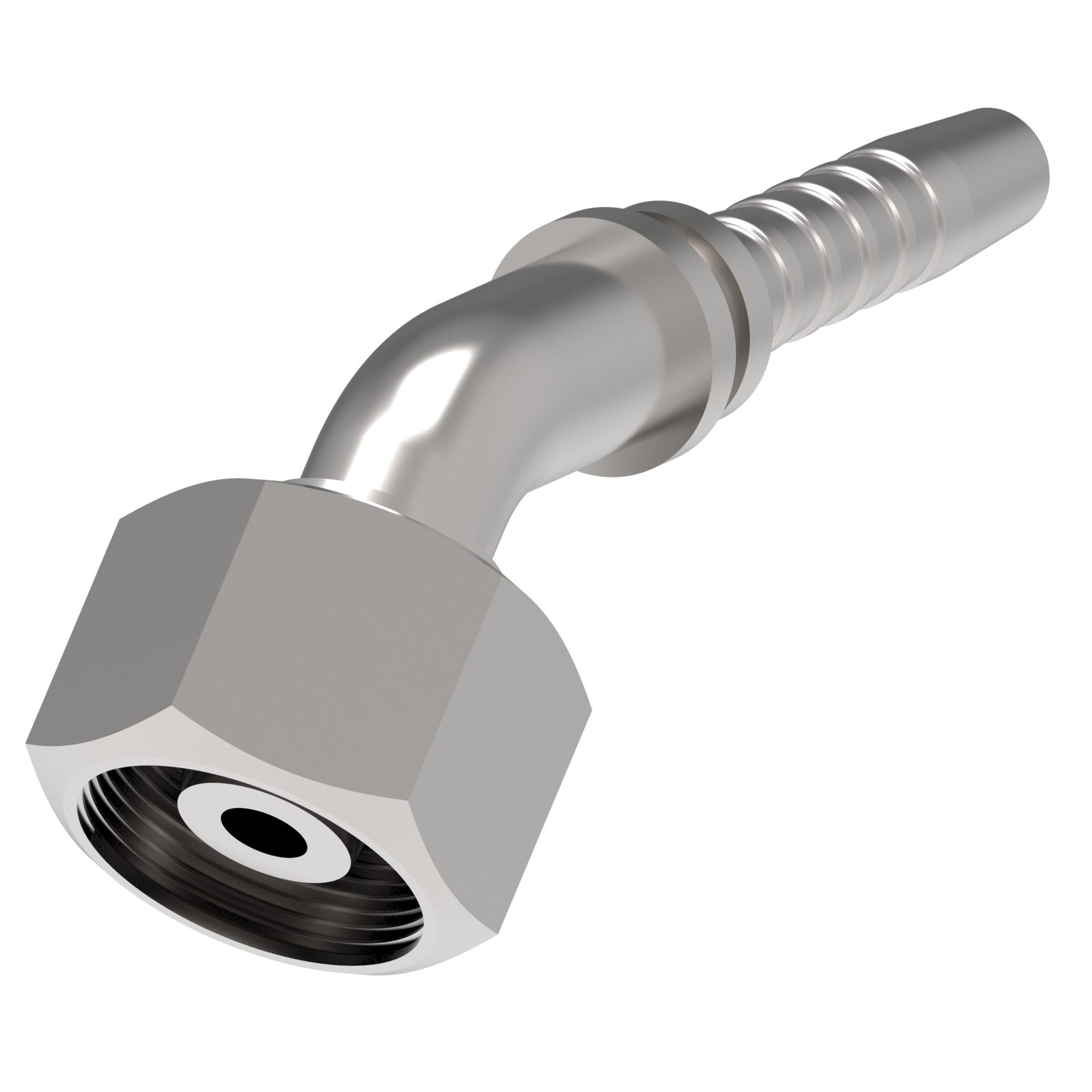

HOSE NIPPLE ASSY,2P/08,DKOH-B/22,CS,45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20541-22-08TZ be shipped?
20541-22-08TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20541-22-08TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20541-22-08TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20541-22-08TZ, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/08,DKOH-B/22,CS,45D, manufacturer part number 20541-22-08TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.192 |
| A dimension MM | 81.100 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.500 |
| Compatible hose ID MM | 12.700 |
| Construction Style | Crimp |
| Drop dimension IN | 0.814 |
| Drop dimension MM | 20.70 |
| End Type 1 | 24 deg. DKO swivel heavy duty |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.063 |
| Hose cut off factor IN | 1.952 |
| Hose cut off factor MM | 49.600 |
| Hose size | -8 |
| Inside diameter IN | 0.393 |
| Inside diameter MM | 10.000 |
| Product height in | 1.789 |
| Product height mm | 45.440 |
| Product length in | 3.744 |
| Product length mm | 95.097 |
| Product material | Carbon steel |
| Product width in | 1.063 |
| Product width mm | 27 |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | Winner 2-Piece |
| Thread size 1 | M22x1.5 |
| Tube OD 1 IN | 0.551 |
| Tube OD 1 MM | 14.000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
