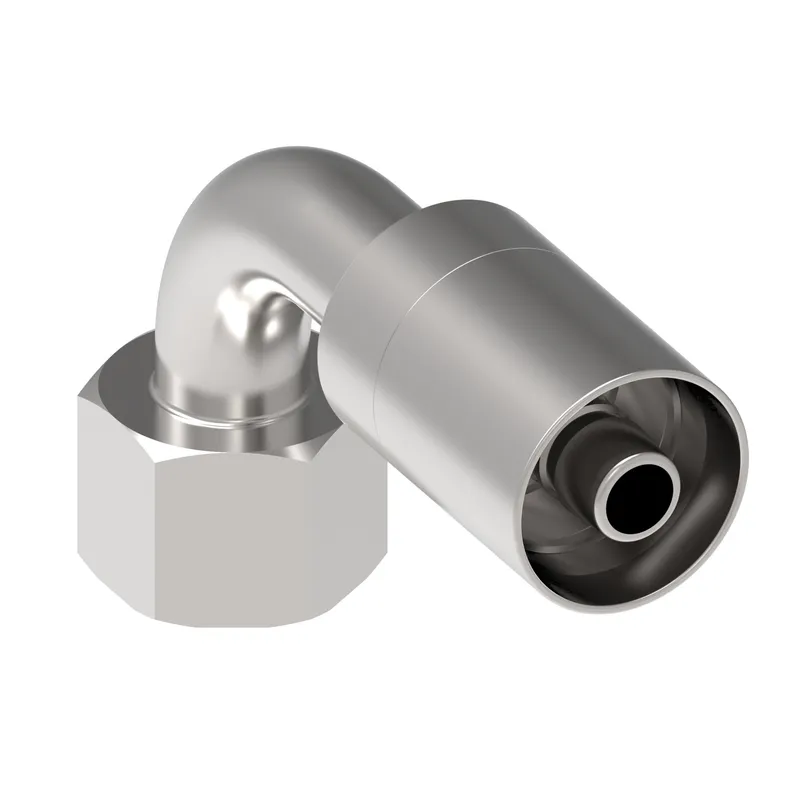

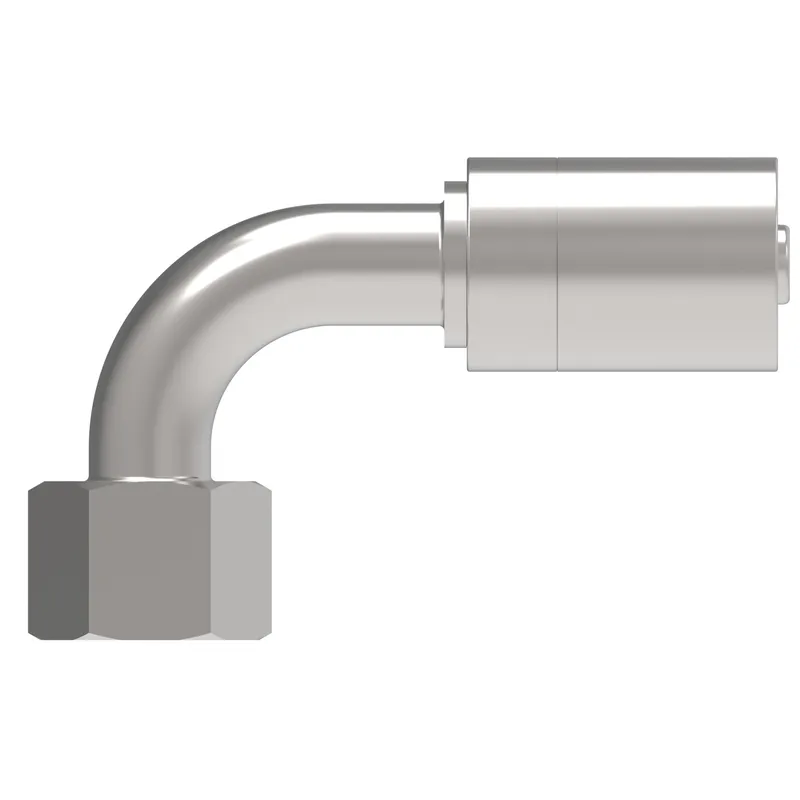

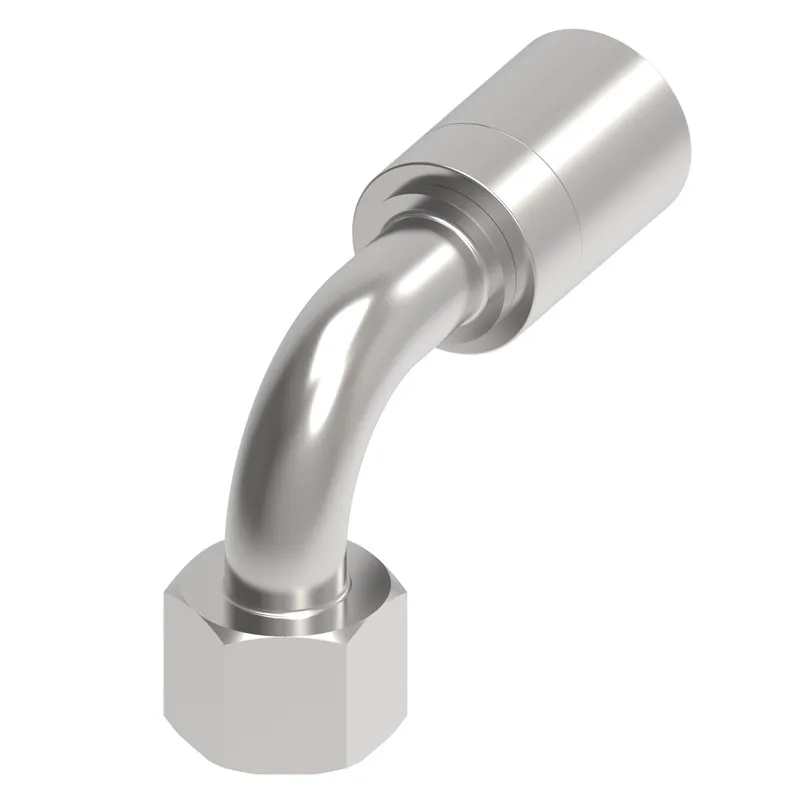

HOSE NIPPLE, 2P/10, DKOL/26, CS, 90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Railway hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2049TC-26-10TZ be shipped?
2049TC-26-10TZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2049TC-26-10TZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2049TC-26-10TZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2049TC-26-10TZ, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/10, DKOL/26, CS, 90D, manufacturer part number 2049TC-26-10TZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.240 |
| A dimension MM | 82.400 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.620 |
| Compatible hose ID MM | 15.900 |
| Construction Style | Crimp |
| Drop dimension IN | 2.027 |
| Drop dimension MM | 51.30 |
| End type 1 | 24 deg. DKO swivel light duty |
| Finish plating | Zinc plating |
| Hex size 2 IN | 1.260 |
| Hex size 2 MM | 32.004 |
| Hose cut off factor IN | 2.000 |
| Hose cut off factor MM | 51.000 |
| Hose size | -10 |
| Inside diameter IN | 0.5000 |
| Inside diameter MM | 12.8000 |
| Product height in | 3.143 |
| Product height mm | 79.832 |
| Product length in | 3.874 |
| Product length mm | 98.399 |
| Product material | Carbon steel |
| Product width in | 1.259 |
| Product width mm | 31.978 mm |
| Series | Winner 2-Piece |
| Thread sealant | No |
