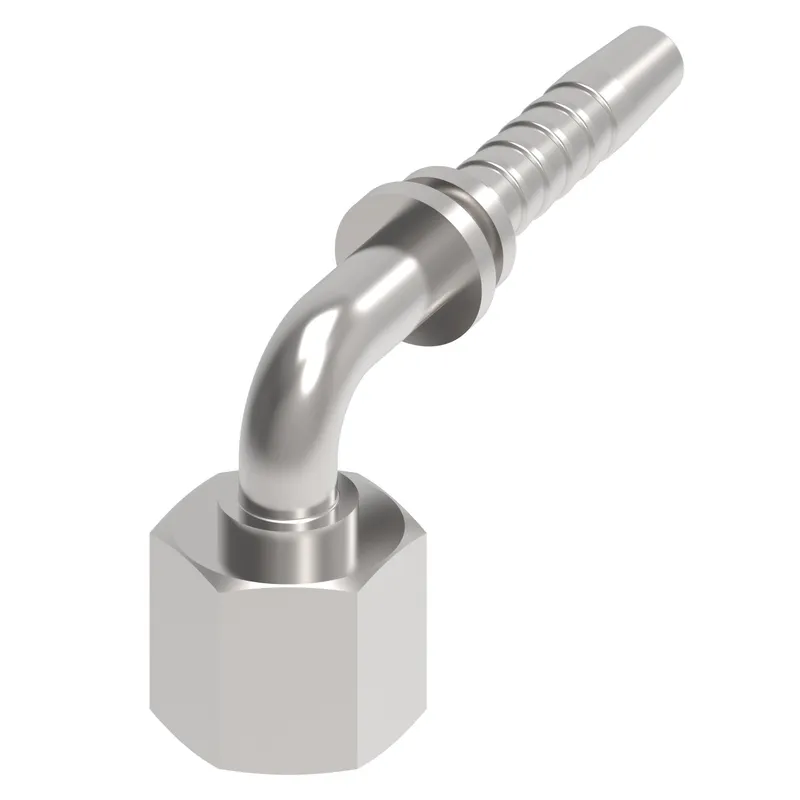

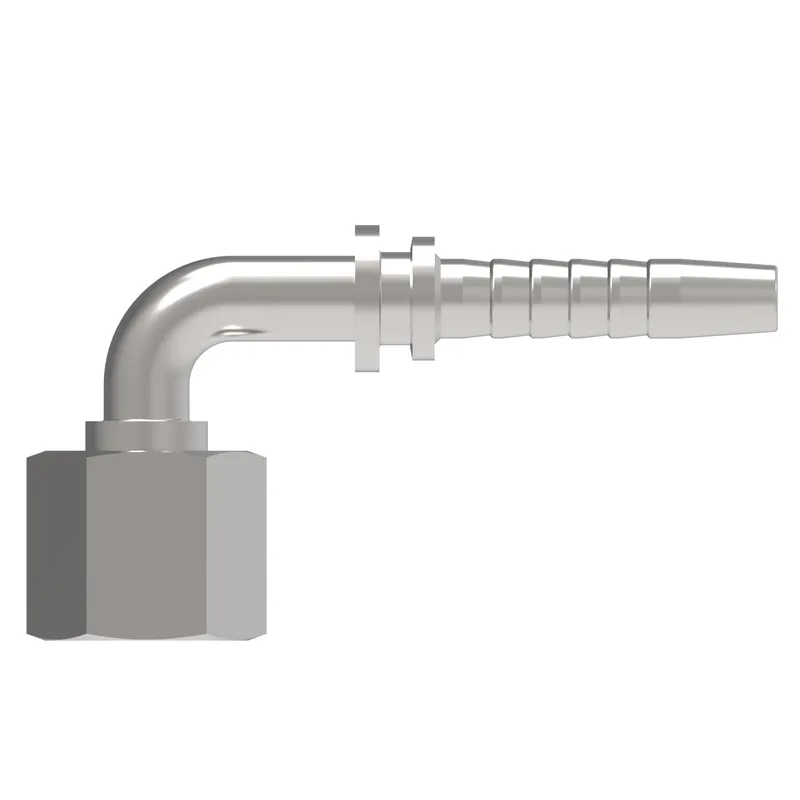

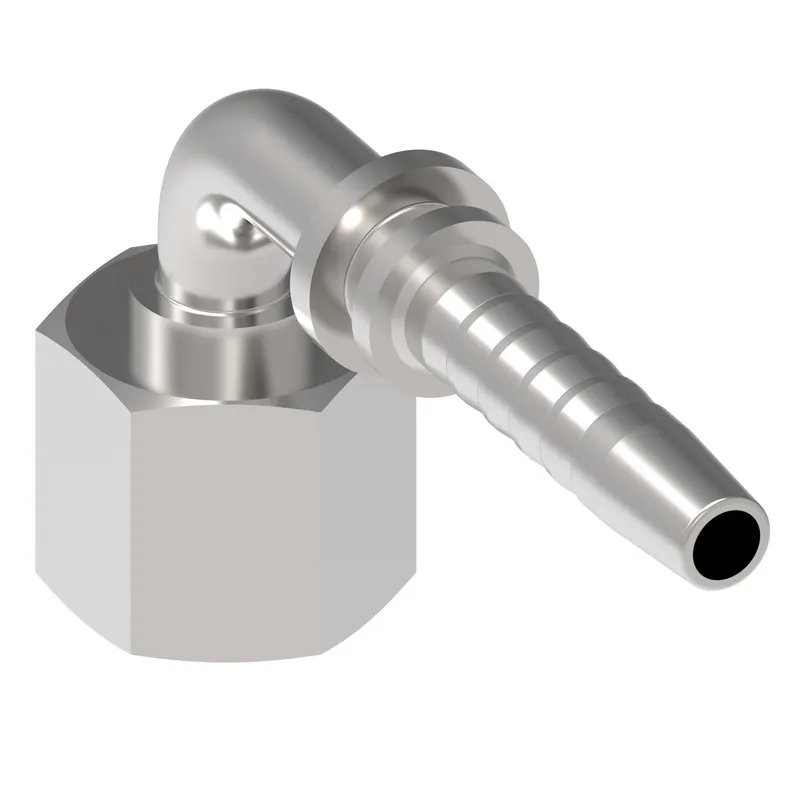

HOSE NIPPLE ASSY,2P/16,DKOL/30,AP,90D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20491-30-16SVW be shipped?
20491-30-16SVW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20491-30-16SVW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20491-30-16SVW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20491-30-16SVW, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/16,DKOL/30,AP,90D, manufacturer part number 20491-30-16SVW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 4.429 |
| A dimension MM | 112.500 |
| Angle shape | 90 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| Drop dimension IN | 2.421 |
| Drop dimension MM | 61.50 |
| End connection torque | 103-118 lb-ft(140-160 Nm) |
| End size 1 | -20 |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 1.417 |
| Hex size 1 MM | 35.992 |
| Hex size 2 IN | 1.420 |
| Hex size 2 MM | 36.068 |
| Hose cut off factor IN | 2.578 |
| Hose cut off factor MM | 65.500 |
| Hose size | -16 |
| Inside diameter IN | 0.590 |
| Inside diameter MM | 15.000 |
| Product height in | 3.900 |
| Product height mm | 99.060 |
| Product length in | 5.137 |
| Product length mm | 130.480 |
| Product material | 316L Stainless steel |
| Product width in | 1.420 |
| Product width mm | 36.068 |
| Seal material | Nitrile (NBR) |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M30x1.5 |
| Tube OD 1 IN | 0.866 |
| Tube OD 1 MM | 22.000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
