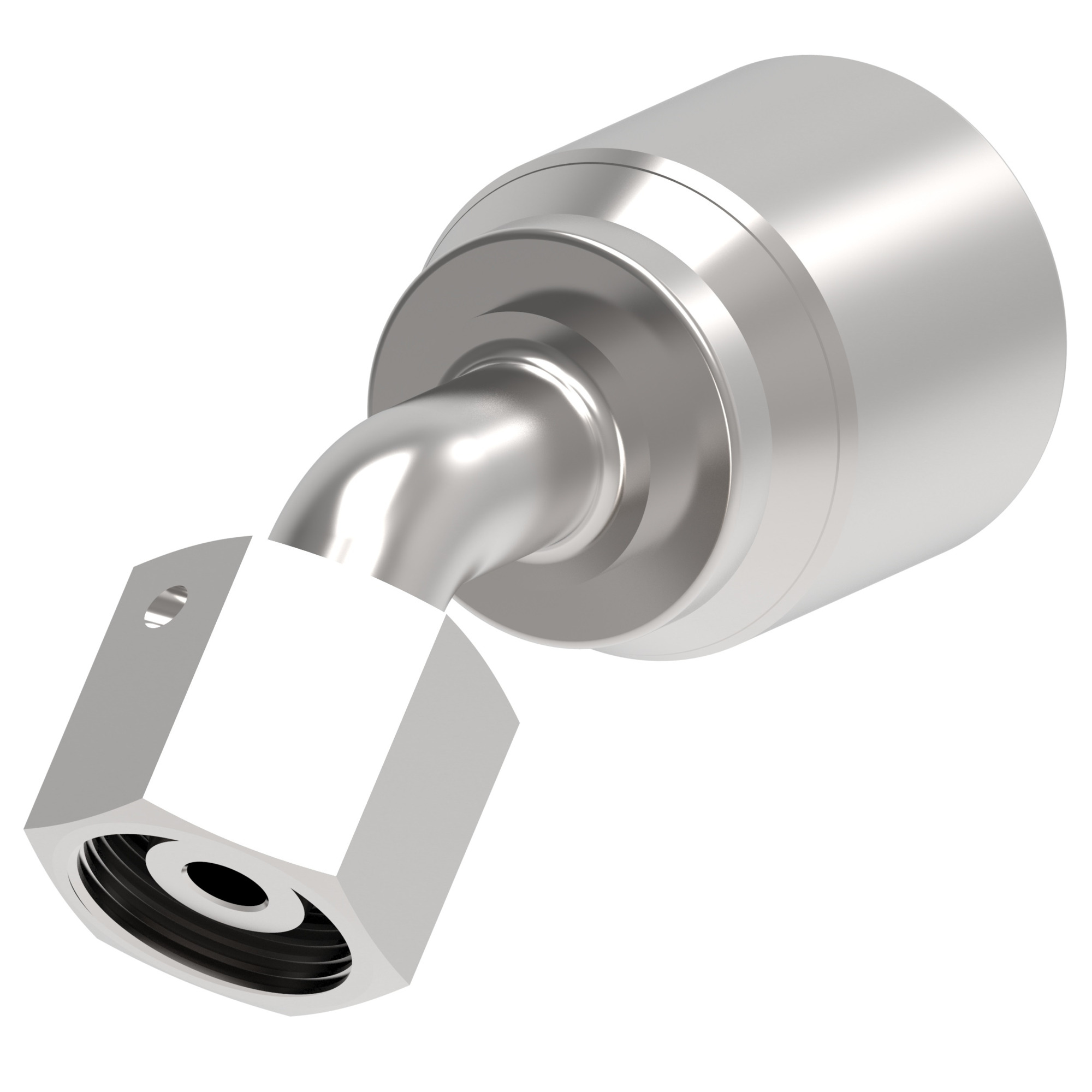

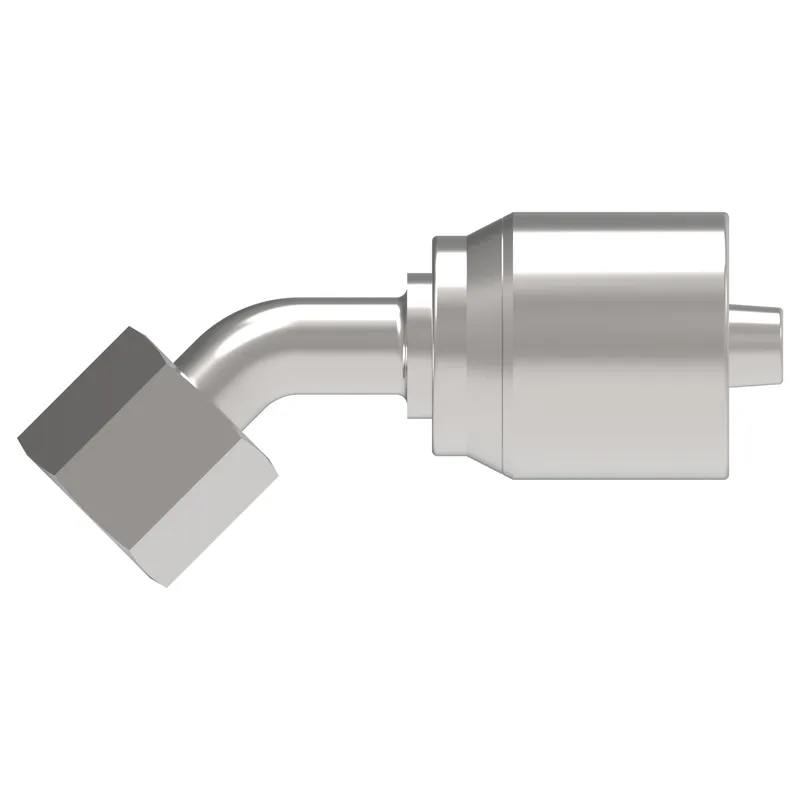

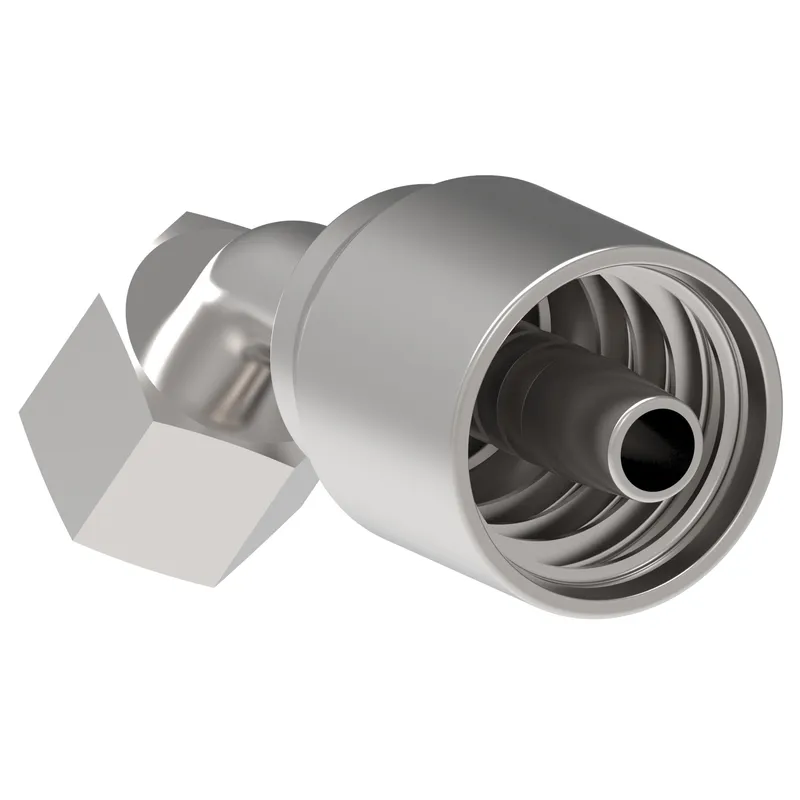

HOSE NIPPLE ASSY,2P/04,DKOL/14,AN,45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20441Y-14-04SRW be shipped?
20441Y-14-04SRW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20441Y-14-04SRW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20441Y-14-04SRW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20441Y-14-04SRW, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/04,DKOL/14,AN,45D, manufacturer part number 20441Y-14-04SRW. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.520 |
| A dimension MM | 64.000 |
| Angle shape | 45 Degree |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Crimp |
| Drop dimension IN | 0.630 |
| Drop dimension MM | 16.00 |
| End connection torque | 19-23 lb-ft(25-30 Nm) |
| End Type 1 | 24 deg. DKO swivel light duty |
| Hex size 1 IN | 0.669 |
| Hex size 1 MM | 16.993 |
| Hex size 2 IN | 0.669 |
| Hex size 2 MM | 16.993 |
| Hose cut off factor IN | 1.500 |
| Hose cut off factor MM | 38.100 |
| Hose size | -4 |
| Inside diameter IN | 0.160 |
| Inside diameter MM | 4.000 |
| Product height in | 1.539 |
| Product height mm | 39.090 |
| Product length in | 3.050 |
| Product length mm | 77.470 |
| Product material | 304 Stainless steel |
| Product width in | 0.897 |
| Product width mm | 22.783 |
| Seal material | Nitrile (NBR) |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M14x1.5 |
| Tube OD 1 IN | 0.314 |
| Tube OD 1 MM | 8.000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
