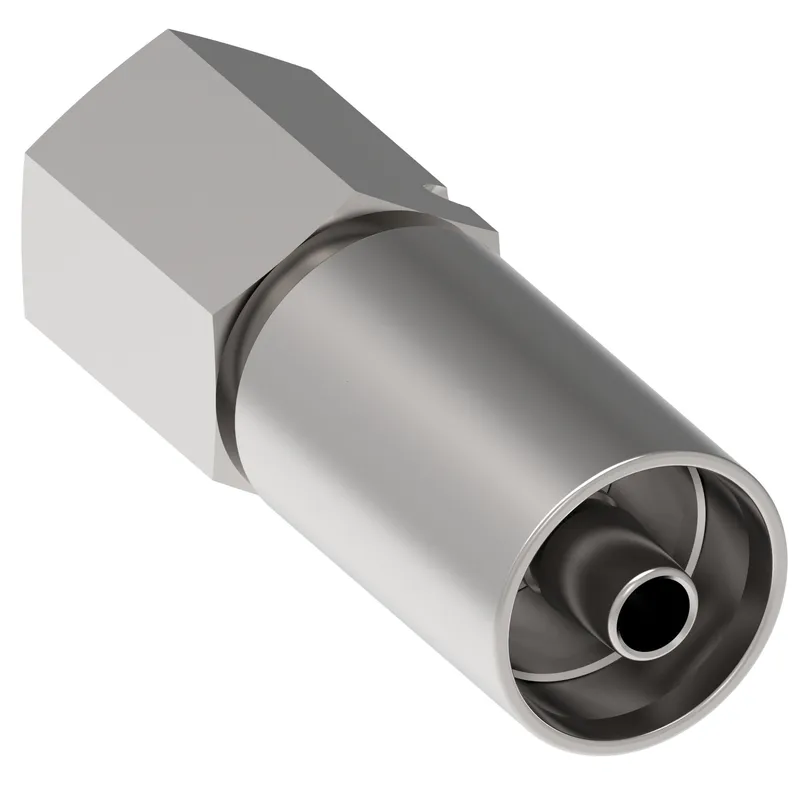

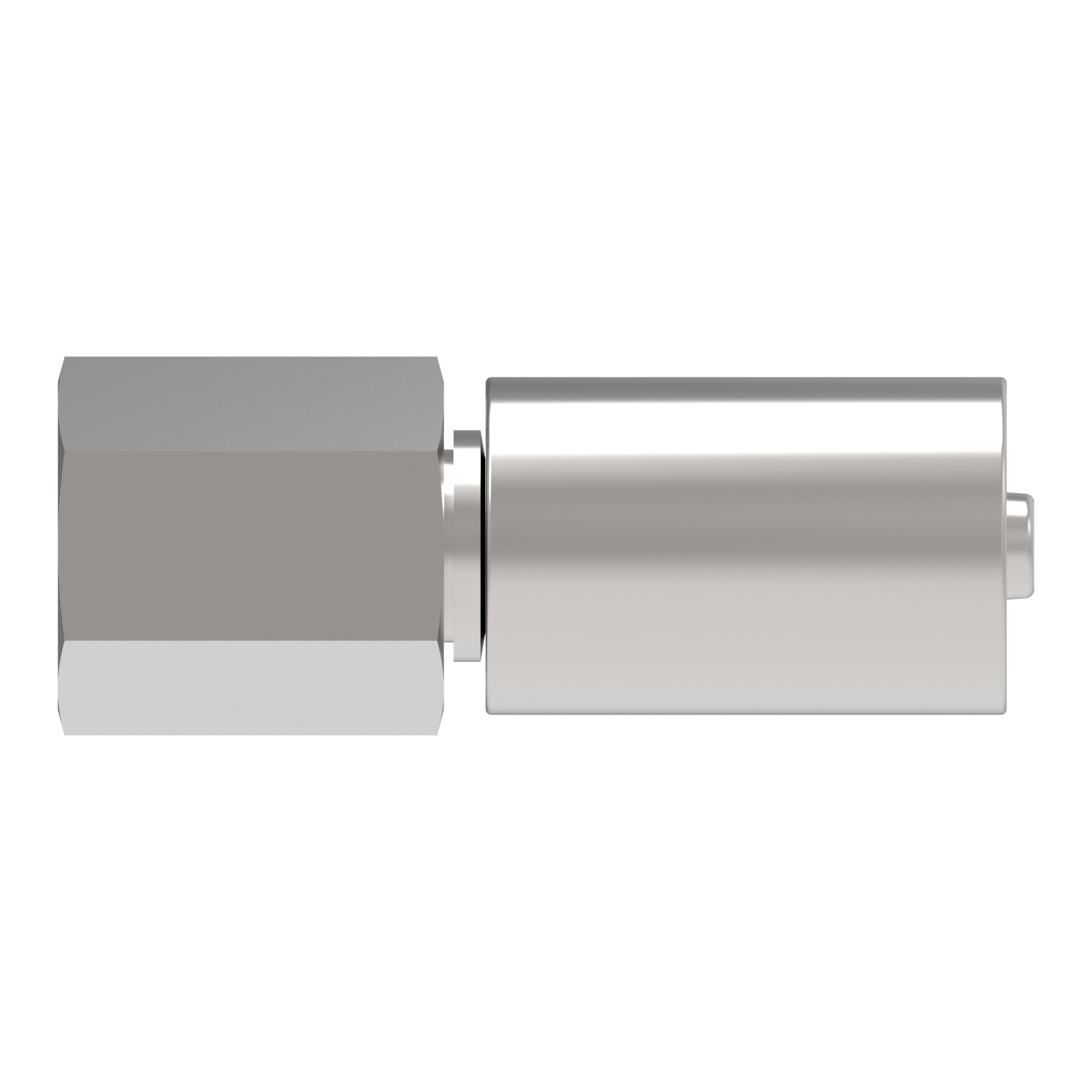

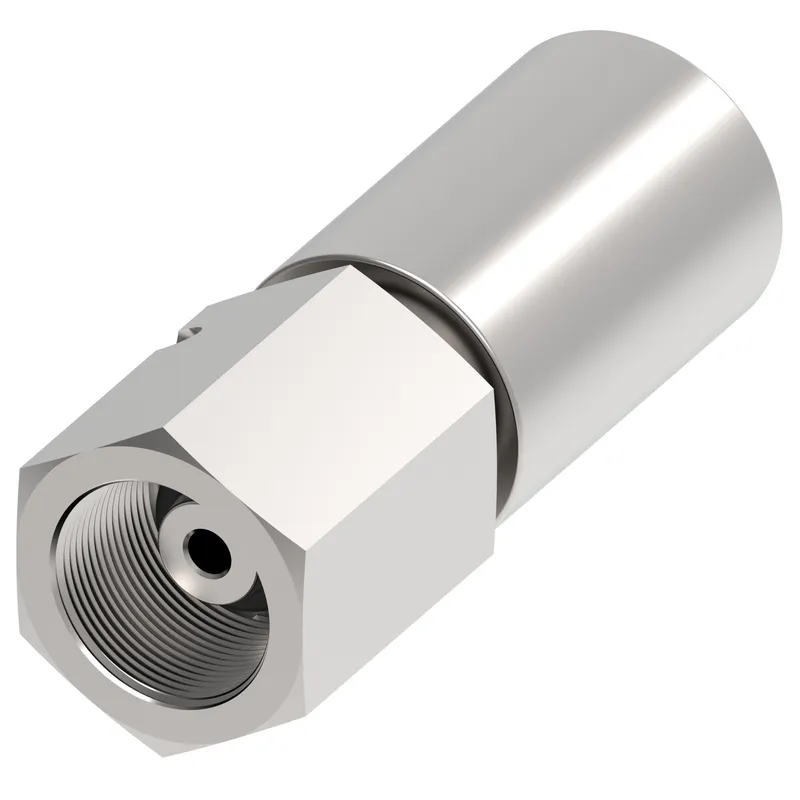

HOSE NIPPLE, 2P/16, DKOL/36, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Railway hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 2041TC-36-16WZ be shipped?
2041TC-36-16WZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 2041TC-36-16WZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 2041TC-36-16WZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2041TC-36-16WZ, subject to availability and destination.
Danfoss HOSE NIPPLE, 2P/16, DKOL/36, CS, STR, manufacturer part number 2041TC-36-16WZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.566 |
| A dimension MM | 65.200 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| End type 1 | 24 deg. DKO swivel light duty |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.614 |
| Hex size 1 MM | 40.996 |
| Hex size 2 IN | 1.600 |
| Hex size 2 MM | 40.640 |
| Hose cut off factor IN | 1.133 |
| Hose cut off factor MM | 28.800 |
| Hose size | -16 |
| Inside diameter IN | 0.8140 |
| Inside diameter MM | 20.7000 |
| Product height in | 1.840 |
| Product height mm | 46.736 |
| Product length in | 2.822 |
| Product length mm | 71.678 |
| Product material | Carbon steel |
| Product width in | 1.600 |
| Product width mm | 40.640 mm |
| Seal material | Nitrile (NBR) |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M36x1.5 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
