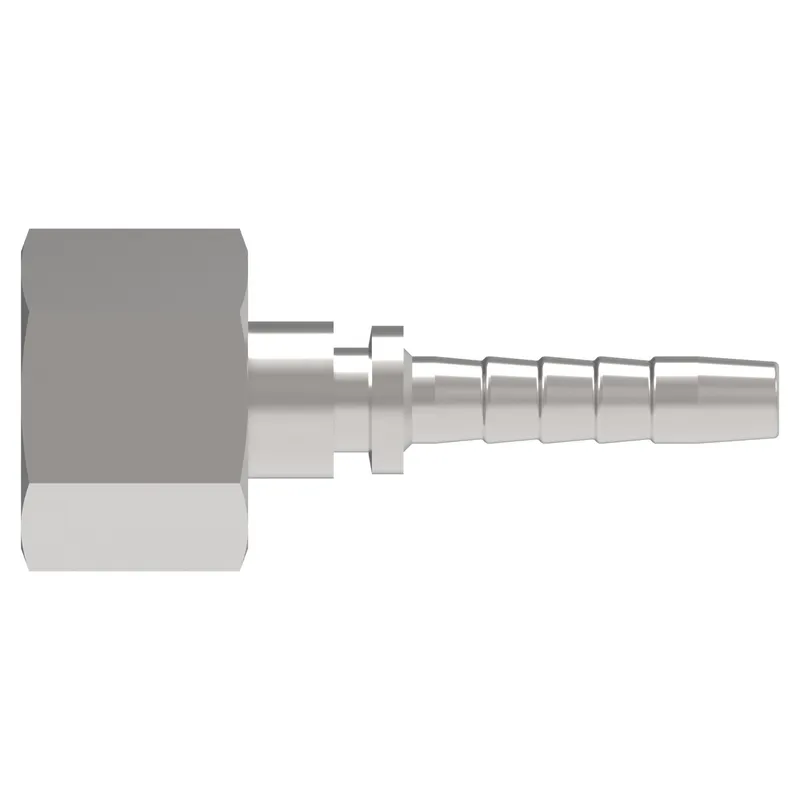

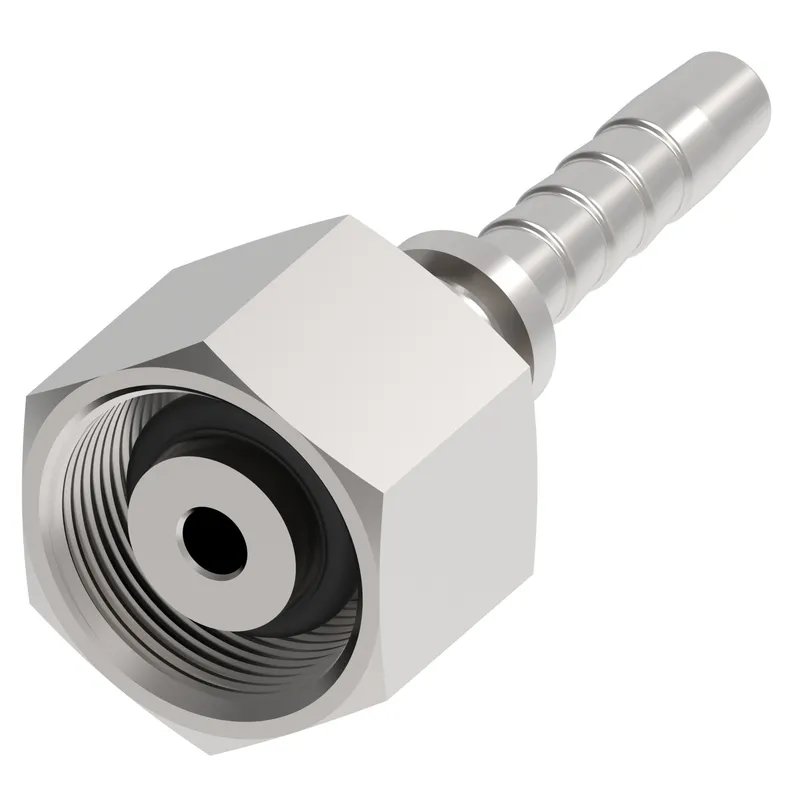

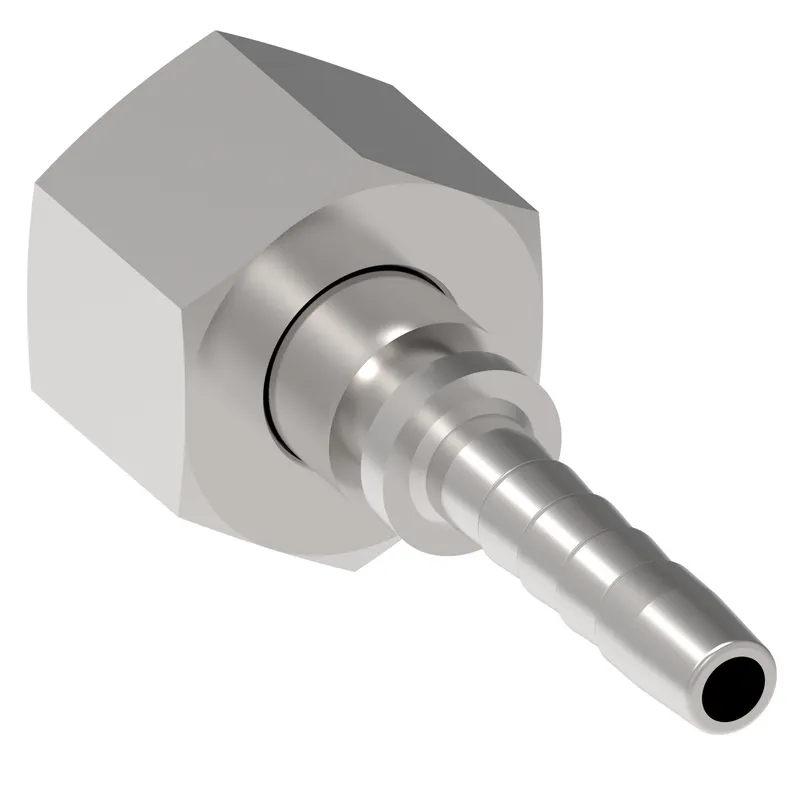

HOSE NIPPLE ASSY,2P/16,DKOL/45,AP,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20411-45-16SVT be shipped?
20411-45-16SVT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20411-45-16SVT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20411-45-16SVT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20411-45-16SVT, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,2P/16,DKOL/45,AP,STR, manufacturer part number 20411-45-16SVT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.300 |
| A dimension MM | 84.000 |
| Angle shape | Straight |
| Brand | Winner by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| End size 2 | -4 |
| End Type 1 | 24 deg. DKO swivel light duty |
| End Type 2 | Line/hose/tube |
| Hex size 1 IN | 1.970 |
| Hex size 1 MM | 50.038 |
| Hose cut off factor IN | 1.450 |
| Hose cut off factor MM | 37.000 |
| Hose size | -16 |
| Inside diameter IN | 0.820 |
| Inside diameter MM | 21.000 |
| Product height in | 2.260 |
| Product height mm | 57.404 |
| Product length in | 3.460 |
| Product length mm | 87.884 |
| Product material | 316L Stainless steel |
| Product width in | 1.960 |
| Product width mm | 49.784 |
| Seal material | Nitrile (NBR) |
| Series | Winner 2-Piece |
| Thread sealant | No |
| Thread size 1 | M45x2 |
| Tube OD 1 MM | 35.000 |
| Working temperature max C | 100 |
| Working temperature max F | 212 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
