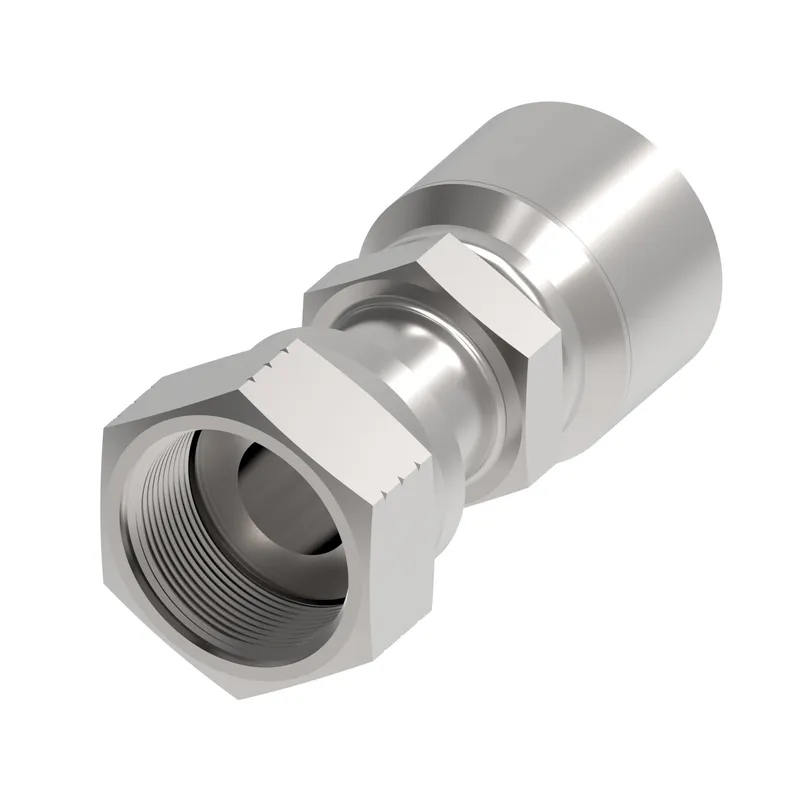

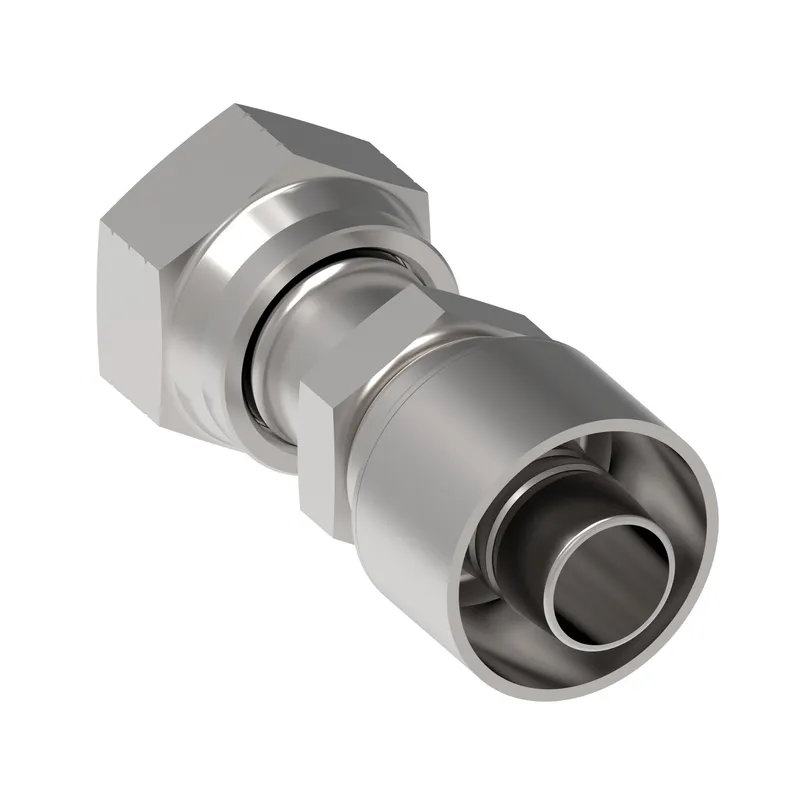

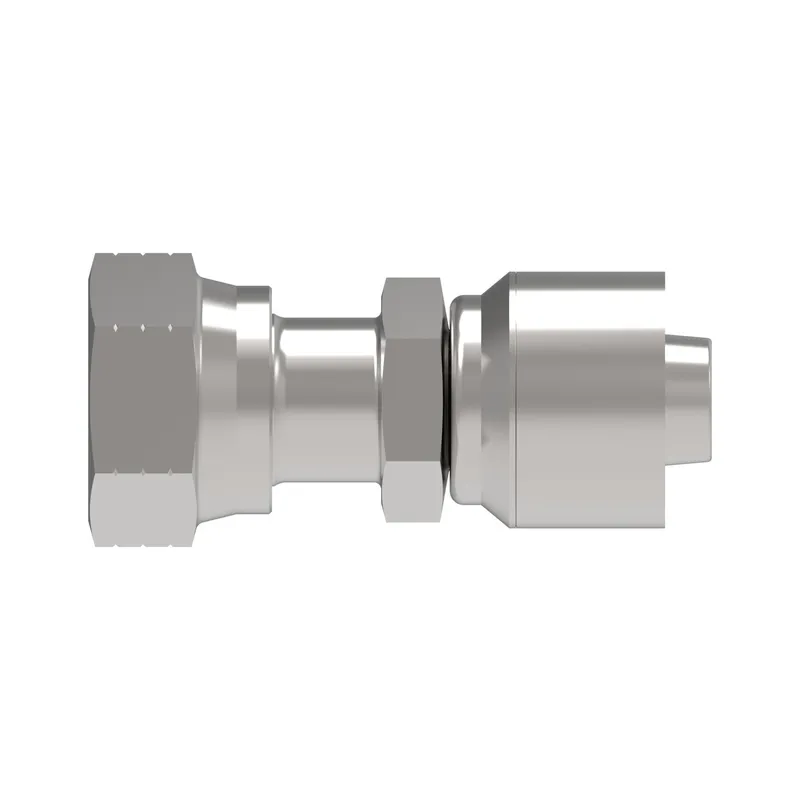

HOSE FTG, 1G/16, ORS-F/16, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1G16FR16 be shipped?
1G16FR16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1G16FR16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1G16FR16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G16FR16, subject to availability and destination.
Danfoss HOSE FTG, 1G/16, ORS-F/16, CS, STR, manufacturer part number 1G16FR16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 3.020 |
| A dimension MM | 76.800 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Construction Style | Crimp |
| End connection torque | 92-100 lb-ft(125-136 Nm) |
| End size 1 | -16 |
| End Type 1 | Female ORFS swivel |
| Finish plating | Zinc plating |
| Hex size 1 IN | 1.610 |
| Hex size 1 MM | 40.894 |
| Hex size 2 IN | 1.410 |
| Hex size 2 MM | 36.000 |
| Hose cut off factor IN | 1.930 |
| Hose cut off factor MM | 49.100 |
| Hose size | -16 |
| Inside diameter IN | 0.820 |
| Inside diameter MM | 20.700 |
| Product height in | 1.850 |
| Product height mm | 46.990 |
| Product length in | 3.610 |
| Product length mm | 91.694 |
| Product material | Carbon steel |
| Product width in | 1.610 |
| Product width mm | 40.894 |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | OTC |
| Thread sealant | No |
| Thread size 1 | 1 7/16-12 UN |
| Working pressure max BAR | 414.00 |
| Working pressure max PSI | 6000.00 |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
