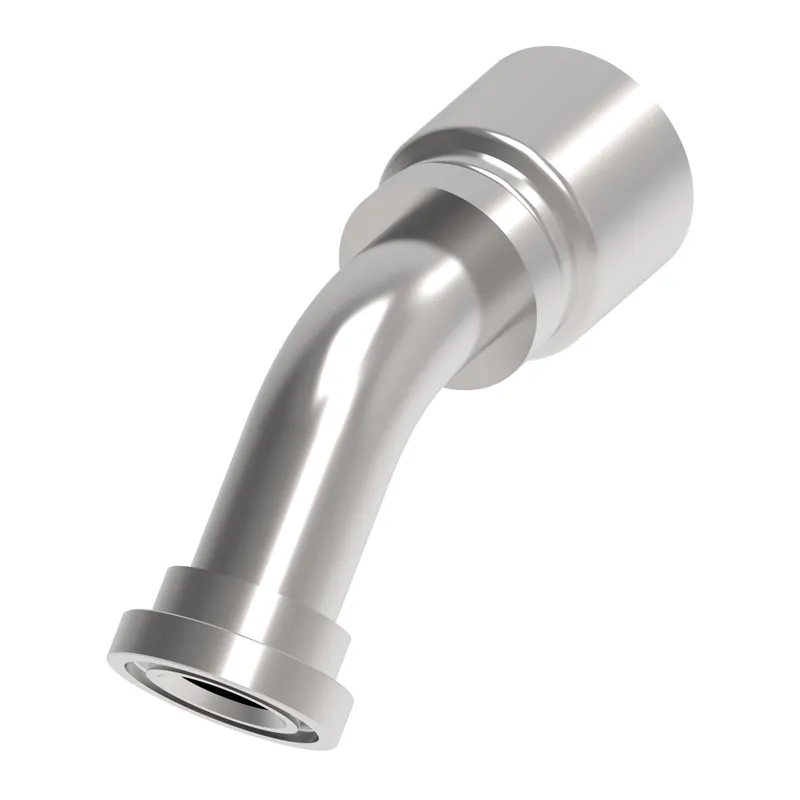

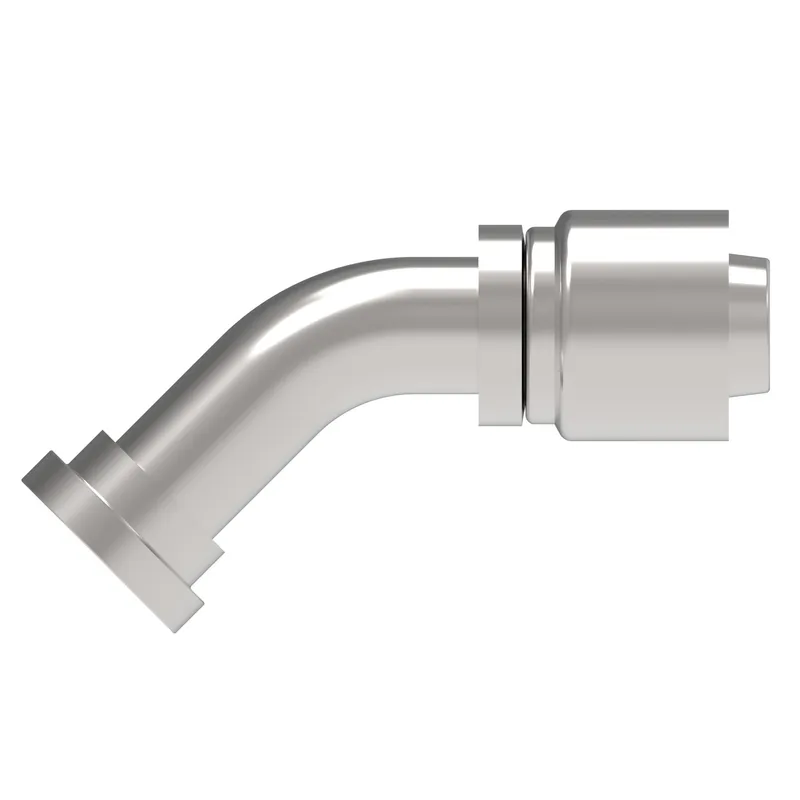

HOSE FTG, 1G/20, C62/16, CS, 45D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1G16FHA20.050 be shipped?
1G16FHA20.050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1G16FHA20.050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1G16FHA20.050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1G16FHA20.050, subject to availability and destination.
Danfoss HOSE FTG, 1G/20, C62/16, CS, 45D, manufacturer part number 1G16FHA20.050. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 5.790 |
| A dimension MM | 147.000 |
| Angle shape | 45 Degree |
| Brand | Aeroquip by Danfoss |
| Construction Style | Crimp |
| Drop dimension IN | 1.990 |
| Drop dimension MM | 50.70 |
| End size 1 | -16 |
| End Type 1 | Split flange code 62 |
| Finish plating | Zinc plating |
| Hose cut off factor IN | 4.060 |
| Hose cut off factor MM | 103.000 |
| Hose size | -20 |
| Inside diameter IN | 1.050 |
| Inside diameter MM | 26.600 |
| Product height in | 1.996 |
| Product height mm | 50.701 |
| Product length in | 5.787 |
| Product length mm | 147.000 |
| Product material | Carbon steel |
| Product width in | 1.990 |
| Product width mm | 50.541 |
| Series | OTC |
| Thread sealant | No |
| Working pressure max BAR | 414 |
| Working pressure max PSI | 6000 |
| Working temperature max C | 150 |
| Working temperature max F | 302 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
