TUBE NIPPLE, 1A/12, 06, CS
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1F90001-1206AR be shipped?
1F90001-1206AR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1F90001-1206AR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1F90001-1206AR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1F90001-1206AR, subject to availability and destination.

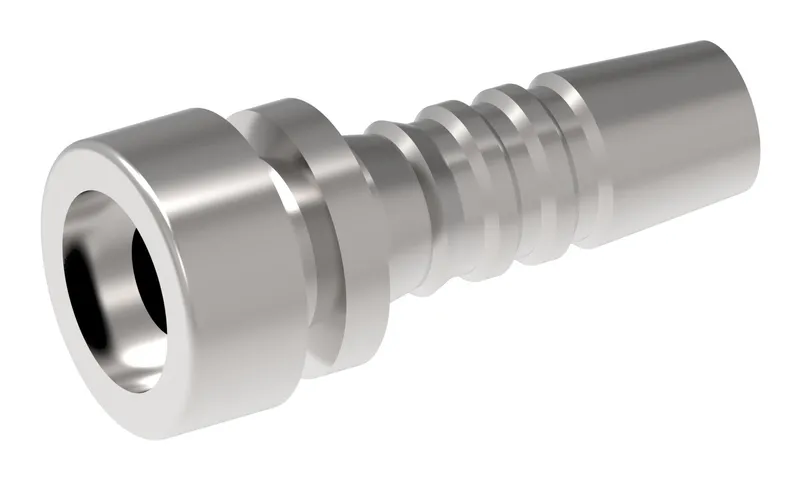

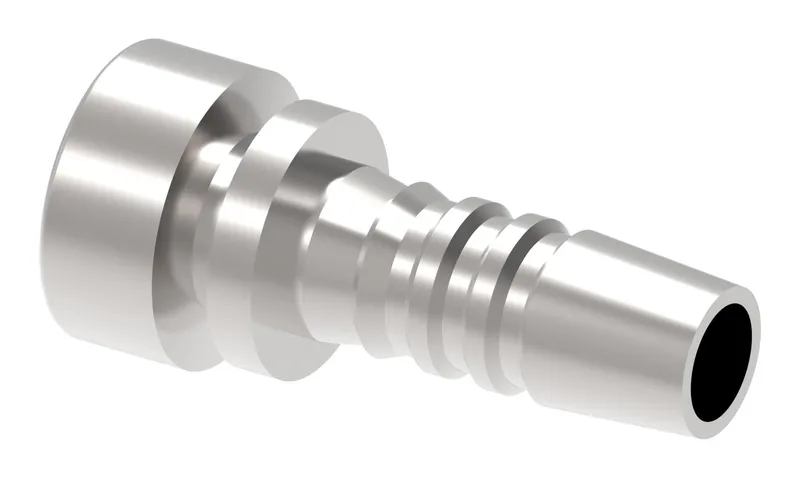

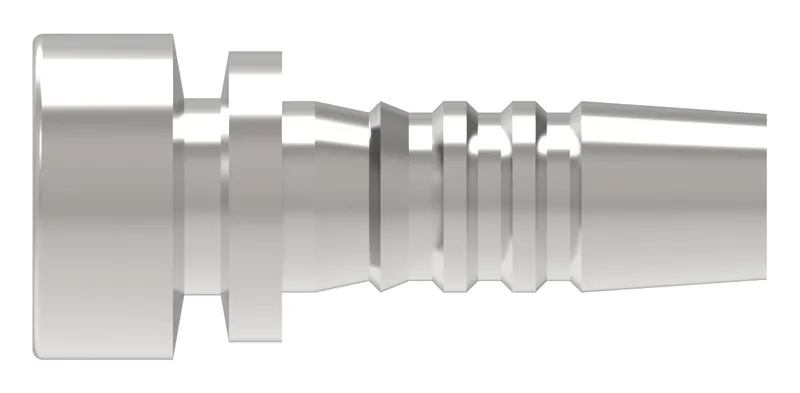

Danfoss TUBE NIPPLE, 1A/12, 06, CS, manufacturer part number 1F90001-1206AR. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 1.500 |
| A dimension MM | 38.300 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.380 |
| Compatible hose ID MM | 9.500 |
| Compatible hoses | 2781 |
| Construction Style | Crimp |
| End size 1 | -12 |
| End Type 2 | Line/hose/tube |
| Finish plating | Protective oil |
| Hose cut off factor IN | 0.990 |
| Hose cut off factor MM | 25.300 |
| Hose size | -6 |
| Inside diameter IN | 0.260 |
| Inside diameter MM | 6.700 |
| Product height in | 0.708 |
| Product height mm | 17.983 |
| Product length in | 1.507 |
| Product length mm | 38.278 |
| Product material | Carbon steel |
| Product width in | 0.708 |
| Product width mm | 17.983 |
| Series | 1A/Z Series |
| Thread sealant | No |
