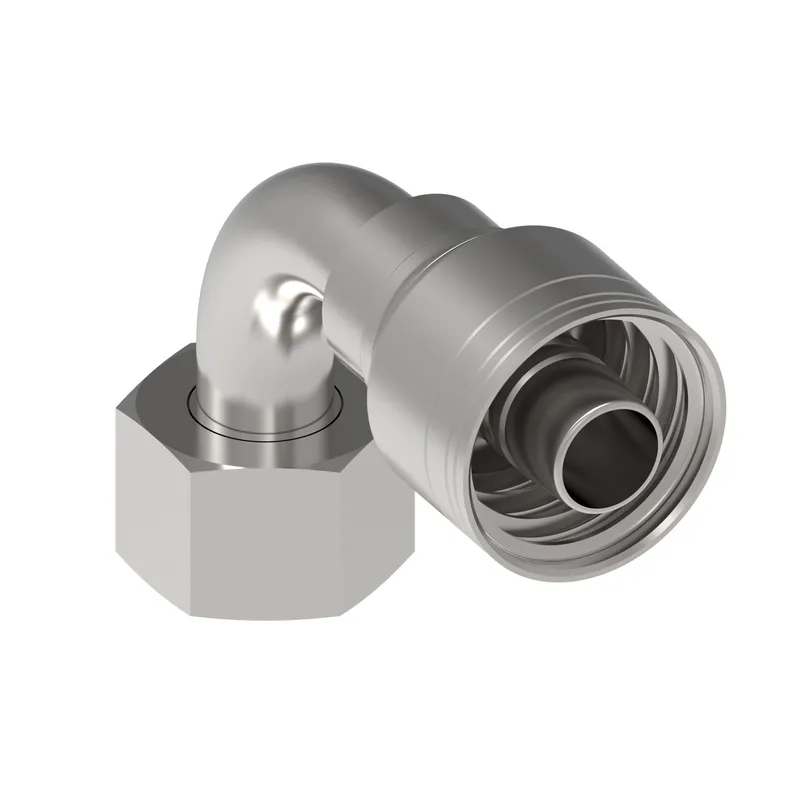

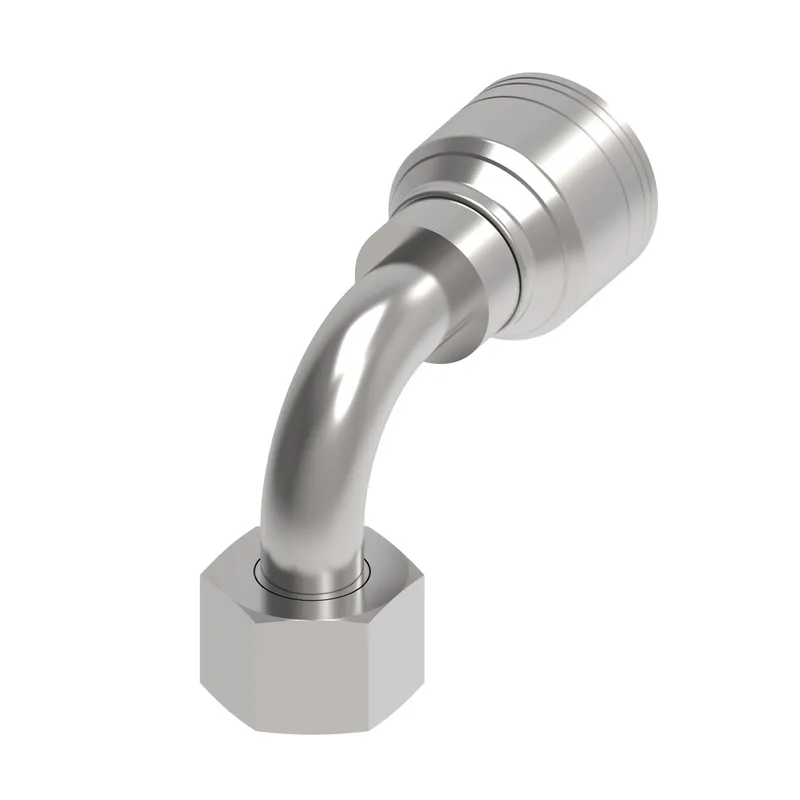

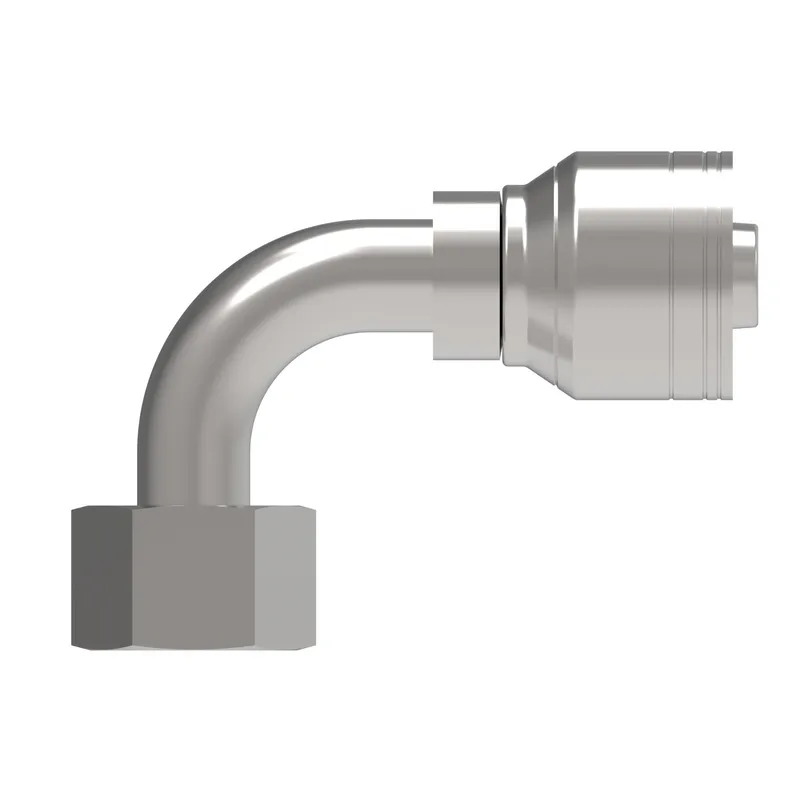

HOSE FTG, 1A/10, DKOH-B/10, CS, 90D

Name: HOSE FTG, 1A/10, DKOH-B/10, CS, 90D
Brand: Danfoss (Drives)
SKU: 1A16DSB10.085

MPN: 1A16DSB10.085 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1A16DSB10.085 be shipped?

1A16DSB10.085 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A16DSB10.085 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A16DSB10.085 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A16DSB10.085, subject to availability and destination.

HOSE FTG, 1A/10, DKOH-B/10, CS, 90D - 1A16DSB10.085

Specifications

A dimension IN	3.230
A dimension MM	82.000
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	GH663
Construction Style	Crimp
Drop dimension IN	3.346
Drop dimension MM	85.00
End connection torque	103-118 lb-ft(140-160 Nm)
End size 1	-10
End Type 1	24 deg. DKO swivel heavy duty
Finish plating	Dura-Kote
Hex size 1 IN	1.417
Hex size 1 MM	36.000
Hex size 2 IN	0.000
Hex size 2 MM	36.068
Hose cut off factor IN	2.070
Hose cut off factor MM	52.600
Hose size	-10
Inside diameter IN	0.500
Inside diameter MM	12.800
Product height in	4.040
Product height mm	102.616
Product length in	3.940
Product length mm	100.076
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068
Proposition 65	Cancer and Reproductive Harm
Seal material	Nitrile (NBR)
Series	1A/Z Series
Thread sealant	No
Thread size 1	M30x2
Tube OD 1 IN	0.787
Tube OD 1 MM	20.000
Working pressure max BAR	280.00
Working pressure max PSI	4050.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
