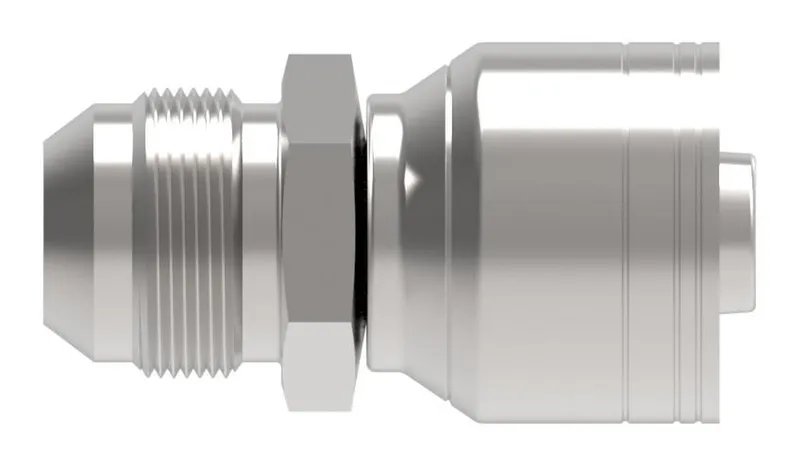

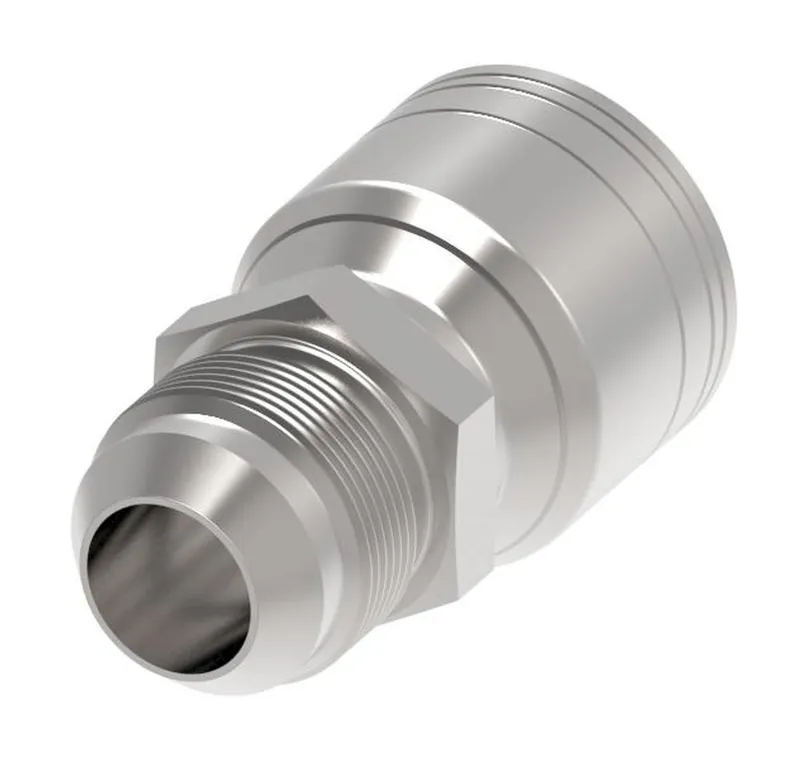

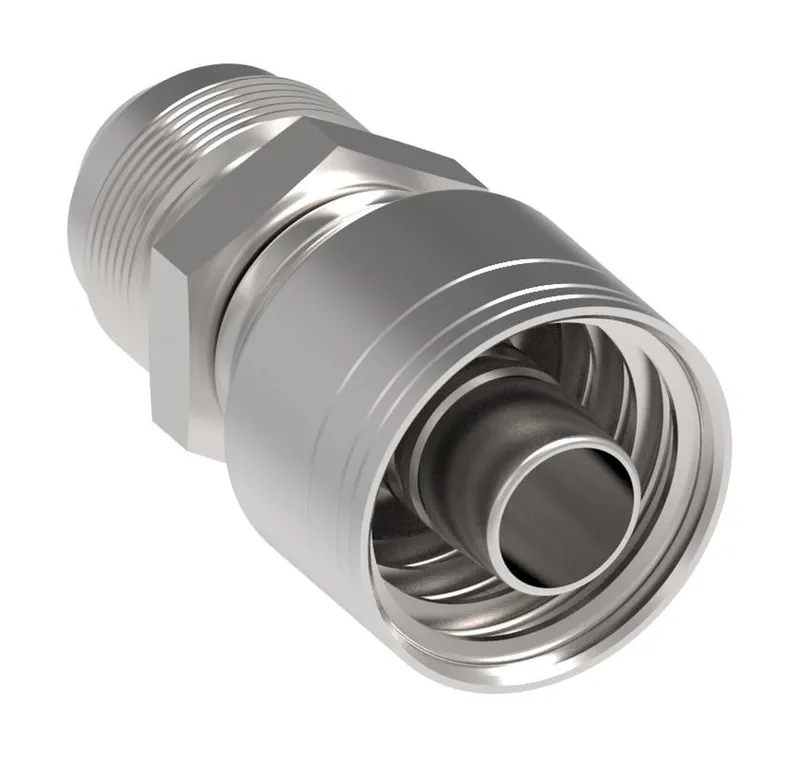

HOSE FTG, 1A/12, JIC-M/12, CS, STR

Name: HOSE FTG, 1A/12, JIC-M/12, CS, STR
Brand: Danfoss (Drives)
SKU: 1A12MJ12

MPN: 1A12MJ12 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1A12MJ12 be shipped?

1A12MJ12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1A12MJ12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1A12MJ12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1A12MJ12, subject to availability and destination.

HOSE FTG, 1A/12, JIC-M/12, CS, STR - 1A12MJ12

Specifications

A dimension IN	2.960
A dimension MM	75.300
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	79-87 lb-ft(108-119 Nm)
End size 1	-12
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 1 IN	1.181
Hex size 1 MM	30.000
Hex size 2 MM	27.000
Hose cut off factor IN	1.730
Hose cut off factor MM	43.900
Hose size	-24
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.563
Product height mm	39.700
Product length in	2.935
Product length mm	74.550
Product material	Carbon steel
Product width in	1.563
Product width mm	39.7
Proposition 65	Cancer and Reproductive Harm
Series	1A/Z Series
Thread sealant	No
Thread size 1	1 1/16-12 UN
Working pressure max BAR	276.00
Working pressure max PSI	4000.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
