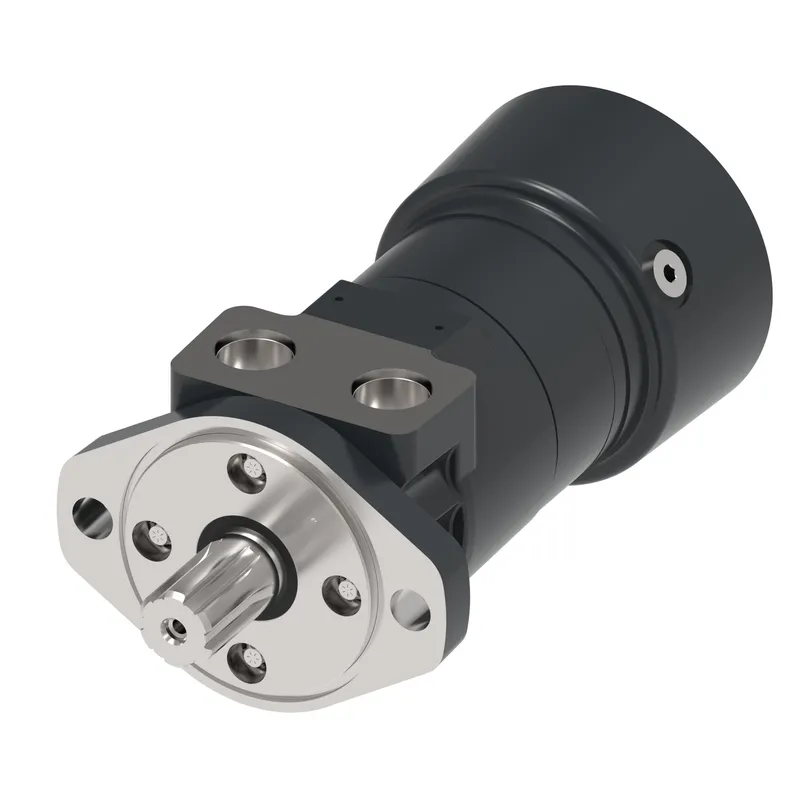

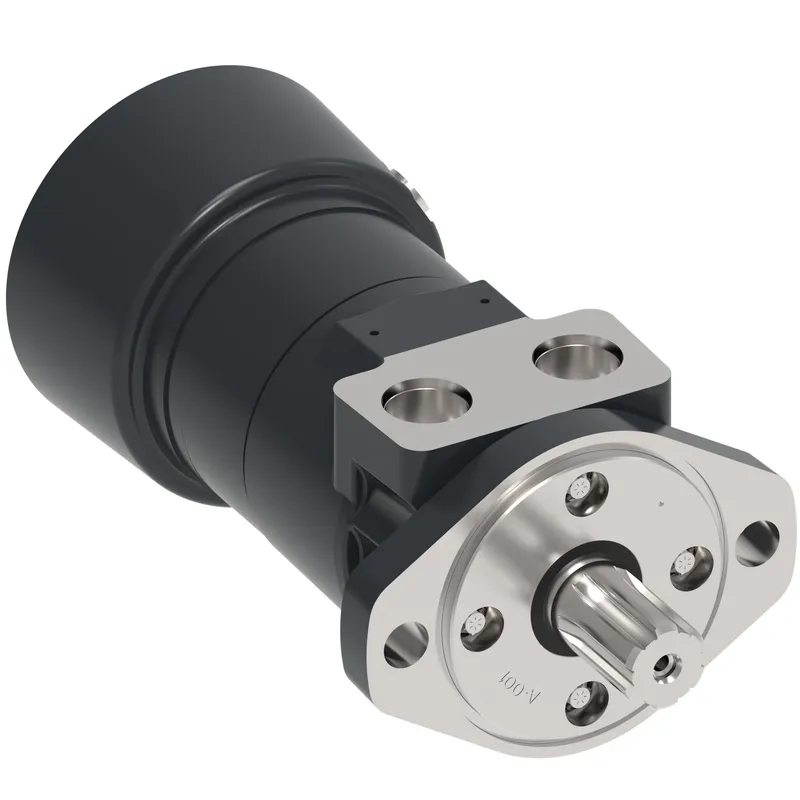

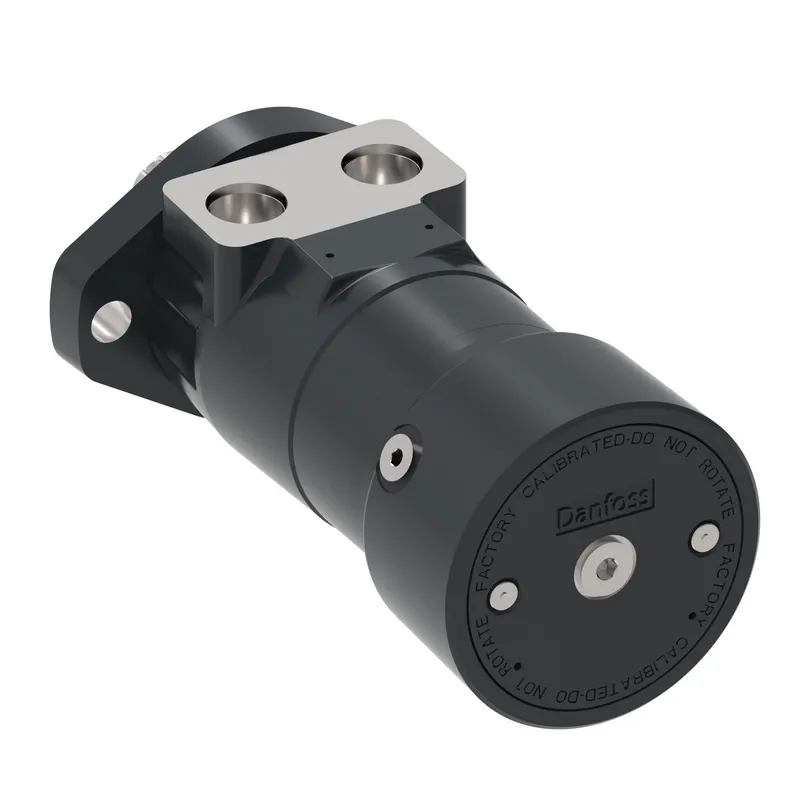

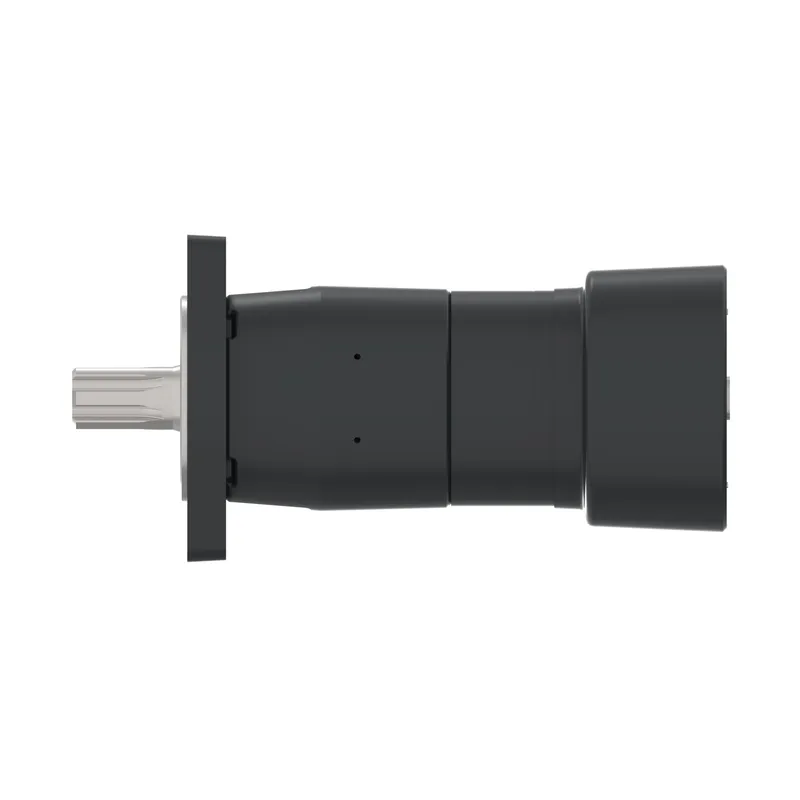

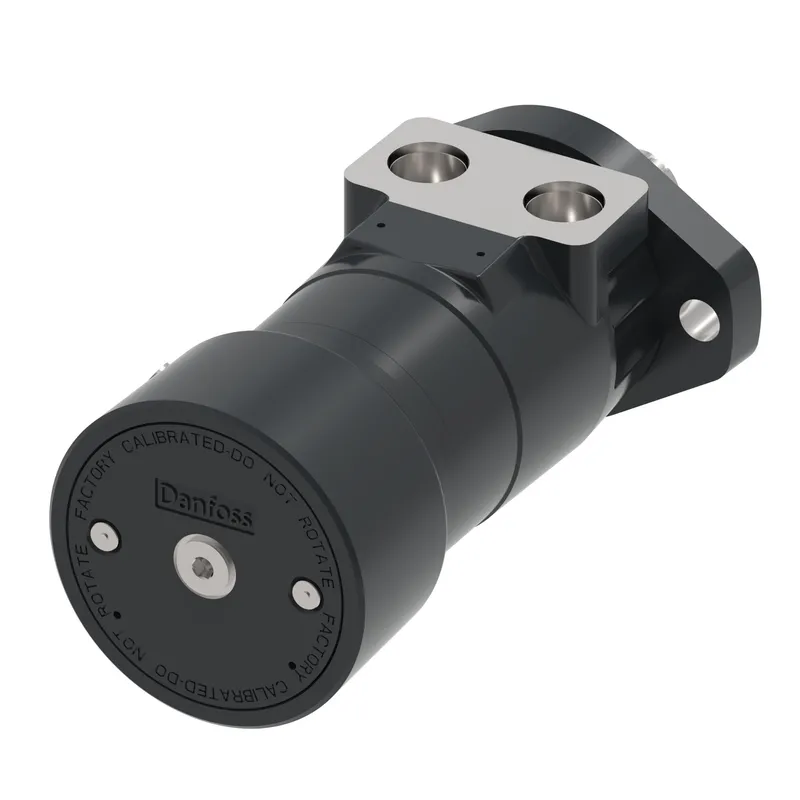

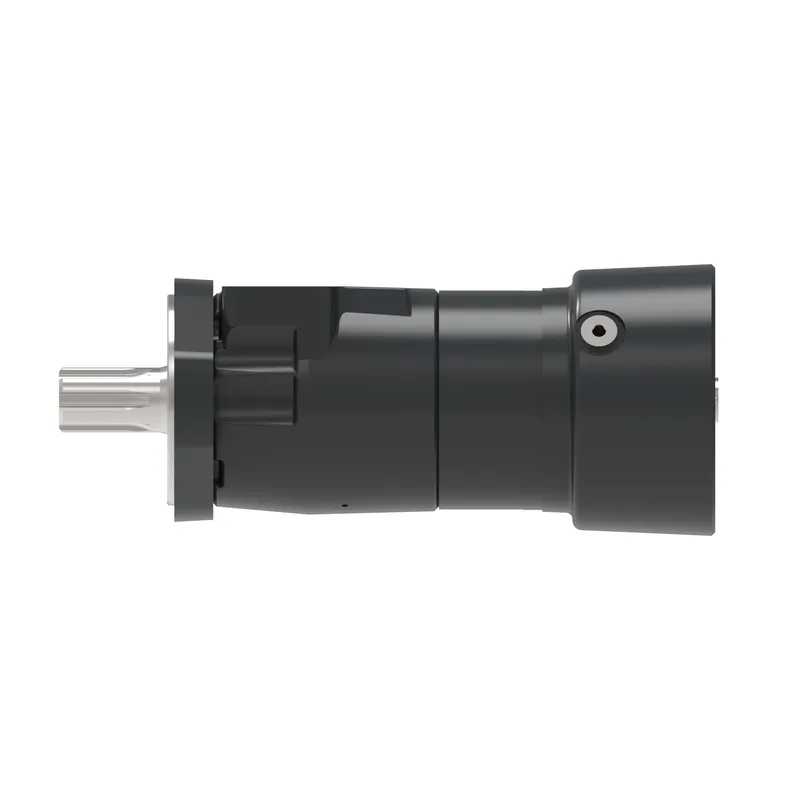

MOTOR-ORBITAL,T BR SERIES 195 [11.9], MTB119CA16AB00A0060000GS0AM27B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 185-2566-002 be shipped?
185-2566-002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 185-2566-002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 185-2566-002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 185-2566-002, subject to availability and destination.
Danfoss MOTOR-ORBITAL,T BR SERIES 195 [11.9], MTB119CA16AB00A0060000GS0AM27B, manufacturer part number 185-2566-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MTB119CA16AB00A0060000GS0AM27B |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Mounting type | 2 s p83 b106 h10 |
| Motor size | 195 |
| Geometric displacement [cm3/r [in3/r]] | 195 [11.9] |
| Motor type | Motor - Brake |
| Mounting flange type | 2 Bolt - A |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 82.5 x 6.1, 106.4, 10.4 [3.25 x 0.24, 4.19, 0.41] SAE A |
| Shaft type | Splined |
| Shaft dimension | Dia. 7/8 inch, 13T |
| Shaft Key | n/a |
| Main port thread type | NPT / NPTF |
| Main port style | Sideport - aligned |
| Main port dimension | 1/2 - 14 NPTF |
| Drain Port Dimension | None |
| Brake Release Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring Port |
| Painted | Yes |
| Paint information | Primer, Grey |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Low pressure, Double shaft seal - Spec. Component |
| Seal Kit | No data available |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Customized |
| Brand | Danfoss |
| Output shaft type | 16 Spl 13t 16/32 |
| Seal options | Double shaft seals |
| Series | T series motor w/brake |
| Sub brand | Char-Lynn |
