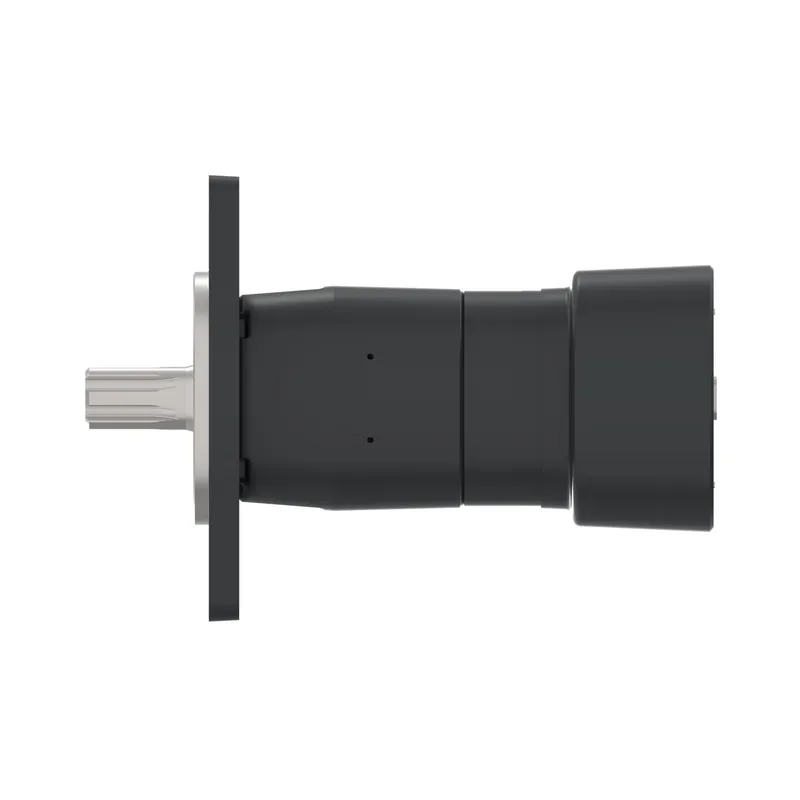

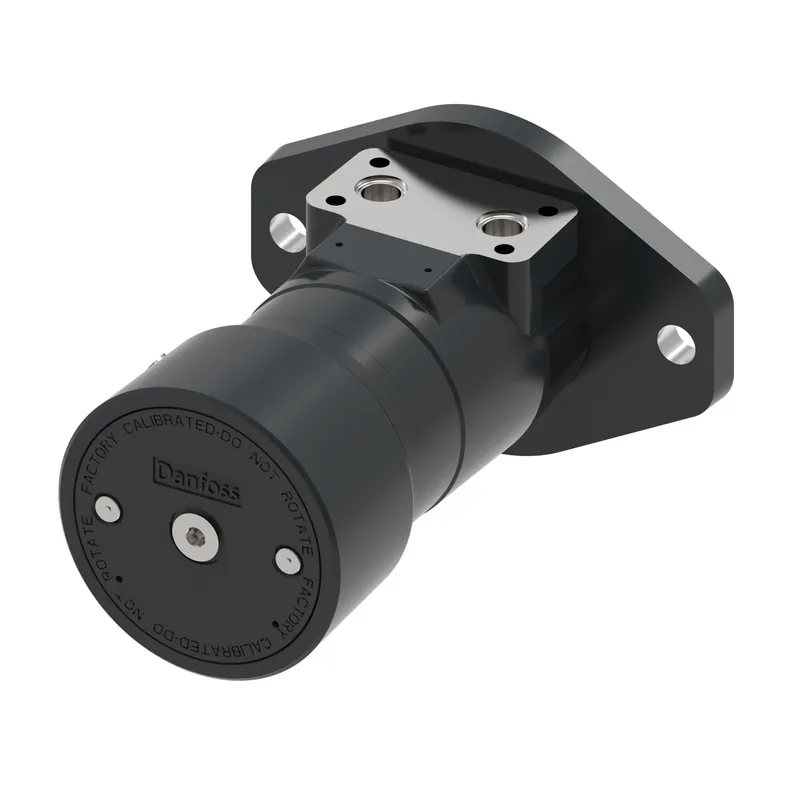

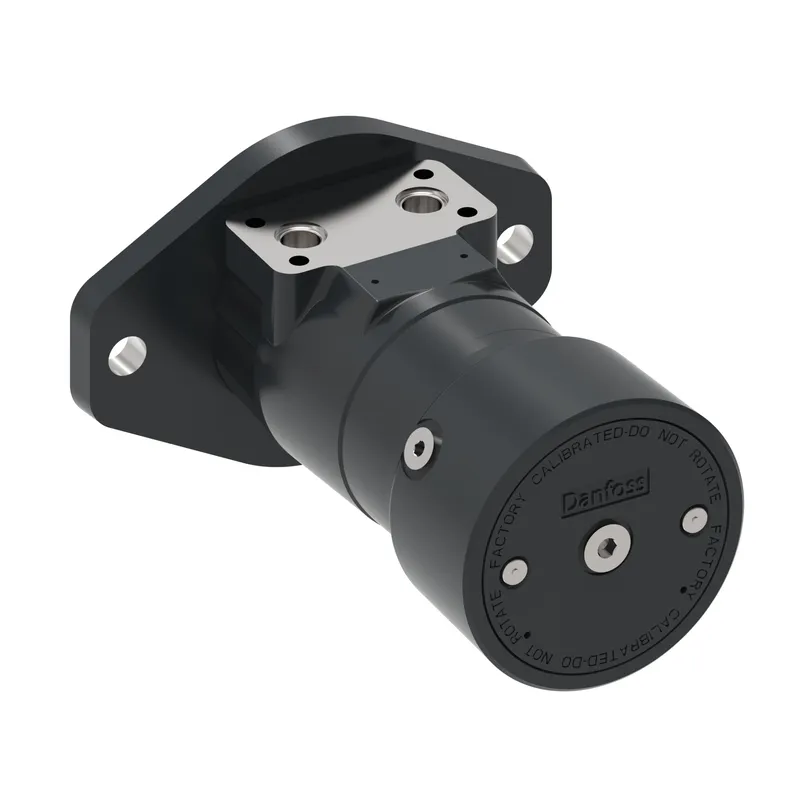

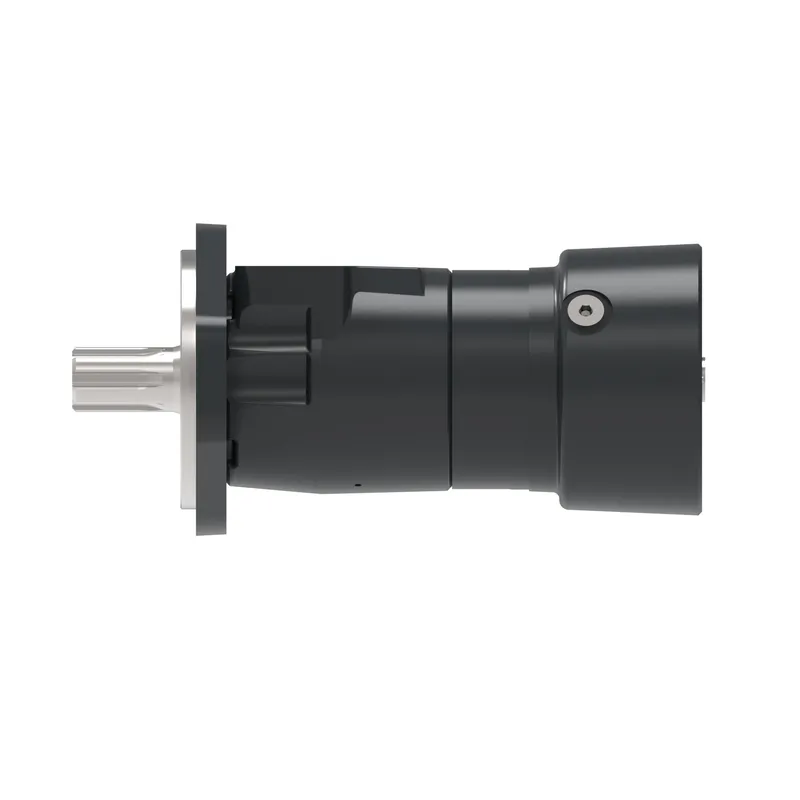

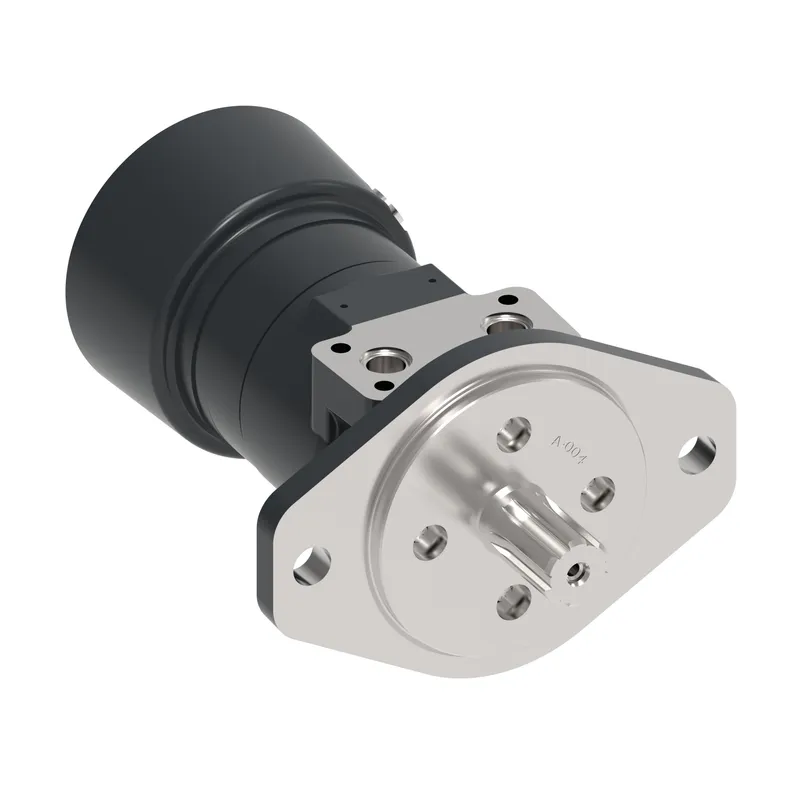

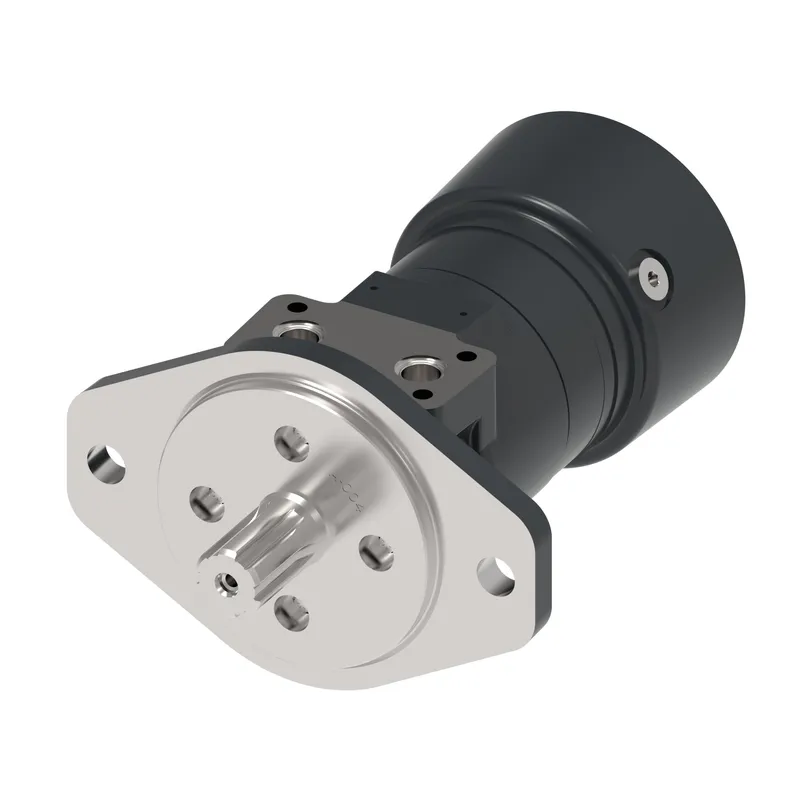

MOTOR-ORBITAL,T BR SERIES 100 [6.2], MTB062DA02AC00A0000000000AA00B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 185-2153-002 be shipped?
185-2153-002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 185-2153-002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 185-2153-002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 185-2153-002, subject to availability and destination.
Danfoss MOTOR-ORBITAL,T BR SERIES 100 [6.2], MTB062DA02AC00A0000000000AA00B, manufacturer part number 185-2153-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MTB062DA02AC00A0000000000AA00B |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Motor size | 100 |
| Geometric displacement [cm3/r [in3/r]] | 102 [6.2] |
| Motor type | Motor - Brake |
| Motor function | Brake - Low release pressure |
| Mounting flange type | 2 Bolt - B |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 101.6 x 6.1, 146.1, 14.4 [4.00 x 0.24, 5.75, 0.57] SAE B |
| Shaft type | Splined |
| Shaft dimension | Dia. 1 inch, SAE 6B, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main port thread type | Manifold |
| Main port style | Sideport - aligned |
| Main port dimension | 0.500 inch drilled hole, 4 x 5/16 - 18 UNC-2B mounting threads |
| Drain Port Dimension | None |
| Brake Release Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring Port |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | No data available |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | 2 |
| Brand | Danfoss |
| Sub brand | Char-Lynn |
