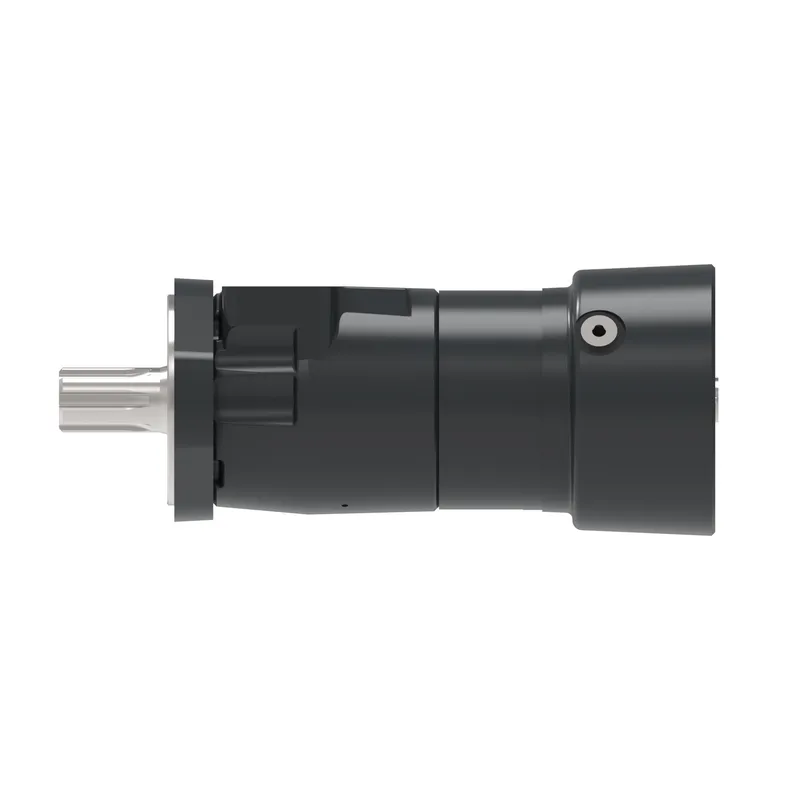

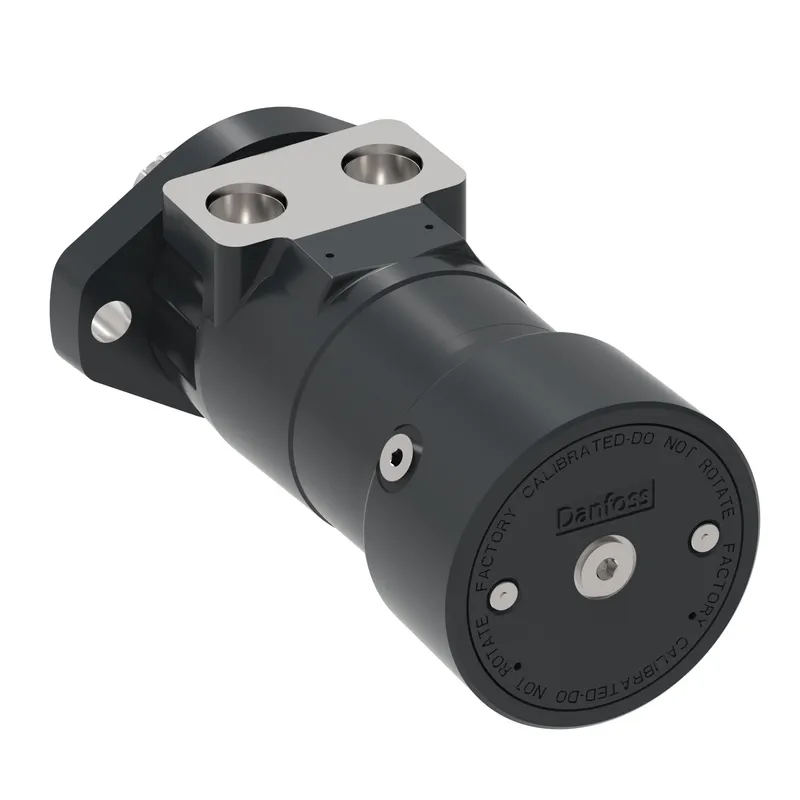

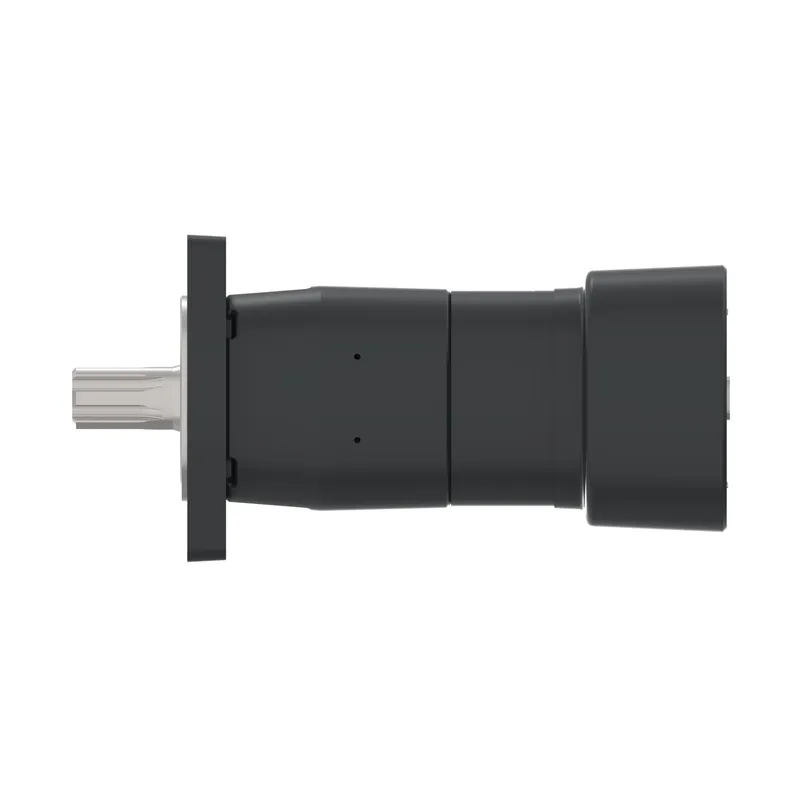

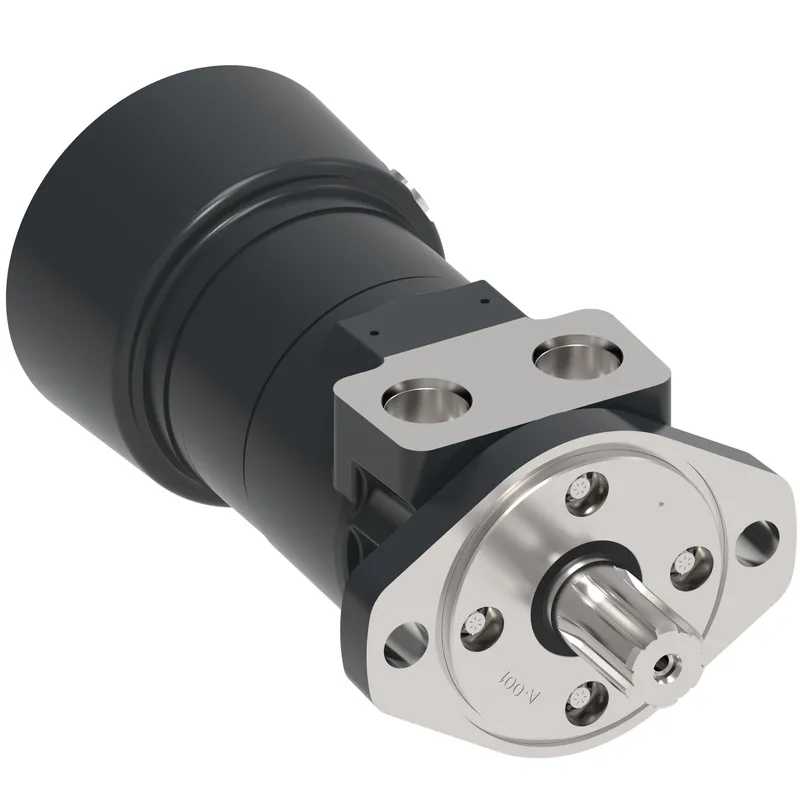

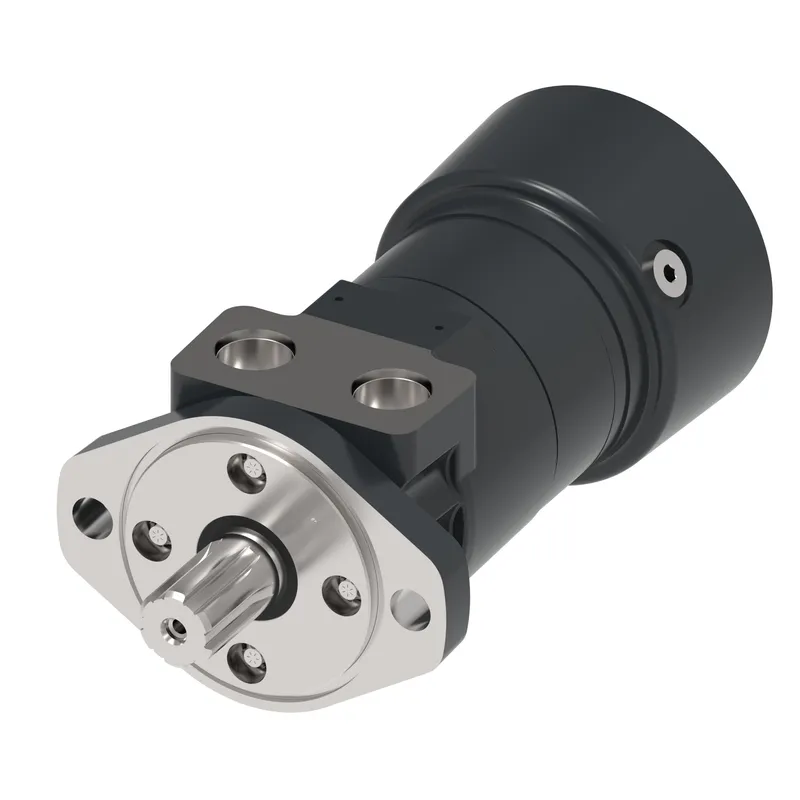

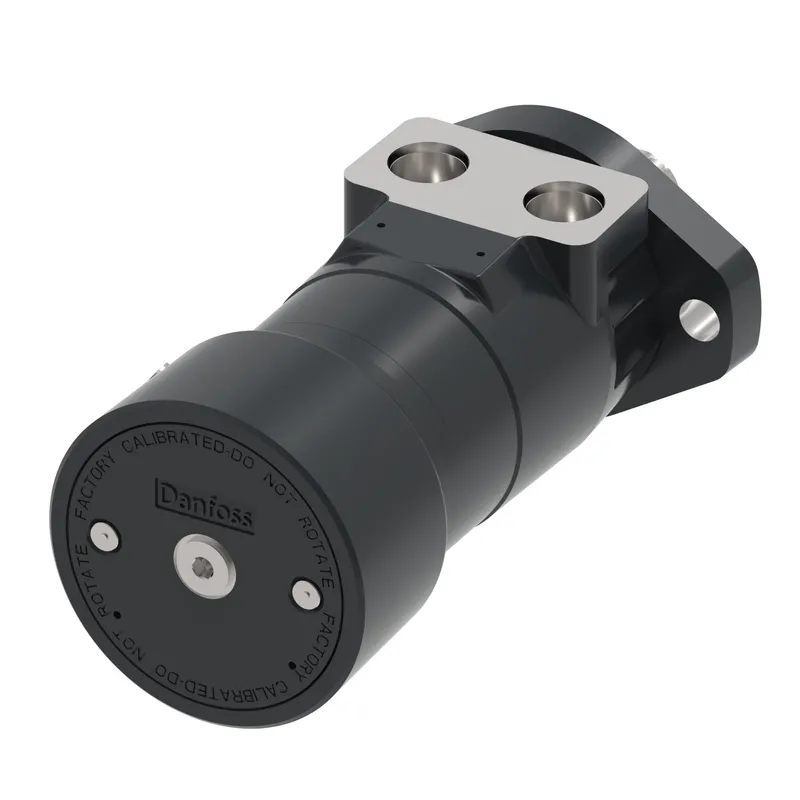

MOTOR-ORBITAL,T BR SERIES 155 [9.6], MTB096AA01AA00A0000000000AA00B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Danfoss orbital motor quick selector |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 185-2005-002 be shipped?
185-2005-002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 185-2005-002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 185-2005-002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 185-2005-002, subject to availability and destination.
Danfoss MOTOR-ORBITAL,T BR SERIES 155 [9.6], MTB096AA01AA00A0000000000AA00B, manufacturer part number 185-2005-002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Model Code | MTB096AA01AA00A0000000000AA00B |
| Motor Series | T Series |
| Valve system | Spool valve |
| Orbital gearwheel set type | Geroler |
| Mounting type | 2 bolt std 82.50 (3.248) dia. x 3.05 (.120) pilot, 13.59 [.535] dia. mounting holes on 106.35 [4.187] dia. b.c. |
| Motor size | 160 |
| Port Type | .875-14 unf-2b sae o-ring ports |
| Geometric displacement [cm3/r [in3/r]] | 158 [9.6] |
| Motor type | Motor - Brake |
| Motor function | Brake - Low release pressure |
| Mounting flange type | 2 Bolt - A |
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] | 82.5 x 3.1, 106.4, 13.6 [3.25 x 0.12, 4.19, 0.54] |
| Shaft type | Straight |
| Shaft dimension | Dia. 1 inch, 1/4 - 20 UNC-2B thread in shaft end |
| Shaft Key | Woodruff key |
| Main port thread type | UN / UNF |
| Main port style | Sideport - aligned |
| Main port dimension | 7/8 - 14 UNF-2B SAE O-Ring port |
| Drain Port Dimension | None |
| Brake Release Port Dimension | 7/16 - 20 UNF-2B SAE O-Ring Port |
| Painted | Yes |
| Paint information | Primer, Black, Low gloss |
| Special features hardware | None specified |
| Special Features Assembly | Standard |
| Dust seal | Standard |
| Shaft Seal | NBR - Standard |
| Seal Kit | No data available |
| Front bearing type | Journal bearing |
| Rear bearing type | Journal bearing |
| Orbital gearwheel set | Standard |
| Check valve function | No |
| Hydraulic valve function | None |
| Sensor | None |
| Packaging | No data available |
| Name Tag | Danfoss name tag |
| Design code | Two (2) |
| Brand | Danfoss |
| Case flow options | None specified |
| Customer identification | None specified |
| Displacement | 157 cm3/r [9.6 in3/r] |
| Geroler options | Standard |
| Output shaft type | 25.4 (1.00) dia. straight with woodruff key, .250-20 unc-2b hole in shaft end |
| Paint packaging | Primer low gloss black |
| Product | Motor |
| Seal options | Standard seals |
| Series | T series motor w/brake |
| Shaft options | None |
| Special assembly instructions | None specified |
| Speed sensor | None |
| Sub brand | Char-Lynn |
| Valve options | None |
