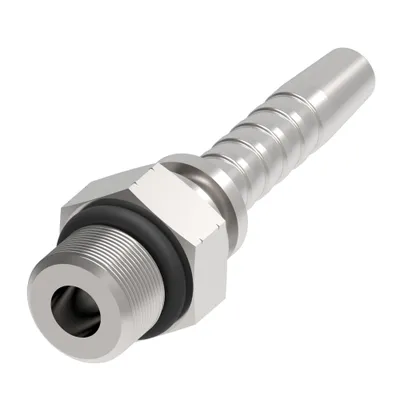

HOSE NIPPLE ASSY, 2P/6, ORB-M/6,-S

Name: HOSE NIPPLE ASSY, 2P/6, ORB-M/6,-S
Brand: Danfoss (Drives)
SKU: 16011-06-06PC3Z

MPN: 16011-06-06PC3Z · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Braided hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 16011-06-06PC3Z be shipped?

16011-06-06PC3Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16011-06-06PC3Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16011-06-06PC3Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16011-06-06PC3Z, subject to availability and destination.

Danfoss HOSE NIPPLE ASSY, 2P/6, ORB-M/6,-S, manufacturer part number 16011-06-06PC3Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.070
A dimension MM	52.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hoses	EC115, EC118, EC215
Construction Style	Crimp
End connection torque	24-26 lb-ft(33-35 Nm)
End size 1	-6
End Type 1	Male ORB ISO 11926-2
Finish plating	Zinc plating
Hex size 1 MM	17.000
Hose cut off factor IN	0.890
Hose cut off factor MM	22.500
Hose size	-6
Product height mm	17.000
Product length mm	52.500
Product material	Carbon steel
Product width mm	17
Series	Winner 2-Piece
Thread size 1	9/16-18 UNF
